About this system

What it is, and what it is for

Power your home with the ROCKSOLAR 10kW Hybrid Solar System, featuring the Growatt SPH 10000TL-HU-US hybrid inverter, 27 × JA Solar JAM54D41 450W bifacial solar panels, Tigo rapid shutdown, PV wiring, and your choice of 14.34kWh or 20.48kWh nominal battery storage.

With a 12.15kW solar array, this system is designed for grid-connected solar, home battery backup, and greater energy independence. The Growatt SPH supports DC-coupled, AC-coupled, and retrofit applications, along with generator charging.

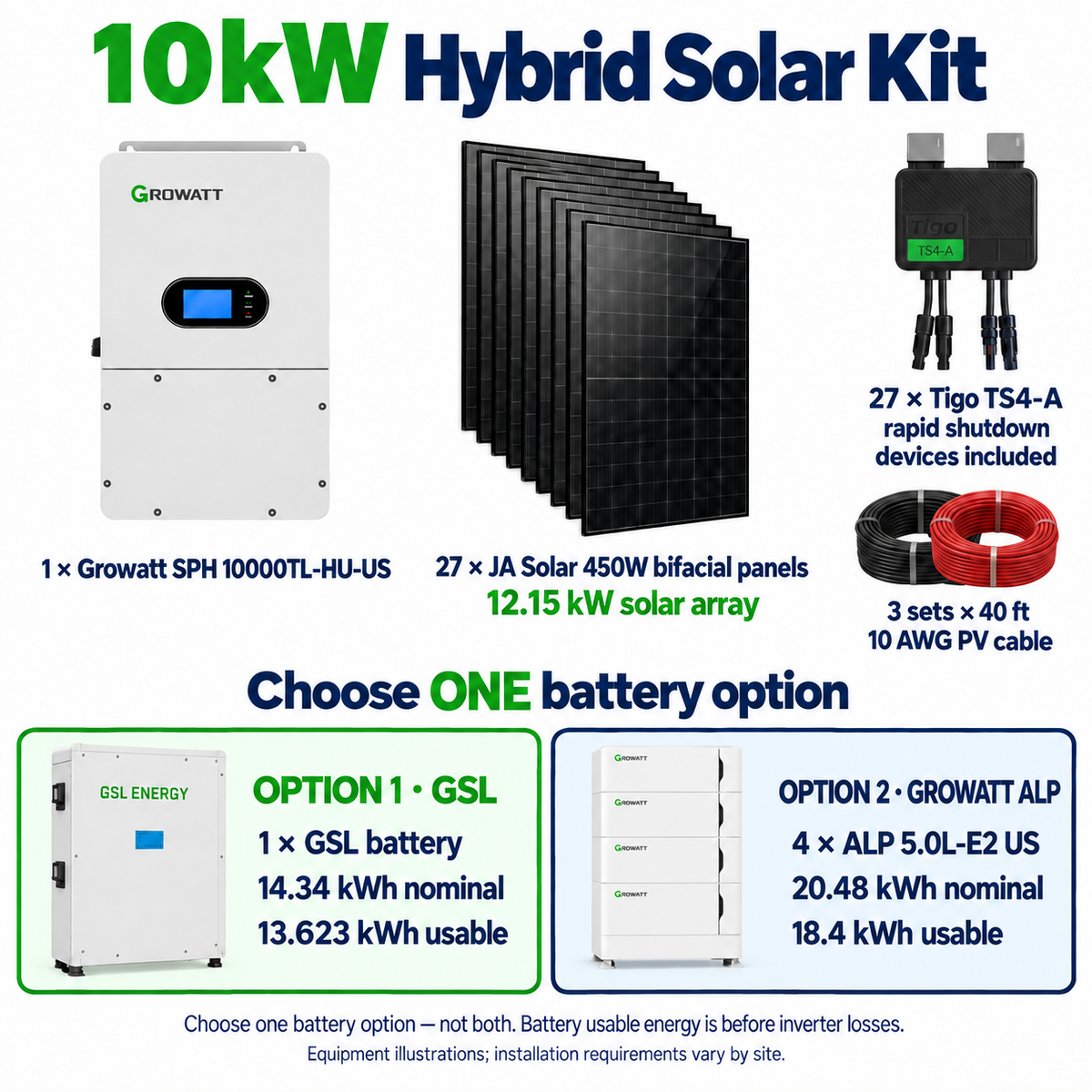

What's Included

1 × Growatt SPH 10000TL-HU-US 10kW Hybrid Inverter
27 × JA Solar JAM54D41 450W Bifacial Solar Panels — 12.15kW Total
27 × Tigo TS4-A Rapid Shutdown Devices
3 Sets × 40 ft 10 AWG PV Cable
Choice of battery storage:
- 1 × GSL 14.34kWh LiFePO₄ Battery, or
- 4 × Growatt ALP 5.0L-E2 US 5.12kWh Batteries — 20.48kWh Total

Key Features

12.15kW Bifacial Solar Array – High-efficiency solar generation for residential applications
10kW Hybrid Inverter – Provides grid-tied operation and battery backup capability
3 MPPT Trackers – Ideal for managing multiple PV strings and maximizing solar production
Battery Backup Ready – Supports 40–60V batteries with up to 200A charging and discharging current
Tigo Rapid Shutdown Included – 27 module-level rapid shutdown devices for enhanced rooftop safety
PV Cable Included – Three 40 ft sets of 10 AWG PV cable for convenient array-to-inverter connections
120/240V Split-Phase Output – Designed for North American residential electrical systems
Fast Backup Transfer – Less than 10ms switching time for supported backup loads
Generator Support – Allows battery charging from a compatible generator

Flexible Battery Storage Options

Choose the battery capacity that best fits your home's backup needs.

14.34kWh GSL Battery Option
A compact battery-storage solution for homeowners looking for solar self-consumption and essential home backup.

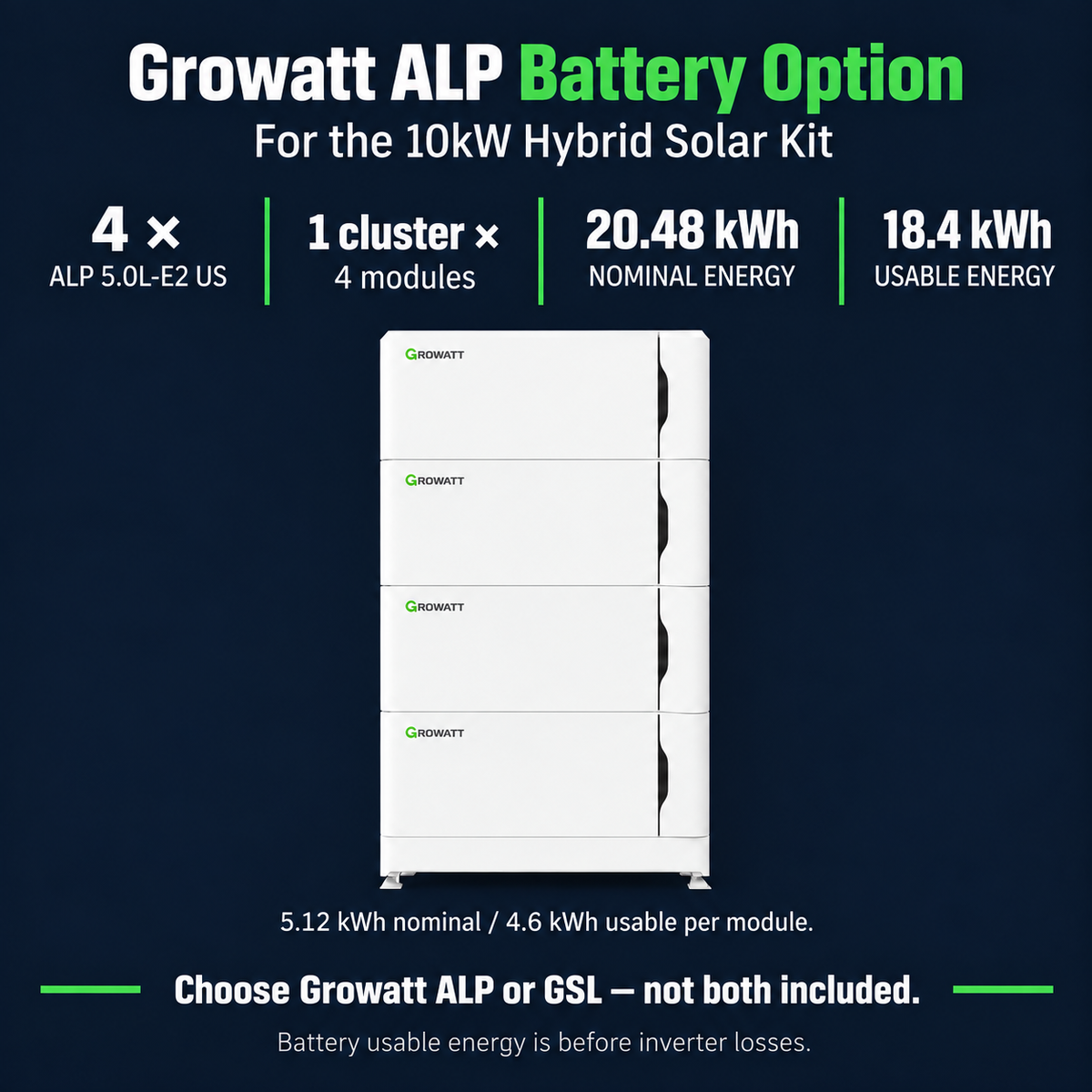

20.48kWh Growatt ALP Battery Option
Four 5.12kWh Growatt ALP 5.0L-E2 US batteries provide 20.48kWh of nominal storage, making this option ideal for larger backup loads and longer outage protection.

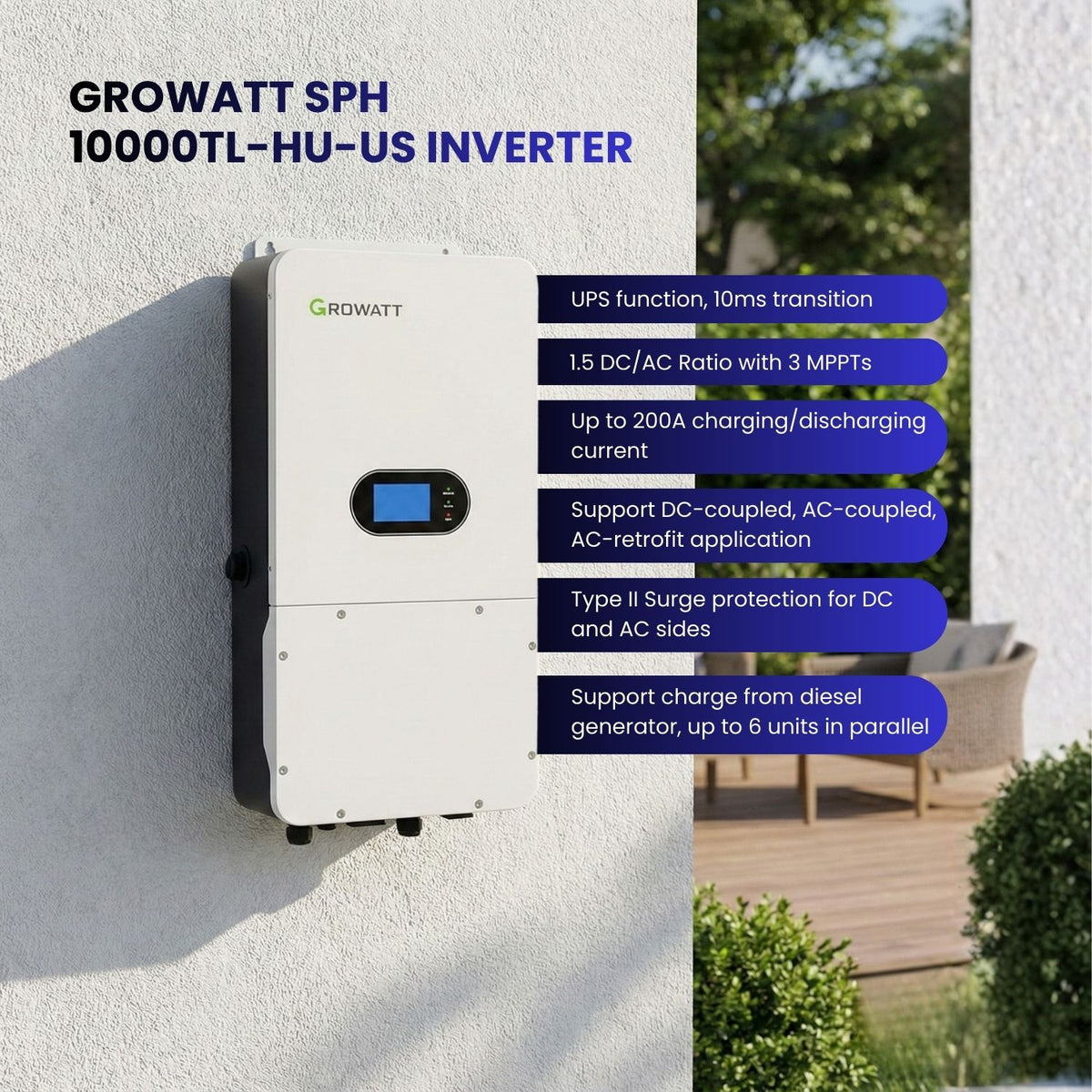

Growatt SPH 10000TL-HU-US Hybrid Inverter

The Growatt SPH 10000TL-HU-US combines solar, battery, grid, and generator capability in one residential hybrid inverter.

Key specifications include:

Rated AC Output: 10,000W
Maximum Recommended PV Power: 15,000W
MPPT Trackers: 3
Maximum DC Voltage: 525V
MPPT Range: 150–450V
Battery Voltage: 40–60V
Maximum Charge/Discharge Current: 200A
Continuous Battery Power: 10,000W
Peak Efficiency: 97.5%
Protection Rating: IP65 / NEMA 4
Warranty: 10 Years

Ideal for Home Solar & Battery Backup

This 10kW hybrid solar kit with battery storage is ideal for homeowners looking to reduce grid electricity consumption, store excess solar energy, and maintain backup power during utility outages.

With 12.15kW of bifacial solar panels, a 10kW Growatt hybrid inverter, Tigo rapid shutdown, PV wiring, and up to 20.48kWh of nominal battery storage, the system provides a powerful foundation for a modern residential solar and energy-storage installation.

Professional installation is recommended. Racking, AC protection, permits, utility interconnection, load-panel configuration, and final electrical requirements may vary by project and local code.

Nominal and Usable Battery Energy

Option	Nominal energy	Usable energy
1 × GSL 14.34 kWh	14.34 kWh	13.623 kWh
4 × Growatt ALP 5.0L-E2 US	20.48 kWh	18.4 kWh

Manufacturer figures: GSL recommended discharge energy is 13.623 kWh per module at 95% DoD; Growatt ALP E2 US usable energy is 4.6 kWh per module. These are battery-side values before inverter losses. Battery options are alternatives, not both included. Actual output depends on battery limits and operating conditions.

What ships

6 components, and one thing that isn't here

Each one is a product we sell on its own, so you can read its full listing, and replace or add to it later.

Racking and mounting are not included.

Rails, roof hooks, ground-mount posts and clamps depend on the roof or ground they go on, so no system ships with them. They are sold separately, and the finder adds the right pack for your surface when it sizes a system.

Documentation

Published before you buy. No email required.

The wiring diagram and the commissioning record are drawn from this system's own figures.

The wiring diagram and commissioning record are for customer reference only. They are not a stamped design. Installation, grounding and any grid connection must be carried out by a licensed electrician, and a professional engineer's review is required where your jurisdiction calls for one.

Full specification

Every number, by component.

The figures the manufacturer publishes. The datasheet above is the reference if the two ever differ.

Growatt SPH 10000TL-HU-US 10kW Hybrid Inverter	Details
Maximum DC Input	15,000W
MPPT Voltage Range	150V - 450V / 370V
Number of MPPTs	3
Maximum Charging and Discharging Current	200A
Continuous Charging and Discharging Power	10,000W
Battery Voltage Range	40V - 60V
AC Output Power	Rated Power: 10,000W; Max. Apparent Power: 10,000VA; Nominal AC Voltage: 120V/208V, 120V/240V Split
Efficiency	Peak: 97.5%; MPPT Efficiency: ≥99.5%
Cooling	Smart cooling
Communication Interfaces	RS485/CAN/USB; Optional: WIFI/4G cellular
Protection Devices	Type II Surge Protection (DC and AC sides), AFCI, Anti-islanding, Ground fault monitoring, Grid monitoring, Residual-current monitoring unit
Physical	Dimensions (W / H / D): 440/855/256mm; Weight: 48.84kg
Operating Environment	Temperature: -25°C to +60°C with derating above 45°C; Noise Emission: ≤ 30 dB(A)
Warranty	10 Years
Compliance	IEEE1547, CA RULE21, RULE14(HECO), UL1741, UL1741SA/SB, CSA C22.2, PREPA, UL1699B, UL1741 CRD, FCC Part15 Class B, Sunspec

Battery option 1 — GSL Energy (1 × 14.34 kWh)	Details
Model	GSL051280A-B-GBP2F
Included quantity	1
Included nominal energy	14.34 kWh
Included usable energy	13.623 kWh (manufacturer recommended discharge energy at 95% DoD)
Battery chemistry	LiFePO₄
Nominal voltage per battery	51.2 V
Operating voltage per battery	46–56 V
Capacity per battery	280 Ah
Nominal energy per battery	14.34 kWh
Recommended discharge energy per battery (95% DoD)	13.623 kWh
Recommended charge / discharge current per battery	100 A
Maximum charge / discharge current per battery	150 A
Peak charge / discharge current per battery	200 A (2 minutes at 25°C)
Maximum continuous discharge power per battery	7.68 kW
Cycle life	≥8,500 cycles (25 ± 2°C, 0.5C/0.5C, 80% end-of-life capacity)
Operating temperature	Charge: 0°C to 55°C; discharge: −20°C to 55°C
Installation	Ground / outdoor
Ingress protection	IP65
Scalability	Manufacturer maximum: 16 units in parallel; not the included quantity
Communication interfaces	CAN 2.0, RS485, WiFi
Dimensions per battery (W × H × D)	700 × 1050 × 200 mm
Weight per battery	Approximately 134.5 kg (296 lb)
Warranty	10 years
Certifications listed in manufacturer datasheet	UL1973, UL9540A, UL9540, CB-IEC62619, CE-EMC, UN38.3, MSDS

Battery-side energy is before inverter losses. Battery current and power ratings above are per unit; actual system output is limited by the inverter, battery configuration and operating conditions. Battery certifications do not by themselves establish certification of the complete installed system.

Battery option 2 — Growatt ALP 5.0L-E2 US LiFePO₄ Battery (4 × 5.12kWh = 20.48kWh nominal)	Details
Battery Type	LiFePO4 (Lithium Iron Phosphate)
Nominal Voltage	51.2 V
Operating Voltage Range	46.4 – 57.6 V
Included ALP nominal energy	20.48 kWh (four modules)
Included ALP usable energy	18.4 kWh (four modules)
Maximum charge / discharge current per four-module battery cluster	220 A battery rating; actual current is limited by the connected inverter and operating conditions
Manufacturer expansion limit per battery cluster	Up to 8 modules; expansion is not included and requires a compatible system design
Installation Type	Wall-mounted / Floor-mounted
Communication	CAN
Ingress Protection	IP66 / NEMA 4X
Operating Temperature	-10°C to +50°C
Cooling	Natural Convection
Battery Management System (BMS)	Integrated Smart BMS
Monitoring Parameters	SOC, Voltage, Current, Temperature
Warranty	10 Years
Included battery configuration	1 four-module battery cluster; 4 modules total
Energy per module	5.12 kWh nominal / 4.6 kWh manufacturer-stated usable
Energy per four-module cluster	20.48 kWh nominal / 18.4 kWh usable
Maximum continuous discharge power per four-module cluster	11 kW battery rating, not inverter AC output; temperature and state of charge can cause derating

JA Solar JAM54D41 LB 450W N-Type Double Glass Bifacial Solar Panel	Details
Rated Power (as supplied)	450W
Brand	JA Solar
Model	JAM54D41 LB
Power Output Range	430W – 455W
Cell Technology	N-Type Bycium+ Mono-Crystalline
Module Type	Double Glass Bifacial Half-Cell (16BB)
Number of Cells	108 (6 × 18)
Maximum Module Efficiency	Up to 22.5%
Bifaciality Ratio	Approx. 80%
Power Tolerance	0 ~ +3%
Module Dimensions	1762 × 1134 × 30 mm
Module Weight	22 kg
Front Glass	1.6 mm Heat-Strengthened Glass
Rear Glass	1.6 mm Heat-Strengthened Glass
Frame	Anodized Aluminum Alloy (Black, 30 mm)
Junction Box	IP68 Rated with MC4-EVO2 Connectors
Maximum System Voltage	1500 V DC
Maximum Series Fuse	30 A
Operating Temperature	−40°C to +85°C
Temperature Coefficient (Pmax)	−0.29% / °C
Mechanical Load (Front)	5400 Pa
Mechanical Load (Rear)	2400 Pa
Product Warranty	12 Years
Performance Warranty	30-Year Linear Power Warranty (≤ 0.4% annual degradation)
Country of Origin	China

Nominal and Usable Battery Energy

Option	Nominal energy	Usable energy
1 × GSL 14.34 kWh	14.34 kWh	13.623 kWh
4 × Growatt ALP 5.0L-E2 US	20.48 kWh	18.4 kWh

Manufacturer figures: GSL recommended discharge energy is 13.623 kWh per module at 95% DoD; Growatt ALP E2 US usable energy is 4.6 kWh per module. These are battery-side values before inverter losses. Battery options are alternatives, not both included. Actual output depends on battery limits and operating conditions.

Common questions

Before you order.

If yours isn't here, ask an engineer. It costs nothing and it's the step most people skip.

Is the racking or mounting hardware included?

No. Rails, roof hooks, ground-mount posts and clamps depend on the roof or ground they go on, so no system ships with them. They are sold separately. The finder adds the right pack for your surface when it sizes a system, or ask us and we will match one to your roof.

Can I install it myself?

The equipment ships ready to connect, but the AC side, the grounding and any connection to the grid must be done by a licensed electrician. A grid-tied or hybrid system also needs a permit and your utility's interconnection approval before it is switched on. The wiring diagram and commissioning record we publish are for reference; they are not a stamped design, and a professional engineer's review is required where your jurisdiction calls for one.

Are the solar panels included?

Where the title names an array — “7.04 kW panels”, say — the panels are in the box and appear under What ships. A backup system whose title names no array, such as the Growatt whole-home and partial-home backup systems, is the inverter and battery only, and its listing says so. Panels for those are sold separately.

What is the difference between off-grid, grid-tie and hybrid?

An off-grid system has no utility connection: the battery carries the night and the generator input carries the dark days. A grid-tie system has no battery: it feeds your panel and the grid by day and goes dark in an outage. A hybrid system does both — it works with the grid and keeps a battery, and with its transfer switch it carries your essential circuits through an outage.

Which tax credits and incentives apply?

The 30% federal residential credit ended on 31 December 2025, and nothing on this page assumes it. Some states still run their own credits, sales-tax exemptions or generation payments; the savings estimate above lists the ones we know of for your state, and our tax credit guide explains what applies in 2026.

Can I charge from a generator?

Most off-grid inverters in the range have a generator input for charging on dark days; the specification table says whether this one does and at what current. A grid-tie inverter has no generator input. A hybrid system takes a generator through its transfer switch, if your electrician wires one in.

What if I'm not sure this is the right product?

Ask before you order. Send us what you need to run, or your pool or well figures, and an engineer will confirm the choice — it costs nothing. Or use the finder below, which sizes from what you actually run and shows its reasoning.
