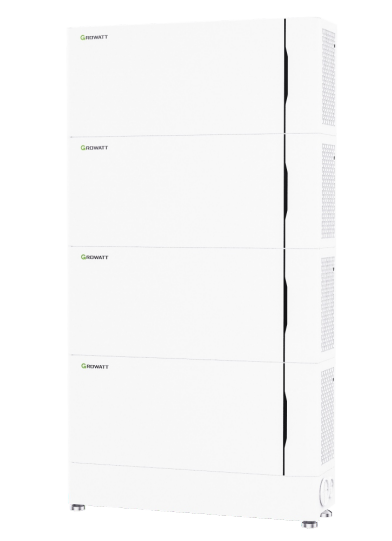

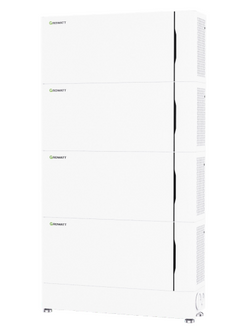

Growatt ALP LV-US 5kWh 48V LiFePO4 Battery
Flexible Energy Storage: Modular capacity options from 5kWh to 40kWh per system, with scalable expansion for larger energy storage needs.
High Current Performance: Supports up to 220A continuous charge/discharge current for reliable battery operation in demanding applications.
Safe LiFePO4 Chemistry: Built with cobalt-free lithium iron phosphate (LFP) cells for excellent safety, stability, and long service life.
Modular Stacked Design: Easy-to-install stacked battery structure simplifies system setup and future expansion.
Usable Energy Output: Provides high usable capacity with up to 36.8kWh usable energy in the 40kWh configuration.
Wide Voltage Range: Operates at a nominal 51.2V with an operating voltage range of 46.4V to 57.6V.
Indoor and Outdoor Ready: Rated IP66 / NEMA Type 4X for strong protection in a wide range of installation environments.
Flexible Installation Options: Supports both wall-mounted and floor installation depending on project requirements.
Smart BMS Monitoring: Monitors SOC, system voltage, current, cell voltage, cell temperature, and PCBA temperature for optimized battery management.
Reliable Communication: Uses CAN communication for stable integration with compatible inverter systems.
Parallel Scalability: Supports up to 8 packs in parallel for larger residential or commercial energy storage systems.
Long-Term Warranty: Backed by a 10-year manufacturer warranty for dependable long-term performance.
Growatt ALP LV-US 5kWh 48V LiFePO4 Battery - 1 Module: 5kWh is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Speak To a Solar Specialist
Growatt ALP LV-US 5kWh 48V LiFePO4 Battery
Description
Description
Growatt ALP LV-US Modular Battery is a high-performance energy storage solution designed for residential and small commercial solar systems. Built with advanced LiFePO4 battery technology, this system delivers safe, reliable, and scalable energy storage for modern power needs.
The modular design allows flexible capacity expansion, making it easy to adapt the system as your energy requirements grow. With high current capability and intelligent battery management, the ALP LV-US ensures efficient energy storage and stable performance in various operating conditions.
Engineered for durability and versatility, the battery features a weather-resistant enclosure suitable for both indoor and outdoor installations. Its integrated BMS continuously monitors system performance, ensuring optimal operation, enhanced safety, and long service life.
Ideal for backup power, off-grid, and hybrid solar systems, the Growatt ALP LV-US battery provides dependable energy storage with advanced safety features and seamless integration with compatible inverters.
SPECIFICATIONS
SPECIFICATIONS
Technical Specifications
| Battery Specifications | |
|---|---|
| Battery Type | LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage | 51.2 V |
| Operating Voltage Range | 46.4 – 57.6 V |
| Capacity Range | 5 kWh – 40 kWh |
| Usable Energy (Max) | Up to 36.8 kWh |
| Max Charge / Discharge Current | 220 A |
| System Configuration | |
| Expandable Units | Up to 8 units in parallel |
| Installation Type | Wall-mounted / Floor-mounted |
| Communication | CAN |
| Environmental & Mechanical | |
| Ingress Protection | IP66 / NEMA 4X |
| Operating Temperature | -10°C to +50°C |
| Cooling | Natural Convection |
| Monitoring & Protection | |
| Battery Management System (BMS) | Integrated Smart BMS |
| Monitoring Parameters | SOC, Voltage, Current, Temperature |
| Warranty | |
| Warranty | 10 Years |
