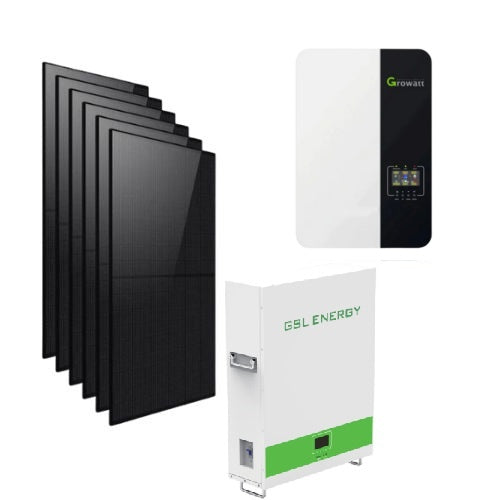

12 KW Split Phase 120/240Vac Off-Grid Solar System

$9,399.99 ~~$19,999.99~~

Shipping calculated at checkout.

Complete Kit: 12kW inverter, 2x 5kW batteries, and 2800W solar panels.
Enhanced Storage: 10kW total with two 5kW batteries for reliable backup.
Efficient Collection: 2800W array of 14x 200W high-efficiency panels.
Advanced Inverter: 12kW inverter for efficient power conversion.
Scalable Storage: Modular batteries for easy expansion.
Durable Components: Designed to endure various conditions.
Easy Installation: Complete gear for adaptable setup.
Smart Management: WIFI/GPRS monitoring and control. (WIFI Module Included)
Long-lasting: Extended life with comprehensive warranties.
Sustainable: Reduces dependence on non-renewable energy.
Customizable: Add more panels or batteries as needed.
All-Weather: Effective in diverse conditions year-round.

Free Shipping

Orders Over $100? Shipping's On Us!

Hassle Free Warranty

Effortless Warranty for Your Ease.

Lifetime Customer Support

Endless Support, Because You Matter.

Description

Introducing the Advanced Home Solar Storage Kit

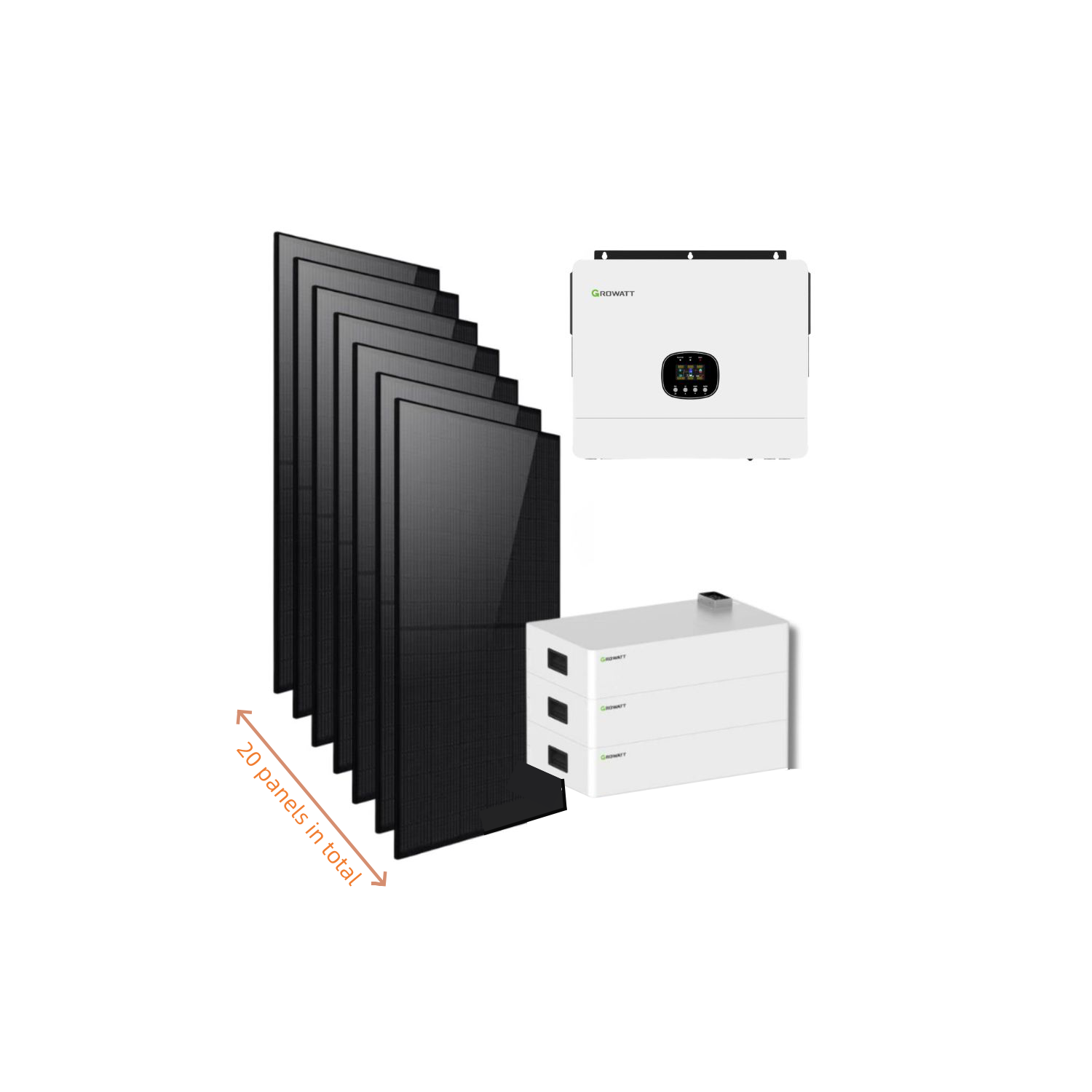

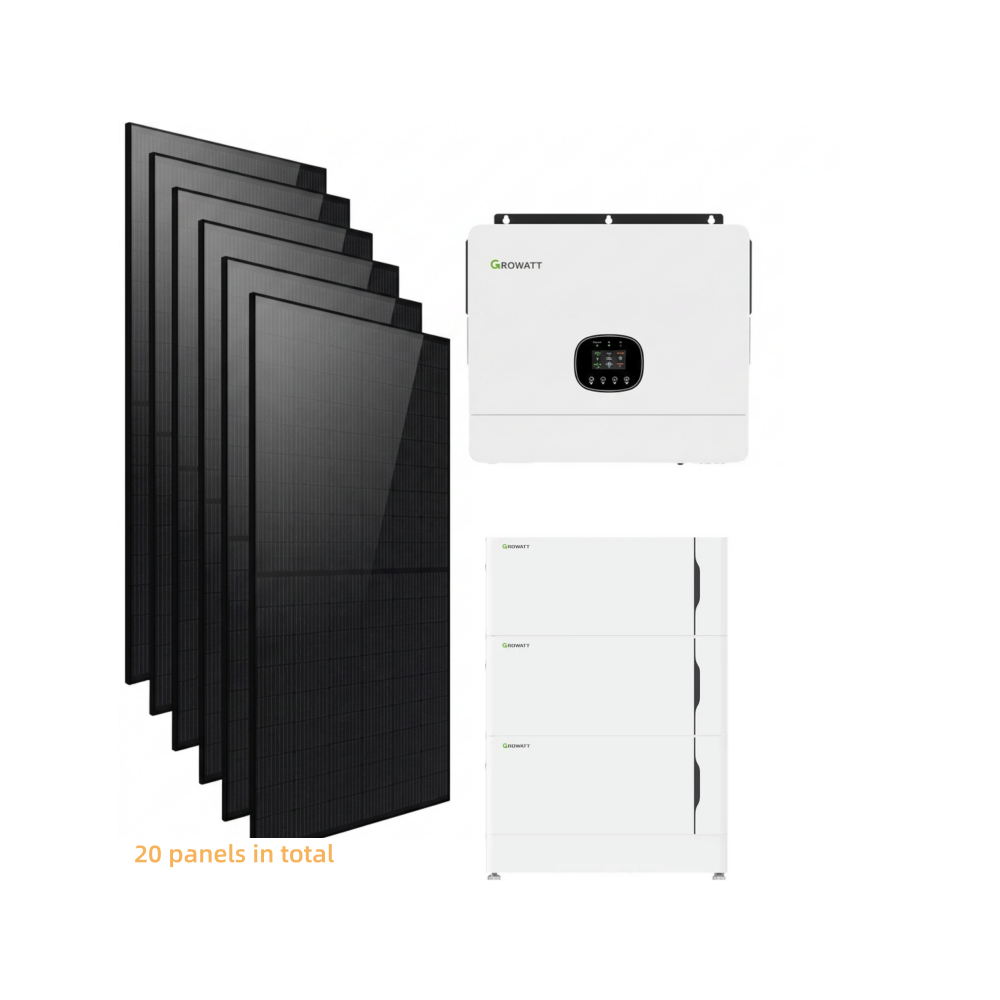

10kW Energy Storage with 12kW Inverter + 2800W Solar Array, a premium energy solution for efficiency, reliability, and high performance. This kit features GROWATT's SPF 12000T DVM-US MPV, a 12kW inverter, two 5kW batteries for a total of 10kW storage, and a robust 2800W solar panel array of 20x 200W panels.

Key Highlights

Growatt AXE 5.0L-C1 5kW Battery (x2):

Modular 5kWh capacity, expandable up to 400kWh
Cobalt-free LiFePO4 battery cells for safety and longevity
Quick, cable-free stacking installation
Remote management for firmware updates and diagnostics
Integrated BMS for real-time monitoring and protection
10-year warranty

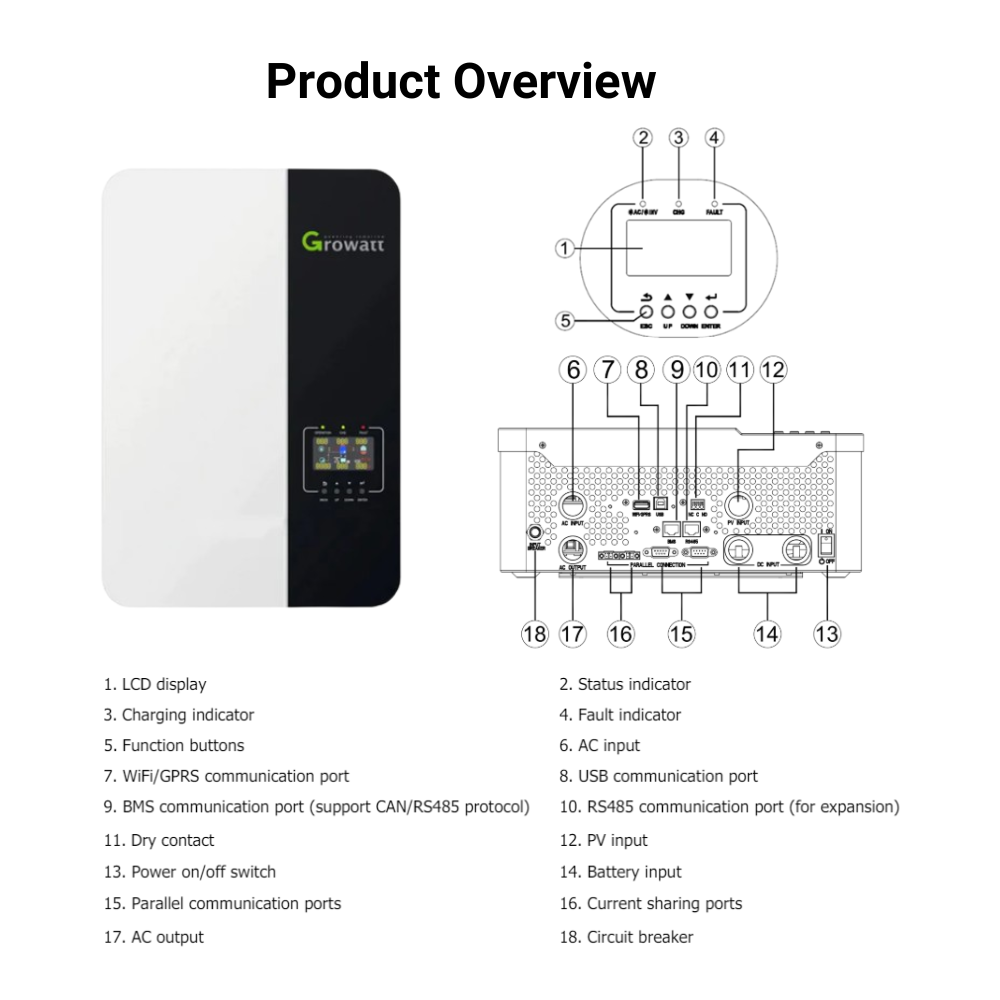

Growatt SPF 12000T DVM-US MPV Inverter:

Robust 12kW power output for residential and commercial needs
Integrated MPPT technology for maximum efficiency
Supports PV input voltage up to 250VDC
Operates with or without a battery
Durable in environments from 0°C to 50°C
Smart connectivity for easy monitoring and management
Quick transfer switching to minimize downtime
Pure sine wave output for sensitive electronics

ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel (x14):

High-efficiency monocrystalline cells
200W power output per panel, total 2800W
Durable aluminum frame and anti-reflective glass
Easy installation with pre-drilled mounting holes
Bypass diodes to minimize shading impact
25+ years service life, 10-year warranty
Eco-friendly power generation

With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy reliable power. Experience modern solar technology and battery storage in one seamless package.

SPECIFICATIONS

Growatt AXE 5.0L-C1 5kW Battery	Details
Model	Growatt AXE 5.0L-C1
Energy Capacity	5.0kWh
Max Charge/Discharge Power	3kW
Max Charge/Discharge Current	60A
Dimensions	650 x 350 x 165mm (W x D x H)
Weight	42kg
Nominal Voltage	51.2V
Warranty	10 years
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Operating Voltage Range	48 - 57.6V
Installation	Floor installation
Operation Temperature	0°C-50°C/32-122°F
DoD	92%
Parallel Capability	Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh)
Communication Port	CAN/RS485
Performance Warranty	10 years
Certification	CE, ROHS, UL1973+FCC, UN38.3 + IP65

Growatt Off-Grid Storage SPF 12000T DVM-US	Details
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
Inverter Output (Rated Power)	12KW
Surge Rating	36KW
Waveform	Pure sine wave/ same as input (bypass mode)
Nominal Output Voltage RMS	104-110-115-120/208-220-230-240VAC(optional)
Output Frequency	50Hz/60Hz +/-0.5 Hz
Inverter Efficiency (Peak)	88%
Transfer Time	10ms
Solar Charger (Maximum PV Charge Current)	60A
Maximum PV Array Power	7000W
AC Input Voltage	240VAC
Max. Charging Current	100A
Protection Degree	IP20
Dimensions (W/H/D)	360/650/225mm
Weight	75kg
Operating Environment (Temperature Range)	0°C to 50°C
Warranty	Complies with UL STD.1741, CSA STD CSA C22.2 No.107.1

ROCKSOLAR Black Diamond 200W 12V Monocrystalline Rigid Solar Panel	Details
Panel Type	Monocrystalline
Power Output	200W
System Voltage	12V
Cell Efficiency	20-22%
Frame Material	Aluminum
Dimensions	1480mm x 670mm
Weight	approx. 25-30 lbs
Operating Temperature	-40°C to +85°C
Waterproof Rating	IP65
Front Glass	High light transmittance, low-iron tempered glass
Bypass Diodes	Integrated
Connectors	MC4
Cable Length	Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations	Pre-drilled
Service Life	25 years or more
Warranty	10 years

INCLUDES

PDF DOWNLOADS

User Manual

User Manual 2
