12 KW Premium Split Phase 120V/240Vac Off-Grid Solar System
Description
Description

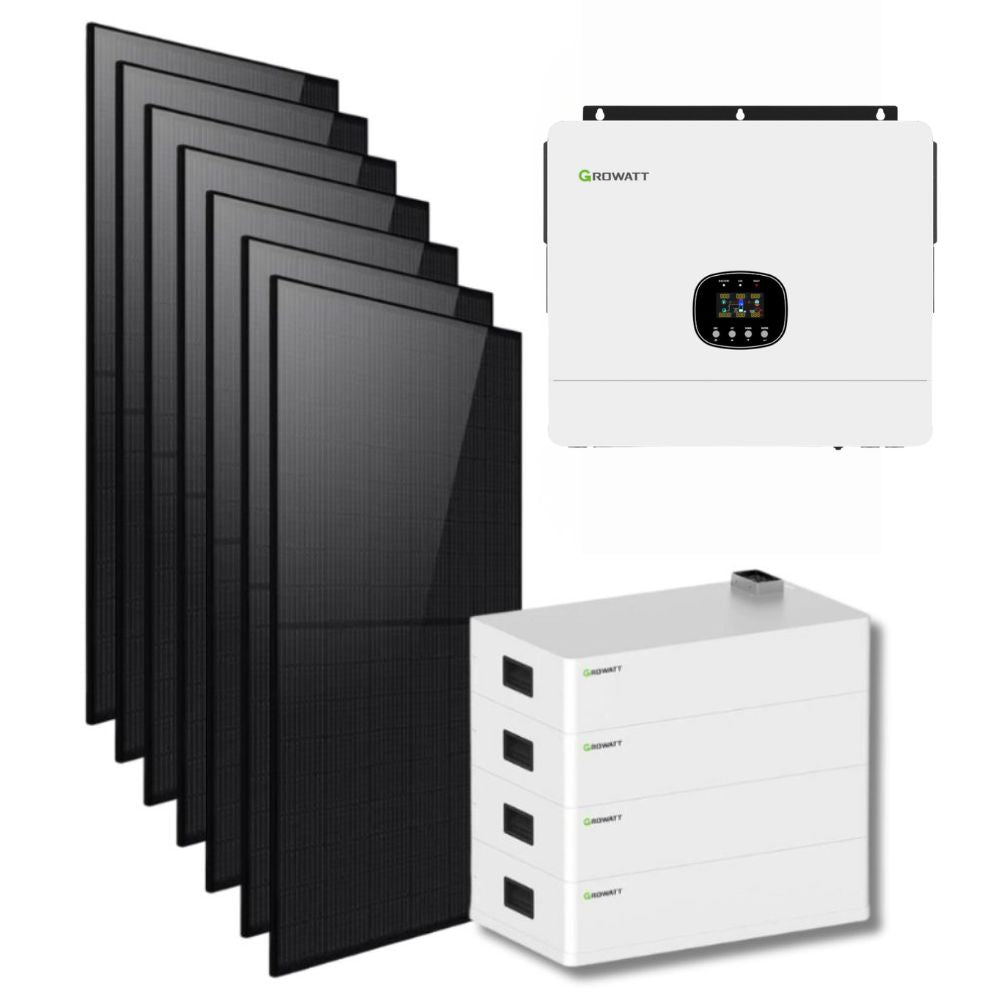

Introducing the Advanced Home Solar Storage Kit

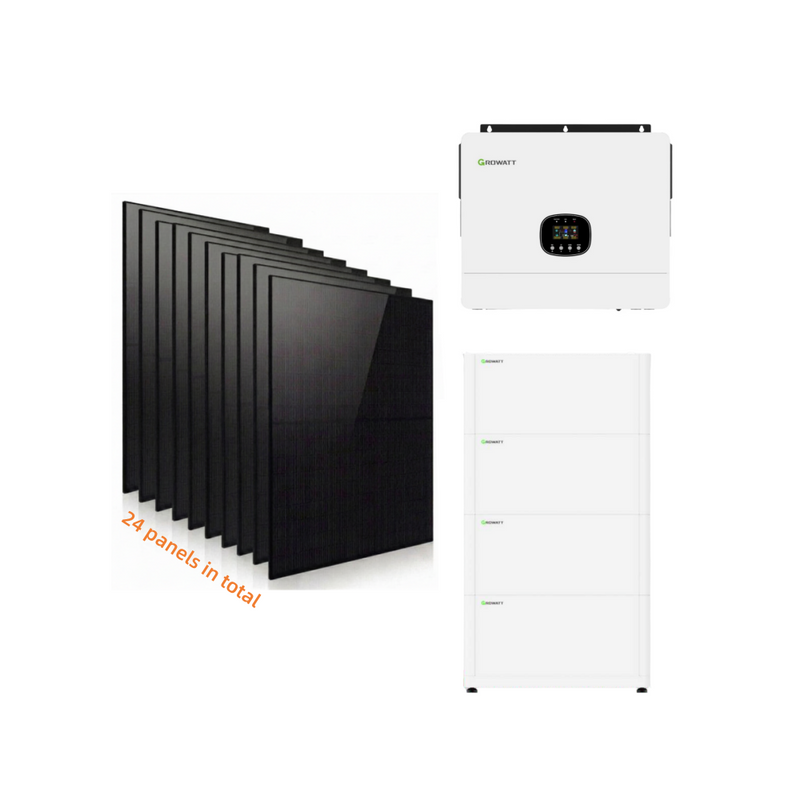

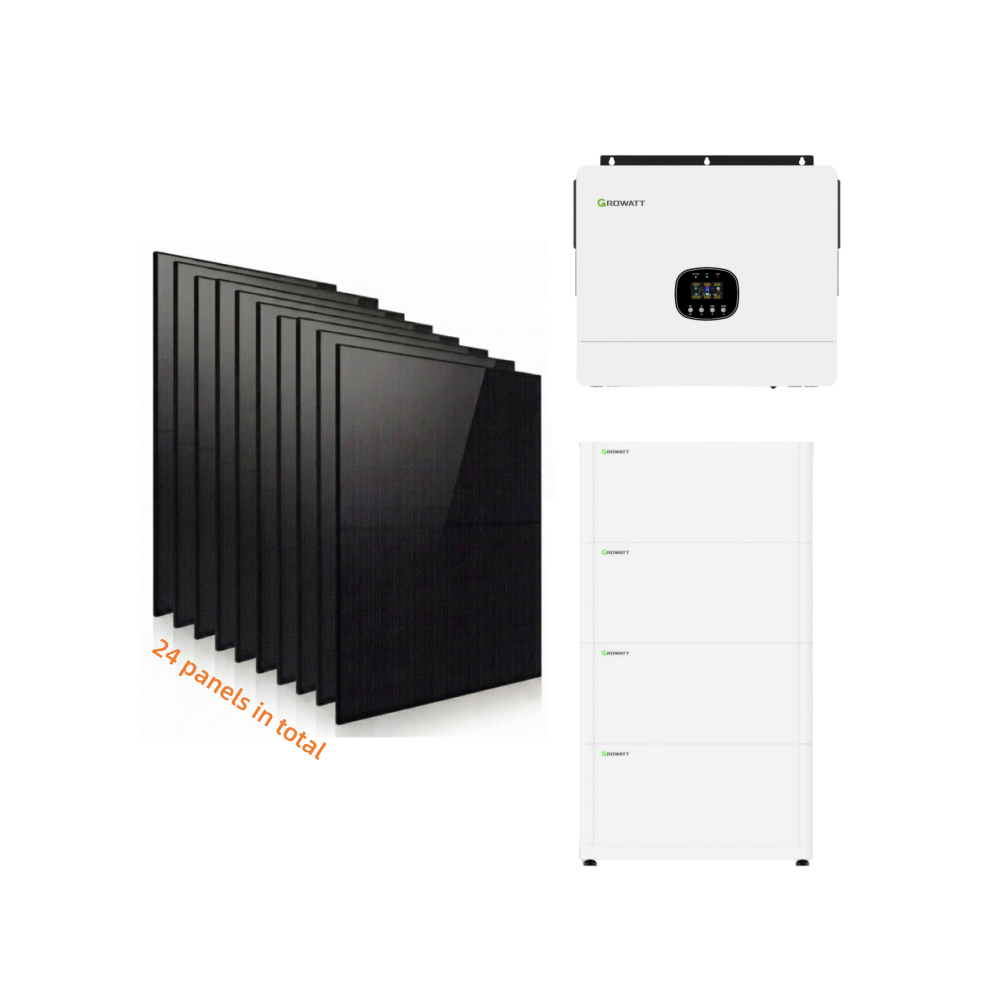

Introducing the Advanced Home Solar Storage Kit - 20kWh Energy Storage with 12kW off grid Inverter + 12000W Solar Array, a premium off grid solar energy systems for 120V/240V 100AMP house, cottage, and cabin. This all-encompassing kit features GROWATT's SPE12000 US, a 12kW off grid inverter known for its seamless energy integration and intelligent power management, alongside four 5kWh batteries for a total energy storage of 20kWh, and a robust 10560W solar panel array comprised of 24 high-efficiency 440W Bifacial panels.
Key Highlights:
Growatt AXE 5.0L-C1 5kWh Battery (x4):
- Modular 5kWh capacity, expandable up to 400kWh
- Cobalt-free LiFePO4 battery cells for safety and longevity
- Quick, cable-free stacking installation
- Remote management for firmware updates and diagnostics
- Integrated BMS for real-time monitoring and protection
- 10-year warranty

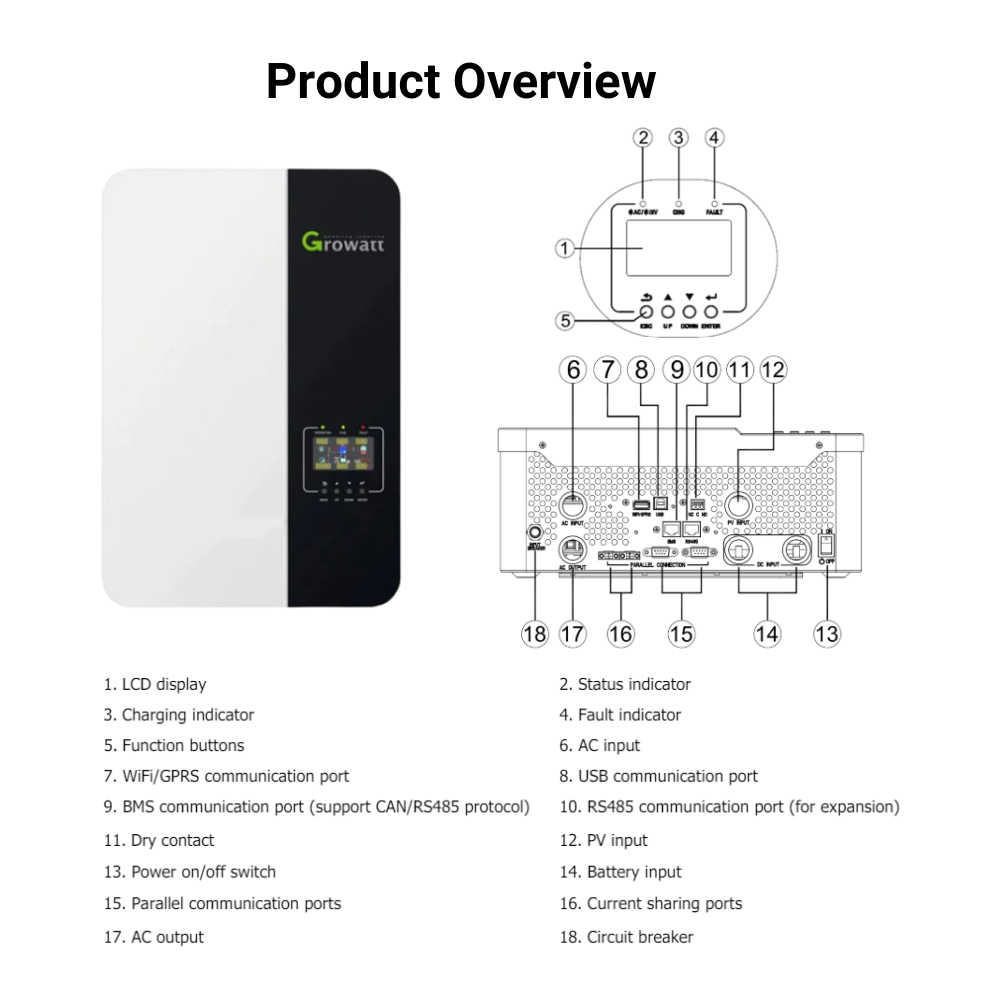

Growatt SPE12000 US Off Grid Inverter:
- 12kW power output for residential and commercial needs
- Integrated MPPT technology for maximum efficiency
- Supports PV input voltage up to 550VDC and Maximum 18000W
- Operates with or without a battery
- Durable in environments from -10°C to 50°C
- Smart connectivity for easy monitoring and management
- Generator Connection Ready
- Pure sine wave output for sensitive electronics
ROCKSOLAR 440W Bifacial Monocrystalline Solar Panel (x24):
- High-efficiency monocrystalline cells for superior performance
- 440W power output per panel with a total array power of 10560W
- Durable aluminum frame and anti-reflective glass for weather resistance
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact on performance
- Over 30 years of service life with a 12-year manufacturer warranty
- Eco-friendly power generation to reduce carbon footprint
With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy reliable power. Experience modern solar technology and battery storage in one seamless package.
SPECIFICATIONS
SPECIFICATIONS
| Growatt AXE 5.0L-C1 5kW Battery | Details |
|---|---|
| Model | Growatt AXE 5.0L-C1 |
| Energy Capacity | 5.0kWh |
| Max Charge/Discharge Power | 3kW |
| Max Charge/Discharge Current | 60A |
| Dimensions | 650 x 350 x 165mm (W x D x H) |
| Weight | 42kg |
| Nominal Voltage | 51.2V |
| Warranty | 10 years |
| Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
| Operating Voltage Range | 48 - 57.6V |
| Installation | Floor installation |
| Operation Temperature | 0°C-50°C/32-122°F |
| DoD | 92% |
| Parallel Capability | Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh) |
| Communication Port | CAN/RS485 |
| Performance Warranty | 10 years |
| Certification | CE, ROHS, UL1973+FCC, UN38.3 + IP65 |
| Growatt SPE 12000-US | Details |
|---|---|
| Battery Voltage | 46 – 60 VDC (Lithium) |
| Battery Type | Lithium/Lead-acid |
| Inverter Output (Rated Power) | 12KW |
| Surge Rating | 36KW |
| Waveform | Pure sine wave/ same as input (bypass mode) |
| Nominal Output Voltage RMS | 120/240Vac (195-255Vac)(optional) |
| Output Frequency | 60Hz (58.3~61.7Hz) |
| Inverter Efficiency (Peak) | 96.50% |
| Transfer Time | ≤20ms Single /≤30ms Parallel |
| Solar Charger (Maximum PV Charge Current) | 27A(Per MPPT) |
| Maximum PV Array Power | 18000W(9000W per MPPT) |
| AC Input Voltage | 120/240Vac |
| Max. Charging Current | 70A |
| Protection Degree | IP20 |
| Dimensions (W/H/D) | 550/465/150 mm |
| Weight | 21.5kg |
| Operating Environment (Temperature Range) | -10°C ~ 50°C |
| Warranty | 5-year standard warranty |
| ROCKSOLAR 440W Bifacial Rigid Solar Panel | Details |
|---|---|
| Panel Type | Bifacial Panels |
| Power Output | 440W |
| System Voltage | 32.8V |
| Cell Efficiency | 20-23% |
| Frame Material | Aluminum |
| Dimensions | 1480mm x 670mm |
| Weight | approx. 25-30 lbs |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP68 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
| Warranty | 10 years |
