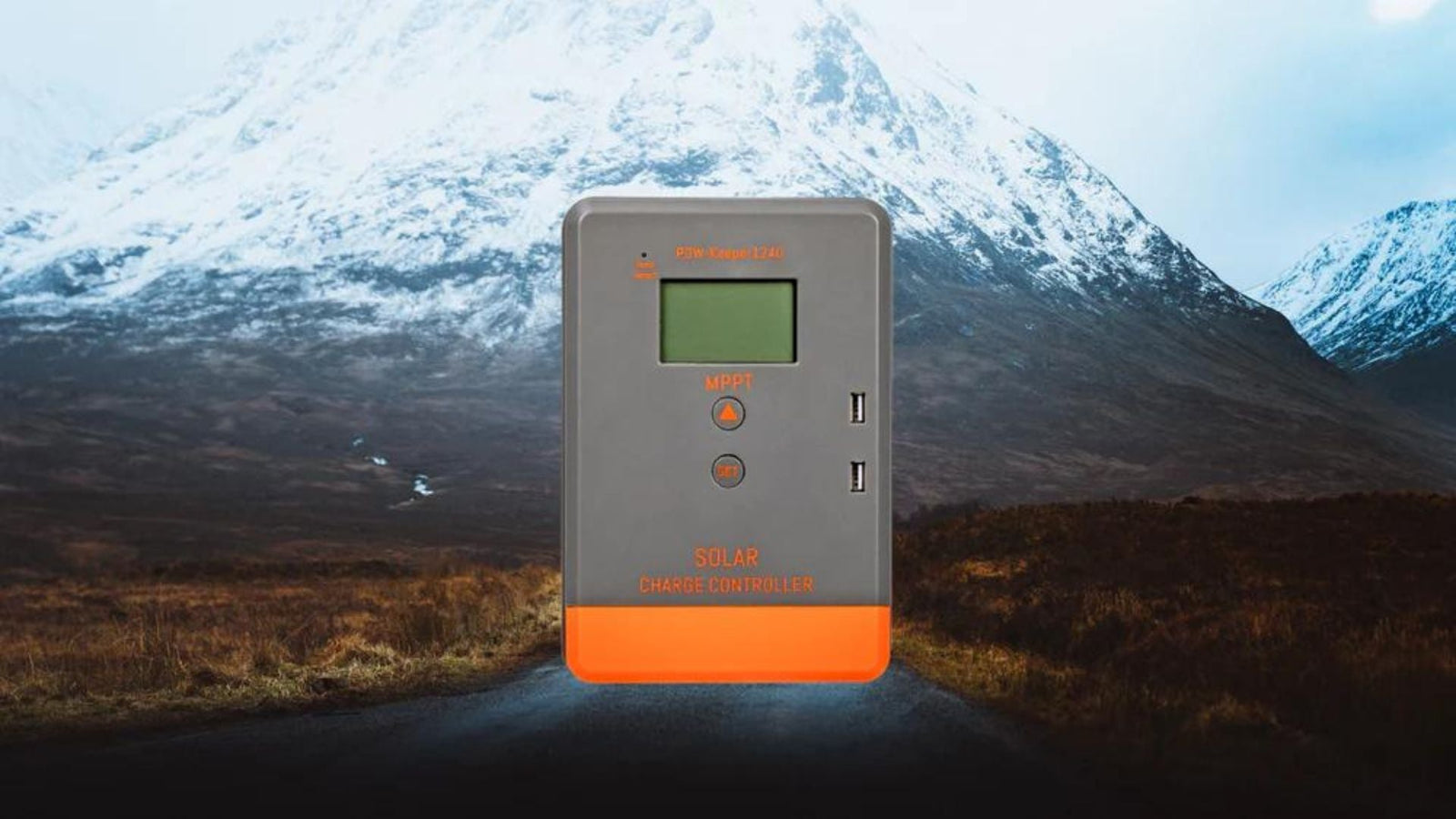

Rocksolar’s Comprehensive Guide to Choosing the Ideal Solar Charge Controller for Lithium Batteries

Rocksolar’s Comprehensive Guide to Choosing the Ideal Solar Charge Controller for Lithium Batteries

Rocksolar US |

Solar energy has experienced rapid growth in recent years as a preferred form of renewable energy. This surge can be largely credited to advancements in lithium battery technology. To maximize the utility and lifespan of these high-performance lithium batteries, the role of a solar charge controller becomes pivotal. This comprehensive guide by Rocksolar will detail the numerous factors to consider while selecting the right solar charge controller for your lithium battery setup.

Table of Contents

  1. The Importance of Solar Charge Controllers
  2. Understanding Lithium Batteries
  3. Different Types of Solar Charge Controllers: PWM vs MPPT
  4. Selecting the Appropriate Solar Charge Controller
  5. Sizing Your Solar Charge Controller
  6. Rocksolar Product Portfolio
  7. FAQs
  8. Conclusion

The Importance of Solar Charge Controllers

A solar charge controller, also known as a solar regulator, stands as a critical component in your solar energy setup. It functions as a conduit between your solar panels and your battery storage system, ensuring the regulated flow of electrical energy into the batteries.

A charge controller prevents batteries from overcharging, undercharging, and in some cases, even reverses the current to prevent battery drainage. In other words, the solar charge controller ensures your battery’s optimal health and performance, thereby directly influencing the efficiency and longevity of your entire solar energy system.

Understanding Lithium Batteries

Lithium batteries are popular for their higher energy density, lighter weight, and low self-discharge. They are widely used in solar setups, thanks to their longer lifecycles and lower maintenance needs. However, lithium batteries require specialized care during charging and discharging cycles. Failure to employ a compatible solar charge controller can result in rapid degradation of the battery’s performance and may even pose safety risks.

The charging process for lithium batteries is typically divided into multiple stages, often including a constant current phase followed by a constant voltage phase. The meticulous charging profile makes it imperative to select a solar charge controller that is designed to handle these complexities.

Different Types of Solar Charge Controllers: PWM vs MPPT

PWM Controllers

PWM stands for Pulse Width Modulation. These are simpler, older types of charge controllers and are generally less expensive. They are mainly used for small-scale, low-power systems. While PWM controllers are robust and efficient, they might not be suitable for lithium batteries due to their limitations in handling variable voltage inputs.

👉 ROCKSOLAR 10A PWM SOLAR CHARGE CONTROLLER

solar energy charge controller

Perfect for small solar setups, this controller features 3-stage PWM charge management and is compatible with various battery types, including lithium-ion and LiFePo4.

👉 ROCKSOLAR 20A PWM SOLAR CHARGE CONTROLLER

Featuring 4-stage PWM technology and comprehensive safety protections, this controller is ideal for medium setups and is also weather-proof with an IP67 rating.

👉 ROCKSOLAR 30A PWM SOLAR CHARGE CONTROLLER

solar charge controller

For larger PWM setups, this controller supports both 12V and 24V systems and offers smart control alongside comprehensive safety features.

MPPT Controllers

MPPT or Maximum Power Point Tracking controllers are the modern successors to PWM controllers. They are well-suited for complex solar energy systems and are a must for lithium battery setups. MPPT controllers adjust the input voltage to find the maximum power point, thereby optimizing energy harvest.

👉 ROCKSOLAR 20A MPPT SOLAR CHARGE CONTROLLER

This is the ideal controller for medium to large-scale setups, with 99.5% efficiency and adaptive 3-stage charging for both 12V and 24V systems.

👉 ROCKSOLAR 40A MPPT SOLAR CHARGE CONTROLLER

For extensive solar energy systems, this controller provides 99.5% efficiency with strong protective features, making it a reliable option for large-scale applications.

👉 ROCKSOLAR 60A MPPT SOLAR CHARGE CONTROLLER

This high-capacity controller is perfect for industrial-scale applications, offering top-tier efficiency and dual battery compatibility.

Selecting the Appropriate Solar Charge Controller

Voltage and Current Compatibility

Ensure that the solar charge controller’s input voltage range is compatible with the output voltage of your solar panel setup. The controller's maximum current rating should also meet or exceed the maximum current from your solar panels.

Temperature Compensation and Monitoring

Depending on your geographical location and the climate conditions there, a solar charge controller with an automatic temperature compensation feature can be a wise choice. Some controllers also offer remote monitoring capabilities, which allow you to keep tabs on system performance via a smartphone or computer.

Safety Features

Safety features like short-circuit protection, reverse polarity protection, and overcharge protection should not be overlooked. These features protect both your batteries and your solar installation.

Ease of Installation

Choose a solar charge controller that comes with an easy-to-understand manual and straightforward installation procedures.

Budget

While the cheapest option is tempting, remember that the solar charge controller is a long-term investment that will impact the performance and lifespan of your other more expensive solar components. Consider this while making a budget allocation for the charge controller.

Sizing Your Solar Charge Controller

Sizing is critical when selecting your solar charge controller. To accurately size your solar charge controller, you need to know the maximum voltage and current from your solar panels.

Amps from Solar Panel=Watts from Solar PanelVoltage of Battery

A rule of thumb is to add 25% more to the calculated Amps to account for fluctuating conditions, leading to:

Amps of Controller=Amps from Solar Panel×1.25

Rocksolar Product Portfolio

We offer a versatile range of solar charge controllers to suit your specific needs.

  1. ROCKSOLAR 10A PWM SOLAR CHARGE CONTROLLER
  2. ROCKSOLAR 20A PWM SOLAR CHARGE CONTROLLER
  3. ROCKSOLAR 30A PWM SOLAR CHARGE CONTROLLER
  4. ROCKSOLAR 20A MPPT SOLAR CHARGE CONTROLLER
  5. ROCKSOLAR 40A MPPT SOLAR CHARGE CONTROLLER
  6. ROCKSOLAR 60A MPPT SOLAR CHARGE CONTROLLER

FAQs

Can I use a PWM controller with a lithium battery?

While it's technically possible to use a PWM controller with a lithium battery, it's not recommended due to the limitations of PWM controllers in managing the unique charging profiles of lithium batteries.

What happens if my solar charge controller is undersized?

An undersized solar charge controller will not be able to handle the power output from the solar panels, potentially leading to inefficiencies and safety hazards.

Do Rocksolar solar charge controllers come with a warranty?

Yes, all Rocksolar solar charge controllers come with a 1-year warranty, assuring quality and reliability.

Conclusion

Selecting the right solar charge controller is crucial for the performance and longevity of your lithium battery-powered solar energy system. A well-matched controller not only ensures optimal battery health but also maximizes the overall efficiency of your solar setup.

Rocksolar offers a variety of high-quality, efficient solar charge controllers to suit all your needs, from small-scale setups to industrial applications. For those who are conscious about quality and efficiency, our range of solar charge controllers is an investment that pays off in the long run.

We hope this comprehensive guide assists you in making an informed decision for your solar energy needs. Feel free to reach out to us for any further queries or recommendations.
