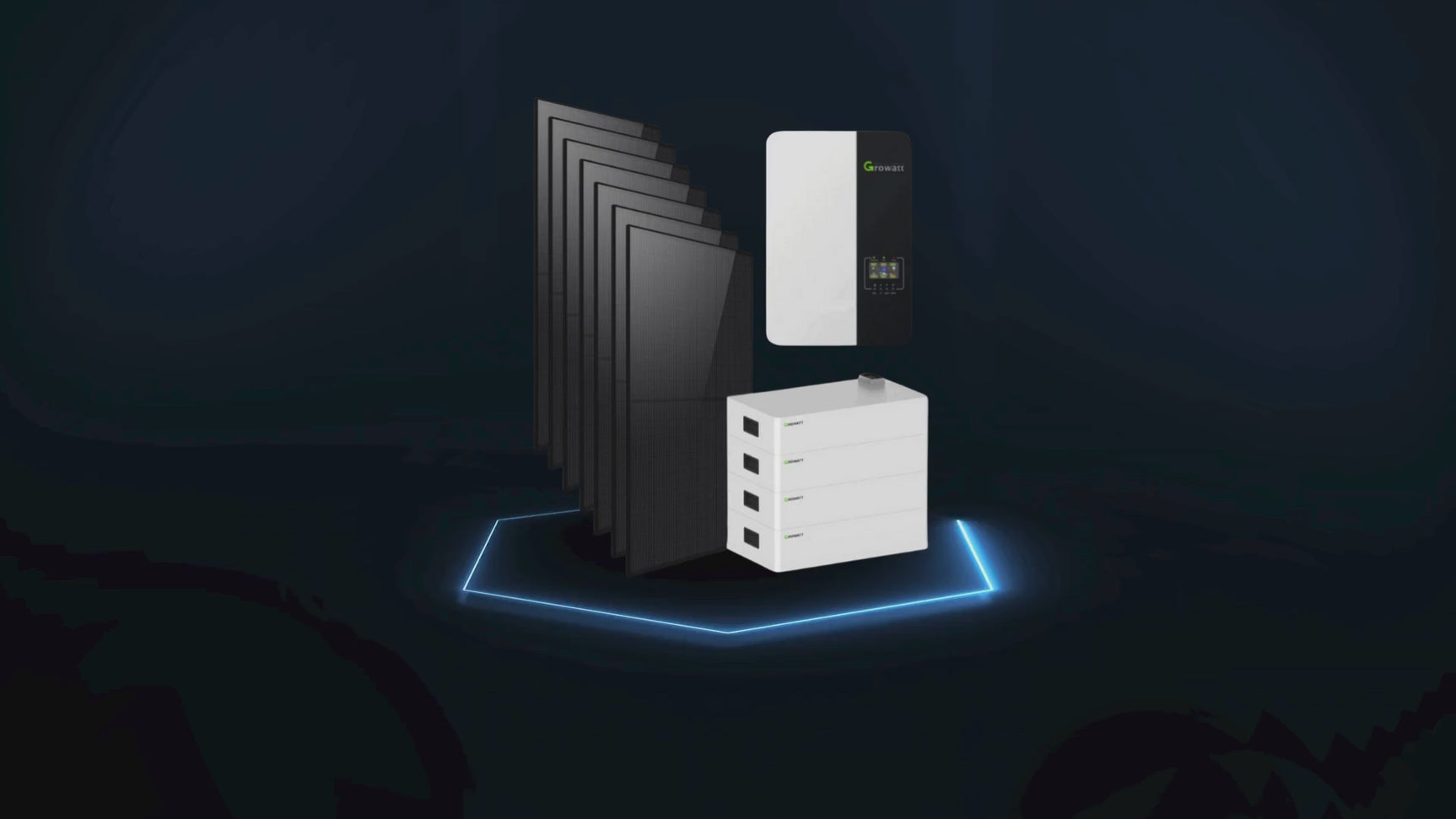

3.5 kW Off-Grid Solar System (5kW Energy Storage with 3.5kW Inverter + 1600W Solar Array)

$5,999.99 $7,999.99
Shipping calculated at checkout.
  • Comprehensive Solution: Inverter, battery, solar panels, and all necessary equipment.
  • High-Capacity Storage: Expandable Growatt 5kW battery up to 400kWh.
  • High-Performance Panels: 1600W total from ROCKSOLAR 200W panels.
  • Efficient Inverter: Growatt Off-Grid Inverter for reliable power.
  • Durable Construction: Weather-resistant panels with aluminum frames.
  • Safe and Reliable: Advanced BMS and protective inverter features.
  • Flexible Installation: Easy setup with pre-drilled holes and stackable battery.
  • Remote Management: WIFI/GPRS monitoring included.
  • Long Lifespan: 25+ years for panels, 5-year battery and inverter warranty.
  • Environmental Benefit: Reduce carbon footprint with solar power.
  • Scalable System: Expandable with more batteries or panels.
  • All-Weather Performance: Effective under various conditions.

Free Shipping

Orders Over $100? Shipping's On Us!

Hassle Free Warranty

Effortless Warranty for Your Ease.

Lifetime Customer Support

Endless Support, Because You Matter.

Description

Introducing the Ultimate Home Solar Storage Kit, a comprehensive and powerful solution for residential solar energy needs. This robust system combines the efficiency of the Growatt Off-Grid Storage Inverter SPF 3500TL LVM-US, the reliability of the Growatt AXE 5.0L-C1 5kW Battery, and the high-performance 1600W Rigid Solar Panels to provide an unrivaled off-grid experience.

Engineered for seamless integration, the system ensures that your home can run independently of the grid, whether as a primary power source or as a backup during outages. It's an ideal setup for environmentally conscious homeowners looking to reduce their carbon footprint and harness the power of the sun.

Product Features

Growatt AXE 5.0L-C1 5kW Battery:

  • Modular 5kWh capacity, expandable in parallel for up to 400kWh
  • Cobalt-free LiFePO4 battery cells for safety and longevity
  • Quick, cable-free stacking installation
  • Remote management for firmware updates and diagnostics via WiFi or GRPS
  • Integrated BMS for real-time monitoring and protection
  • 10-year warranty ensuring peace of mind

Growatt Off-Grid Storage Inverter SPF 3500TL LVM-US:

  • Highly versatile with 3500W rated power
  • Integrated MPPT charge controller for maximum solar efficiency
  • Supports parallel operation up to 20kW and Split phase 120/240Vac output with two in parrallel.
  • Flexible scheduling for inverter charging and discharging
  • Configurable grid or solar input priority and Generator Connection ready
  • WIFI/GPRS remote monitoring (WiFi Module included)

ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel (x8):

  • High-efficiency monocrystalline cells for superior performance
  • 200W power output per panel with a total array power of 1600W
  • Durable aluminum frame and anti-reflective glass for weather resistance
  • Easy installation with pre-drilled mounting holes
  • Bypass diodes to minimize shading impact on performance
  • Over 25 years of service life with a 10-year manufacturer warranty
  • Eco-friendly power generation to reduce carbon footprint

With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy the assurance of a reliable power supply. Experience the combined benefits of modern solar technology and battery storage in one seamless package.

SPECIFICATIONS

Growatt AXE 5.0L-C1 5kW Battery Details
Model Growatt AXE 5.0L-C1
Energy Capacity 5.0kWh
Max Charge/Discharge Power 3kW
Max Charge/Discharge Current 60A
Dimensions 650 x 350 x 165mm (W x D x H)
Weight 42kg
Nominal Voltage 51.2V
Warranty 5 years
Battery Type Cobalt Free Lithium Iron Phosphate (LFP)
Operating Voltage Range 48 - 57.6V
Installation Floor installation
Operation Temperature 0°C-50°C/32-122°F
DoD 92%
Parallel Capability Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh)
Communication Port CAN/RS485
Performance Warranty 10 years
Certification CE, ROHS, UL1973+FCC, UN38.3 + IP65
Growatt Off-Grid Storage Inverter SPF 3000~3500TL LVM-US Details
Battery Voltage 48VDC
Battery Type Lithium/Lead-acid
Inverter Output Rated Power: 3500VA 3500W
Parallel Capability: Yes, 6 units maximum
AC Voltage Regulation (Battery Mode): 100Vac/110Vac/120Vac @ 50/60Hz
Surge Power: 6000VA
Efficiency (Peak): 90%
Waveform: Pure Sine Wave
Transfer Time: 10ms typical, 20ms max
Solar Charger Maximum PV Array Power: 4000W
MPPT Range @ Operating Voltage: 120VDC – 225VDC
Maximum PV Array Open Circuit Voltage: 280VDC
Maximum Solar Charge Current: 80A
AC Charger Charge Current: 40A
AC Input Voltage: 120VAC
Selectable Voltage Range: 95-140VAC (For Personal Computers); 65-140VAC (For Home Appliances)
Frequency Range: 50Hz/60Hz (Auto sensing)
Physical Protection Degree: IP20/NEMA Type1
Dimension (W/H/D): 330/485/135mm
Net Weight: 12kg
Operating Environment Humidity: 5% to 95% Relative Humidity (Non-condensing)
Operating Temperature: 0°C - 50°C (32°F - 122°F)
Storage Temperature: -15°C - 60°C (-5°F - 140°F)
Warranty 2 Years
ROCKSOLAR Black Diamond 200W 12V Monocrystalline Rigid Solar Panel Specification Details
Panel Type Monocrystalline
Power Output 200W
System Voltage 12V
Cell Efficiency 20-22%
Frame Material Aluminum
Dimensions 1480mm x 670mm
Weight approx. 25-30 lbs
Operating Temperature -40°C to +85°C
Waterproof Rating IP65
Front Glass High light transmittance, low-iron tempered glass
Bypass Diodes Integrated
Connectors MC4
Cable Length Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations Pre-drilled
Service Life 25 years or more
Warranty 10 years
