10 KW Premium Split Phase 120V/240Vac Off-Grid Solar System

$15,999.99 ~~$26,999.99~~

Shipping calculated at checkout.

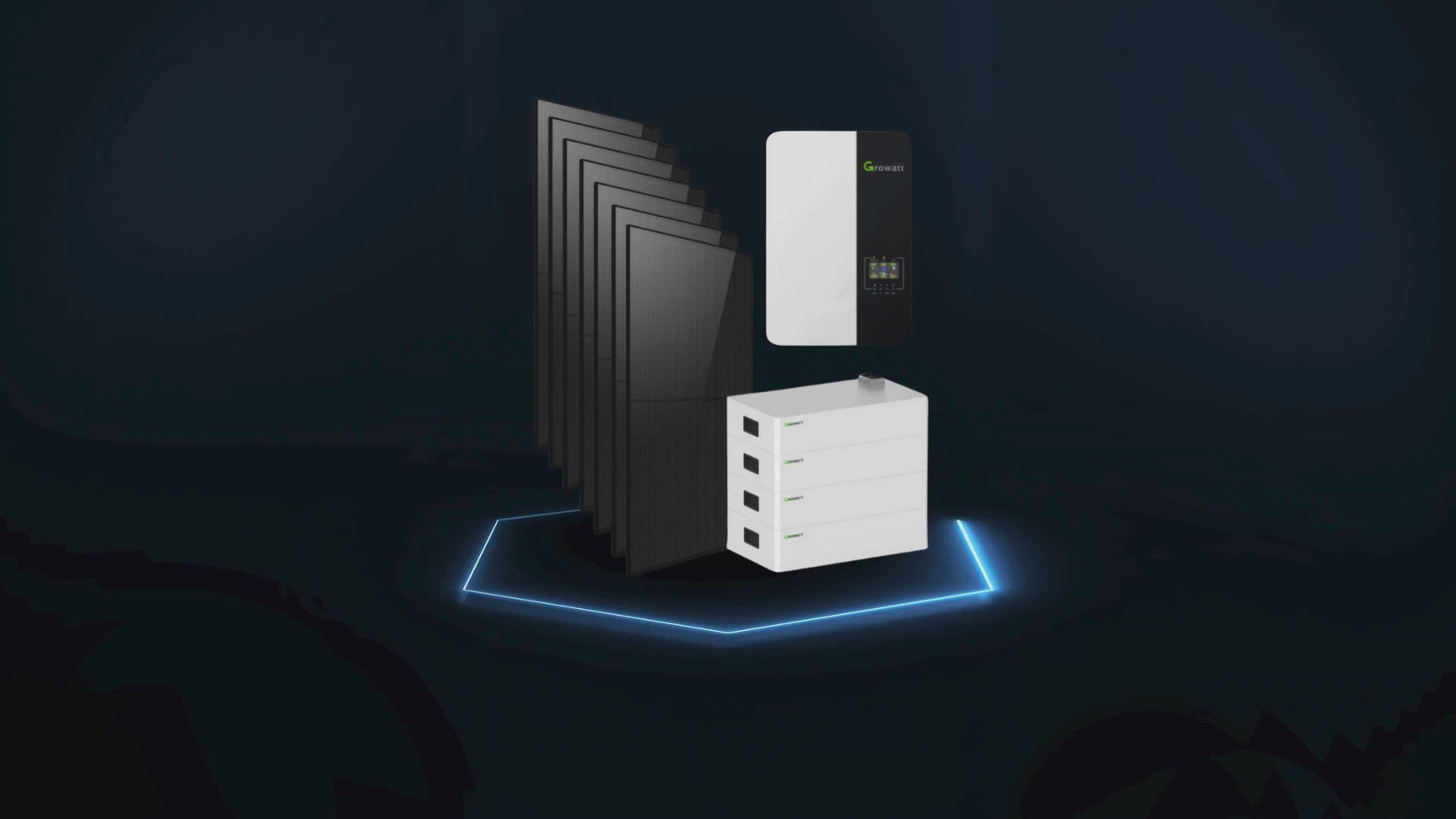

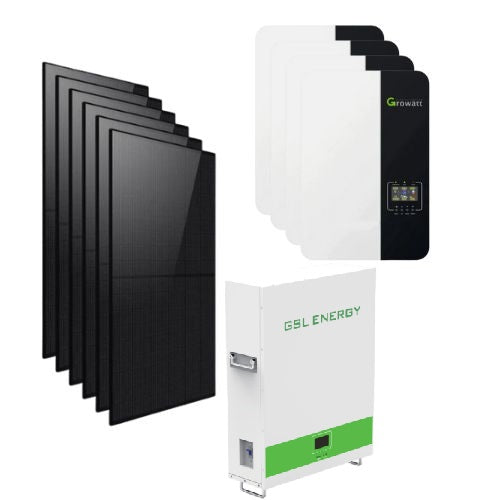

All-Inclusive Solar Power Kit: Features a 10kW inverter, four 5kWh batteries, and a robust 12000W solar panel array, offering a comprehensive solution for home energy needs.
Enhanced Energy Storage: Boasts a total energy storage of 20kWh with four high-capacity 5kWh batteries, providing reliable power backup.
Superior Solar Collection: The 12000W solar array, composed of 27x 440W high-efficiency panels, maximizes solar energy capture and conversion.
Panel Dimension: 1722X1134X30mm.
Advanced Inverter Technology: The 10kW inverter ensures efficient power conversion and seamless integration with both lithium and lead-acid batteries.
Scalable Storage Options: Modular battery design allows for easy system expansion to meet increasing energy demands.
Long-lasting Components: Constructed with durability in mind, all kit components are designed to endure various environmental conditions.
User-friendly Installation: Comes with complete installation gear, making setup adaptable to different mounting environments.
Intelligent System Management: WIFI/GPRS connectivity provides advanced monitoring and control capabilities.(WIFI Module Included)
Guaranteed System Longevity: The solar panels and batteries offer extended service life, supported by comprehensive warranties for peace of mind.
Sustainable Energy Production: Leveraging solar power reduces dependence on non-renewable energy sources, contributing to environmental conservation.
Customizable Energy Solutions: Flexibility to add more solar panels or batteries as needed, ensuring the system grows with your energy requirements.
Adaptable to All Environments: Designed to operate effectively in a wide range of weather conditions, ensuring consistent performance year-round.

Talk to Real Experts Anytime

Lifetime tech support from our in-house specialists

Hassle Free Warranty

Effortless Warranty for Your Ease.

Unbeatable Value, Guaranteed

Find it cheaper elsewhere? We'll match it.

Description

Introducing the Advanced Home Solar Storage Kit

Introducing the Advanced Home Solar Storage Kit - 20kWh Energy Storage with 10kW hybrid Inverter + 12000W Solar Array, a premium off grid solar energy systems for 120V/240V 100AMP house, cottage, and cabin. This all-encompassing kit features GROWATT's SPH 10000TL-HU-US, a 10kW hybrid inverter known for its seamless energy integration and intelligent power management, alongside four 5kWh batteries for a total energy storage of 20kWh, and a robust 12000W solar panel array comprised of 27 high-efficiency 440W Bifacial panels.

Key Highlights:

Growatt AXE 5.0L-C1 5kWh Battery (x4):

Modular 5kWh capacity, expandable up to 400kWh
Cobalt-free LiFePO4 battery cells for safety and longevity
Quick, cable-free stacking installation
Remote management for firmware updates and diagnostics
Integrated BMS for real-time monitoring and protection
10-year warranty

Growatt SPH10000TL-HU-US Inverter:

10kW power output for residential and commercial needs
Integrated MPPT technology for maximum efficiency
Supports PV input voltage up to 250VDC
Operates with or without a battery
Durable in environments from 0°C to 50°C
Smart connectivity for easy monitoring and management
Quick transfer switching minimizes downtime
Pure sine wave output for sensitive electronics

ROCKSOLAR 440W Bifacial Monocrystalline Solar Panel (x27):

High-efficiency monocrystalline cells for superior performance
440W power output per panel with a total array power of 12000W
Durable aluminum frame and anti-reflective glass for weather resistance
Easy installation with pre-drilled mounting holes
Bypass diodes to minimize shading impact on performance
Over 30 years of service life with a 12-year manufacturer warranty
Eco-friendly power generation to reduce carbon footprint

With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy reliable power. Experience modern solar technology and battery storage in one seamless package.

SPECIFICATIONS

Growatt AXE 5.0L-C1 5kW Battery	Details
Model	Growatt AXE 5.0L-C1
Energy Capacity	5.0kWh
Max Charge/Discharge Power	3kW
Max Charge/Discharge Current	60A
Dimensions	650 x 350 x 165mm (W x D x H)
Weight	42kg
Nominal Voltage	51.2V
Warranty	10 years
Battery Type	Cobalt Free Lithium Iron Phosphate (LFP)
Operating Voltage Range	48 - 57.6V
Installation	Floor installation
Operation Temperature	0°C-50°C/32-122°F
DoD	92%
Parallel Capability	Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh)
Communication Port	CAN/RS485
Performance Warranty	10 years
Certification	CE, ROHS, UL1973+FCC, UN38.3 + IP65

Growatt Off-Grid Storage SPF 12000T DVM-US	Details
Battery Voltage	48VDC
Battery Type	Lithium/Lead-acid
Inverter Output (Rated Power)	12KW
Surge Rating	36KW
Waveform	Pure sine wave/ same as input (bypass mode)
Nominal Output Voltage RMS	104-110-115-120/208-220-230-240VAC(optional)
Output Frequency	50Hz/60Hz +/-0.5 Hz
Inverter Efficiency (Peak)	88%
Transfer Time	10ms
Solar Charger (Maximum PV Charge Current)	60A
Maximum PV Array Power	7000W
AC Input Voltage	240VAC
Max. Charging Current	100A
Protection Degree	IP20
Dimensions (W/H/D)	360/650/225mm
Weight	75kg
Operating Environment (Temperature Range)	0°C to 50°C
Warranty	Complies with UL STD.1741, CSA STD CSA C22.2 No.107.1

ROCKSOLAR 440W Bifacial Rigid Solar Panel	Details
Panel Type	Bifacial Panels
Power Output	440W
System Voltage	32.8V
Cell Efficiency	20-23%
Frame Material	Aluminum
Dimensions	1480mm x 670mm
Weight	approx. 25-30 lbs
Operating Temperature	-40°C to +85°C
Waterproof Rating	IP68
Front Glass	High light transmittance, low-iron tempered glass
Bypass Diodes	Integrated
Connectors	MC4
Cable Length	Varies depending on the brand (approx. 3-6 ft)
Mounting Hole Locations	Pre-drilled
Service Life	25 years or more
Warranty	10 years
