Rocksolar 1.34HP Solar-Powered Submersible Pump Kit
- DC Brushless Motor: 1.34HP, Water cooled, permanent magnetic.
- Voltage Flexibility: 60-110V, Best 60-150V.
- Max Flow: 17.7 GPM. Max Depth: 328 feet. Pressure: 145 PSI Max.
- Safety: Dry-running auto protection.
- Power: Powered directly by solar panels and battery.
- Easy Installation and Maintenance Free: No external controller needed.
- Material: High-quality SS304 Stainless Steel.
- Pump Type: Impeller (centrifugal) Pump.
- Dimensions: 3" diameter, 1.5" outlet.
- Solar Panel: 1200W and above recommended.
- Warranty: 5 Year Manufacturer Warranty.
Rocksolar 1.34HP Solar-Powered Submersible Pump Kit - Model A:17.42GPM/326ft 1.34hp is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Rocksolar 1.34HP Solar-Powered Submersible Pump Kit
Description
Description

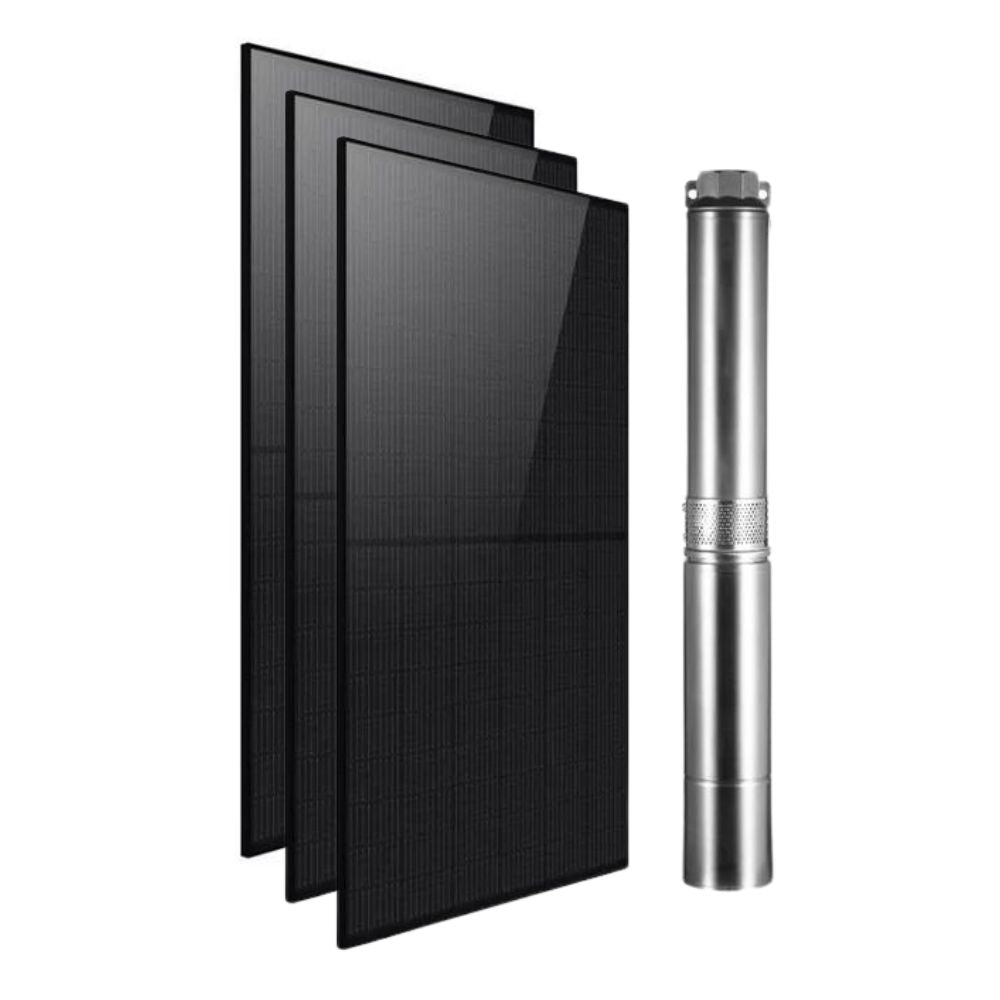

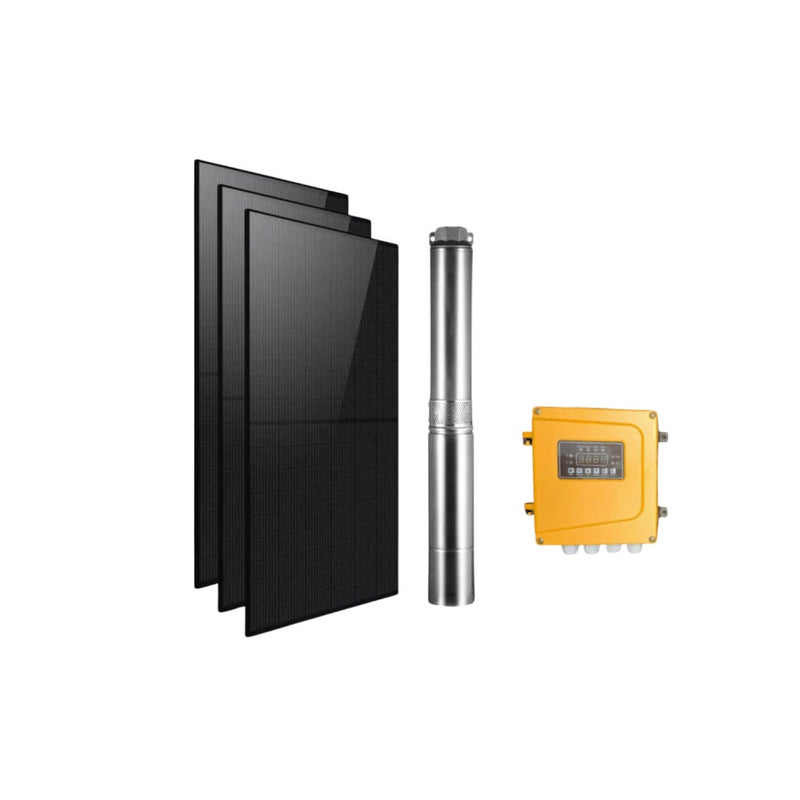

Introducing the Rocksolar 1.34HP Solar-Powered Submersible Pump Kit

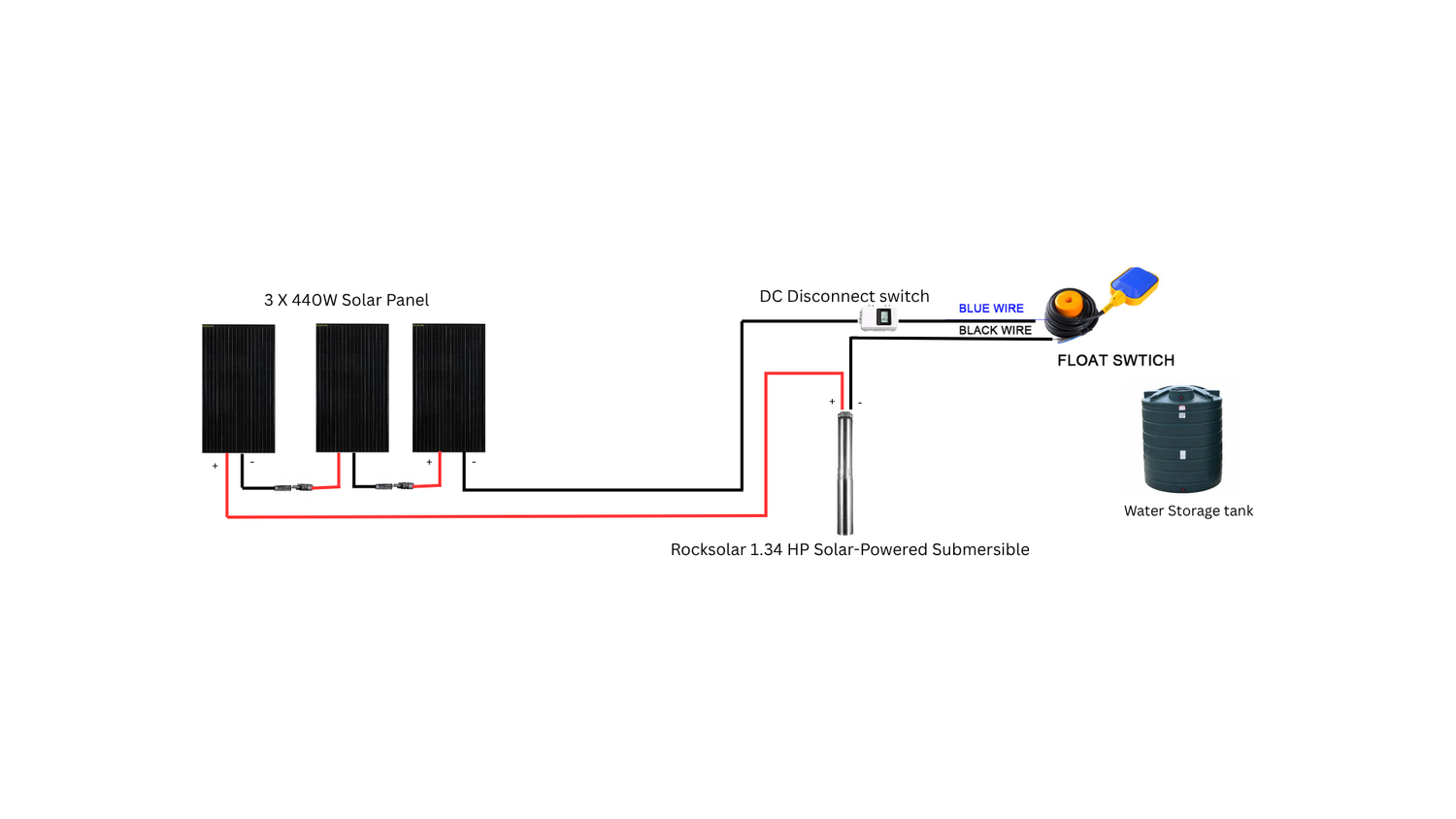

A powerful and efficient solution for your solar-powered water pumping needs. This advanced system combines the robust Rocksolar 60-150V 1.34HP Solar DC Brushless Submersible Pump with Built-in Controller and the high-performance 1320W Solar Panel Set (3x 440W), providing optimal and eco-friendly water pumping.
Designed for seamless integration, this system ensures efficient water management for a variety of applications, from home gardening to agricultural irrigation. It's an ideal setup for those looking to harness solar energy for reliable and sustainable water pumping.
Product Features

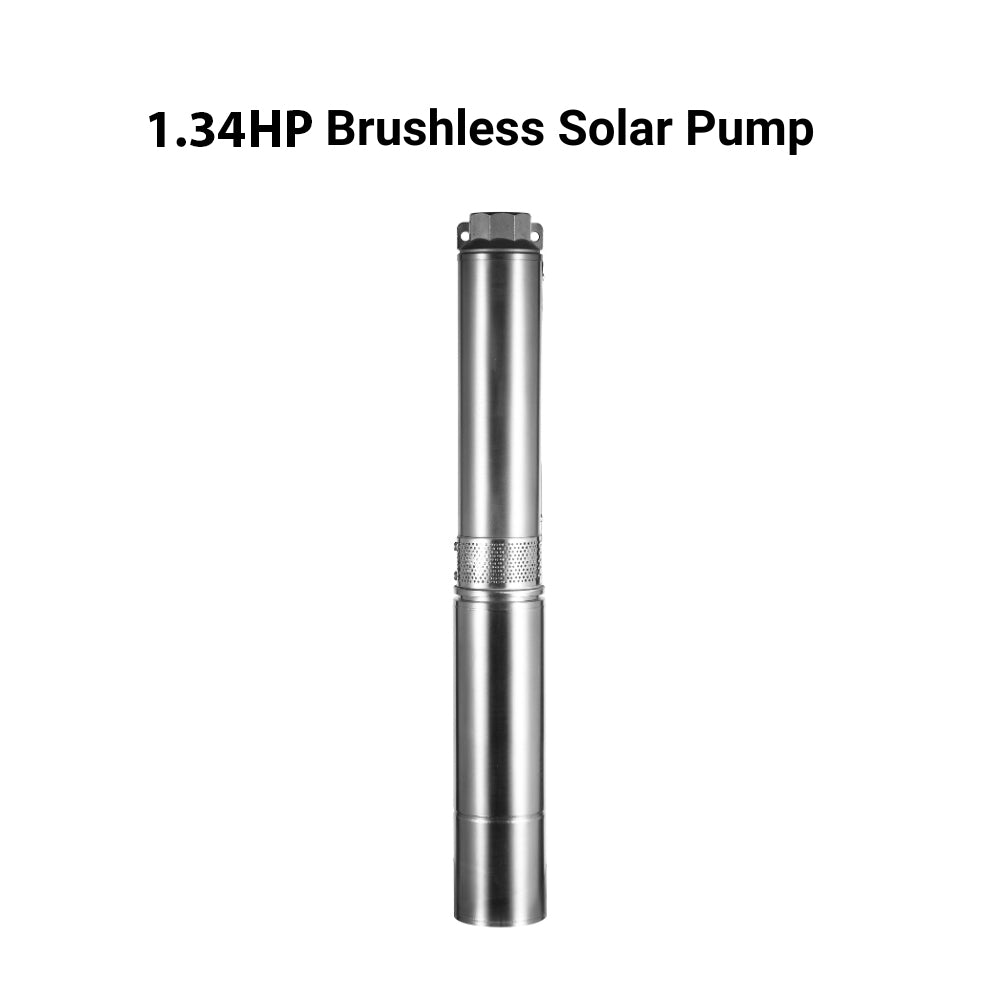

Rocksolar 60-150V 1.34HP Solar DC Brushless Submersible Pump:
- Powerful 1000W brushless motor delivering 1.34 HP for superior performance
- Voltage flexibility: operates best at 60-110V
- Max flow rate of 17.61 GPM at minimum head
- Sturdy 3-inch diameter with a 1.5-inch outlet
- Safety features including dry-running auto protection
- Supports solar panel and battery power
- Maximum pressure of 145 PSI and max depth of 328 feet
- 5-year warranty ensuring long-term reliability
ROCKSOLAR Philadelphia 440W Rigid Monocrystalline Bifacial Solar Panel (x3):
- High-efficiency monocrystalline cells for superior performance
- 440W power output per panel with a total array power of 1320W
- Durable aluminum frame and anti-reflective glass for weather resistance
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact on performance
- Over 30 years of service life with a 12-year manufacturer warranty
- Eco-friendly power generation to reduce carbon footprint
With the Rocksolar 1.34HP Solar-Powered Submersible Pump Kit, experience superior water management and energy independence. Achieve efficient and reliable water pumping while harnessing the power of the sun, making it an ideal choice for environmentally conscious users.

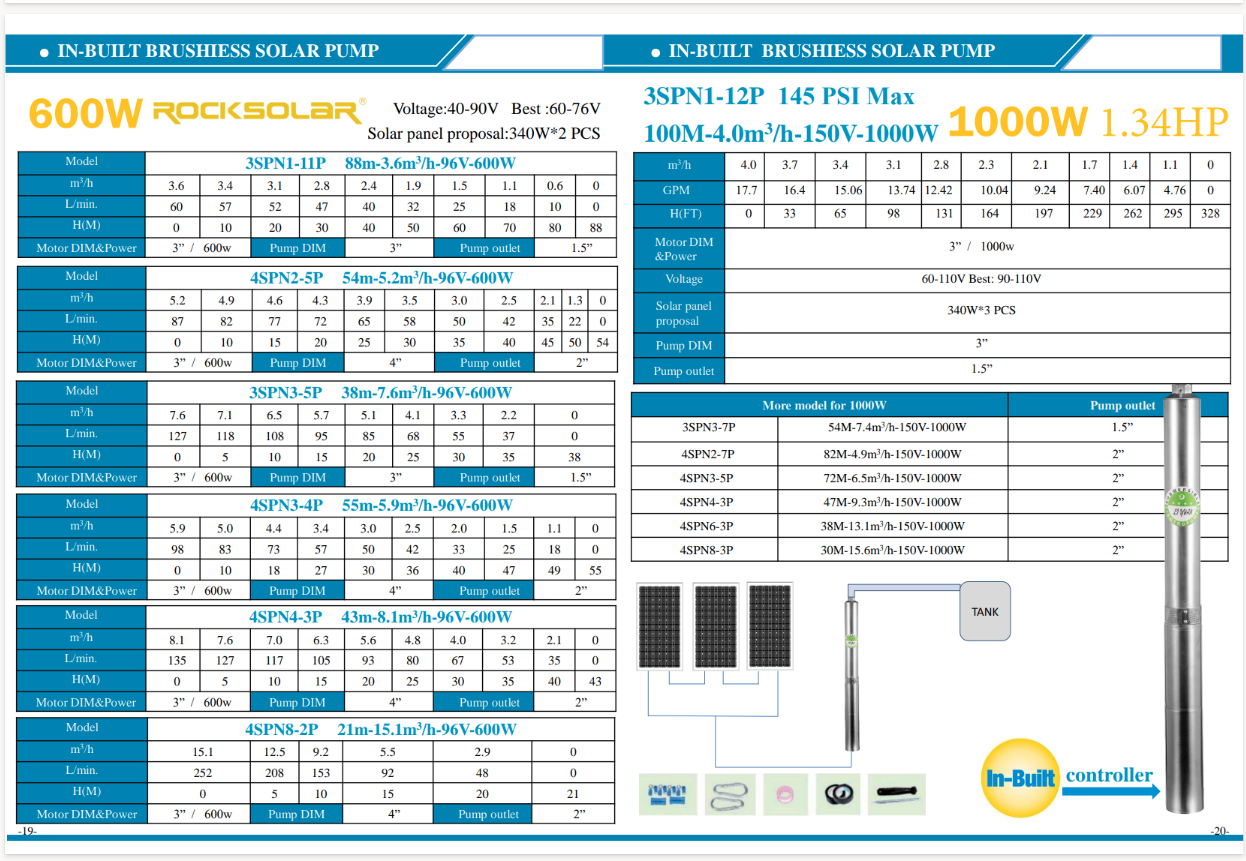

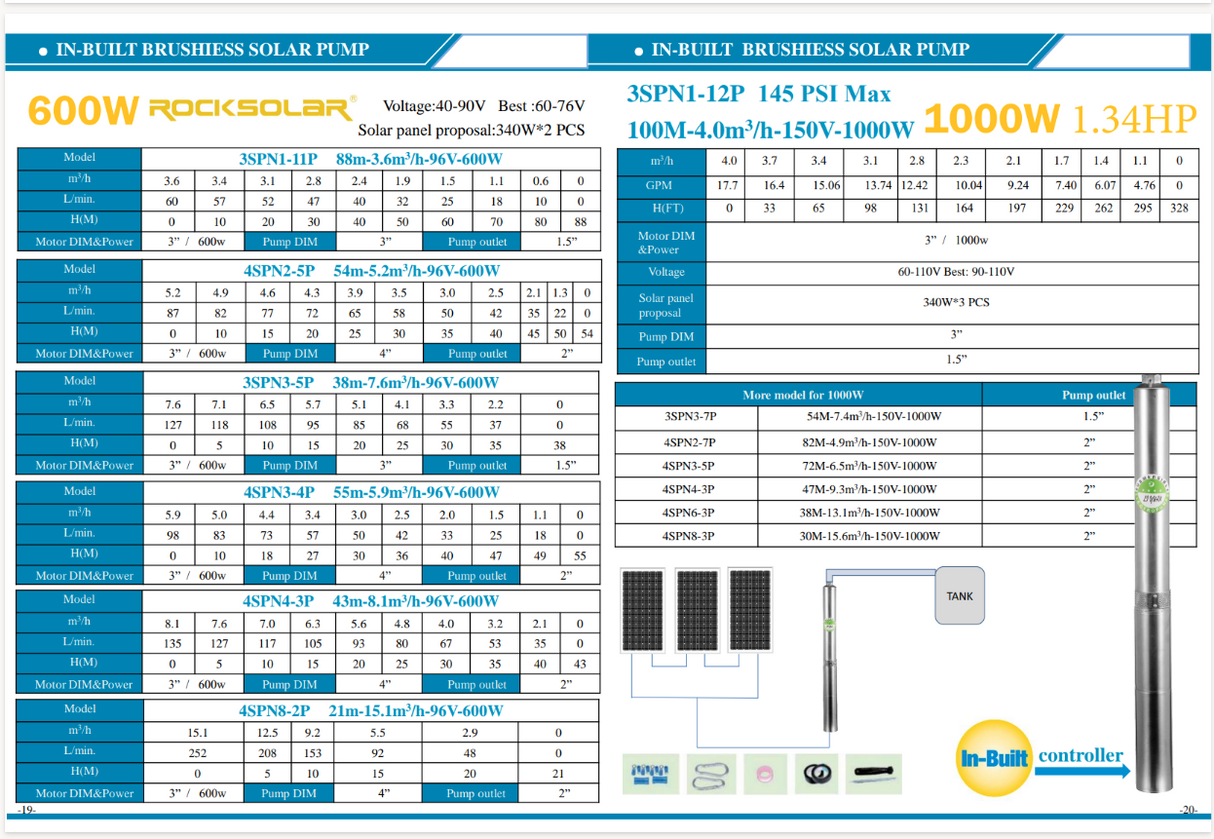

SPECIFICATIONS
SPECIFICATIONS
Specification Details
| Specification | Details |
|---|---|
| Model | Rocksolar 1000W Brushless Solar Pump with In-Built Controller |
| Power and Motor | 1000W, 1.34 HP |
| Voltage Range | 60-110V, Best at 90-110V |

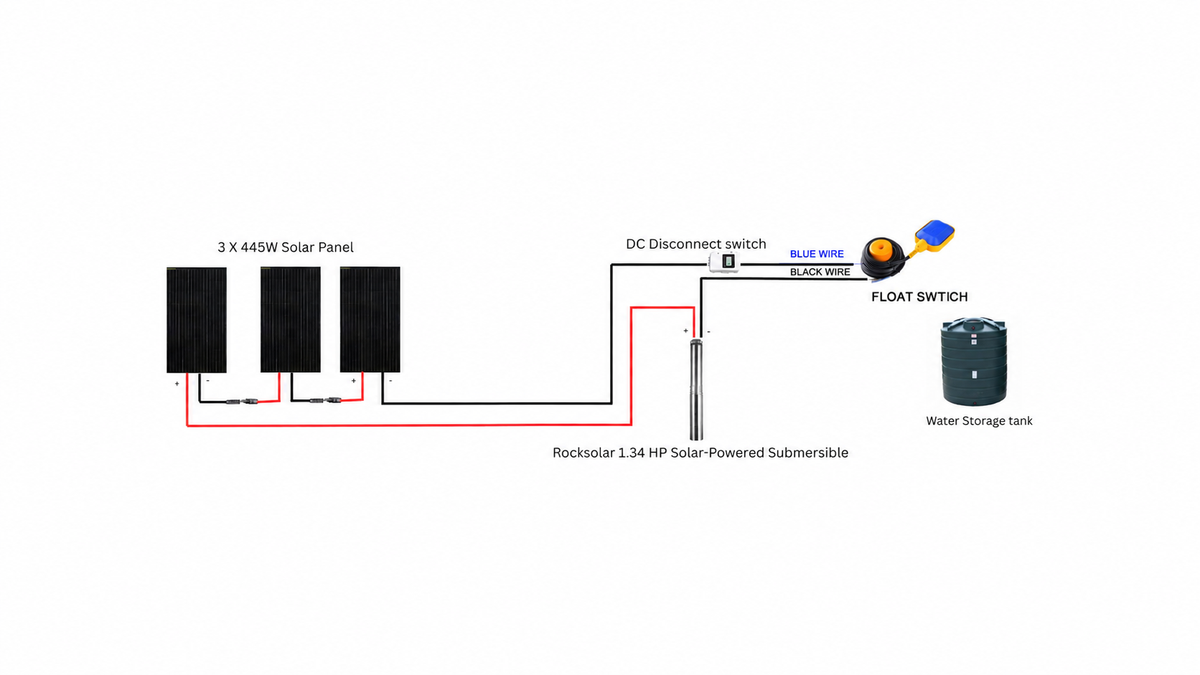

| Solar Panel Compatibility | Can be paired with three 440W solar panels |
| Max Flow Rate | 17.7 GPM |
| Max Head | 328 feet |
| Pump Diameter | 3 inches |
| Pump Outlet | 1.5 inches |

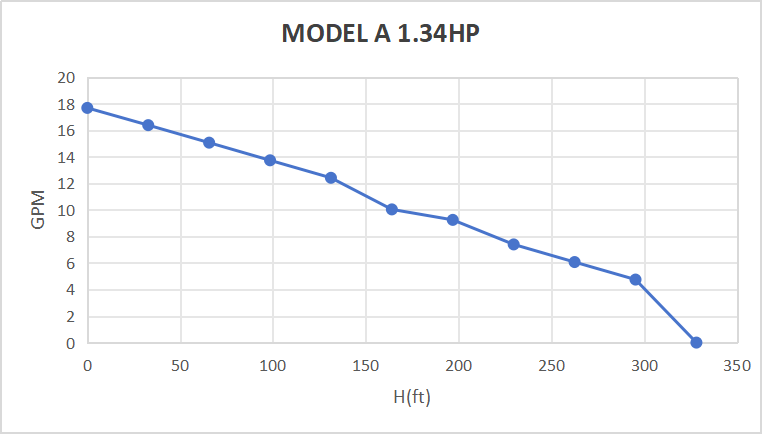

| GPM | 17.7, 16.4, 15.06, 13.74, 12.42, 10.04, 9.24, 7.40, 6.07, 4.76, 0 |
| Height(F) | 0, 33, 65, 98, 131, 164, 197, 229, 262, 295, 328 |
| ROCKSOLAR Philadelphia 440W Rigid Monocrystalline Bifacial Solar Panel | Details |
|---|---|
| Panel Type | N-Type Topcon Mono-Crystalline |
| Power Output | 440W |
| Max Power Volt | 32.98V |
| Cell Efficiency | Up to 22.57% |
| Frame Material | Aluminum |
| Dimensions | 1722mm x 1134mm x 30mm |
| Weight | Approx. 29 kg |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
| Warranty | 10 years |
