Rocksolar 1.61 HP Solar-Powered Submersible Pump Kit
- 1.61 HP (1200W) solar-powered submersible pump kit
- 1760W solar array included (4 × 440W panels)
- 80–150V DC input (best performance at 96–130V)
- Built-in controller for easy installation (no external controller)
- Max flow up to 17.42 GPM (at minimum head)
- Max pressure 174 PSI for high-lift pumping
- Max submersion depth up to 391.2 ft
- Brushless DC motor with dry-running auto protection
- SS304 stainless steel construction, water-cooled design
- 440W TOPCon monocrystalline half-cell solar panels
- Up to 22.57% panel efficiency with strong low-light performance
- Durable load rating: 5400 Pa snow / 2400 Pa wind
Rocksolar 1.61 HP Solar-Powered Submersible Pump Kit - Model A(3SPN1-14P):17.42GPM/391.2FT/169.2PSI 1.61hp 3'' Pump with 1.5''outlet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Rocksolar 1.61 HP Solar-Powered Submersible Pump Kit
High Efficiency DC Brushless Motor
High Efficiency Bifacial Solar Panels
Description
Description
The Rocksolar 1.61 HP Solar-Powered Submersible Pump Kit is a powerful, reliable, and eco-friendly water pumping solution designed for agricultural irrigation, industrial water supply, livestock watering, and remote off-grid applications. This complete system combines a high-efficiency 1.61 HP DC brushless submersible pump with a built-in controller and a 1760W solar panel array (4 × 440W panels) to deliver dependable water pumping using clean solar energy.
Engineered for seamless integration, the system operates directly from solar power and can also work with battery support, ensuring consistent performance even in variable sunlight conditions. With no external controller required, installation is simple, reliable, and maintenance-friendly—ideal for remote locations with limited infrastructure.

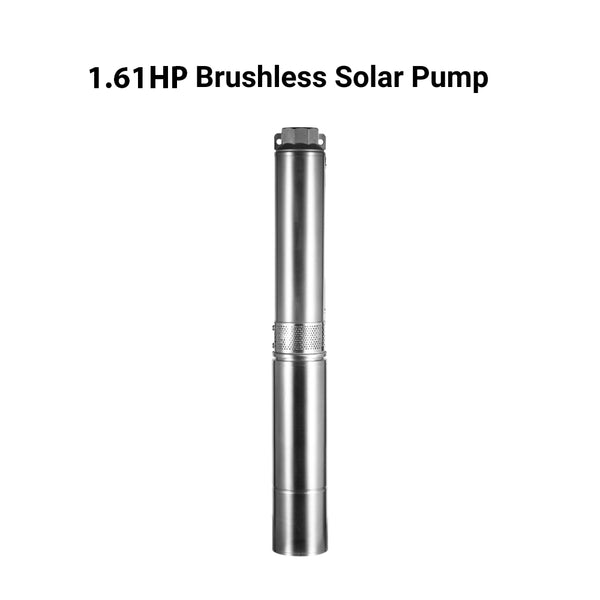

Rocksolar 1.61 HP Solar DC Brushless Submersible Pump
- Power Output: 1200W (1.61 HP)
- Operating Voltage: 80–150V DC (optimal range: 96–130V)
- Maximum Flow Rate: Up to 17.42 GPM (at minimum head)
- Maximum Pressure: 174 PSI
- Maximum Submersion Depth: 391.2 feet
- Pump Diameter: 3" with 1.5" outlet
- Motor Type: Brushless permanent magnetic motor with internal controller
- Material: High-quality SS304 stainless steel
- Cooling System: Water-cooled for extended lifespan

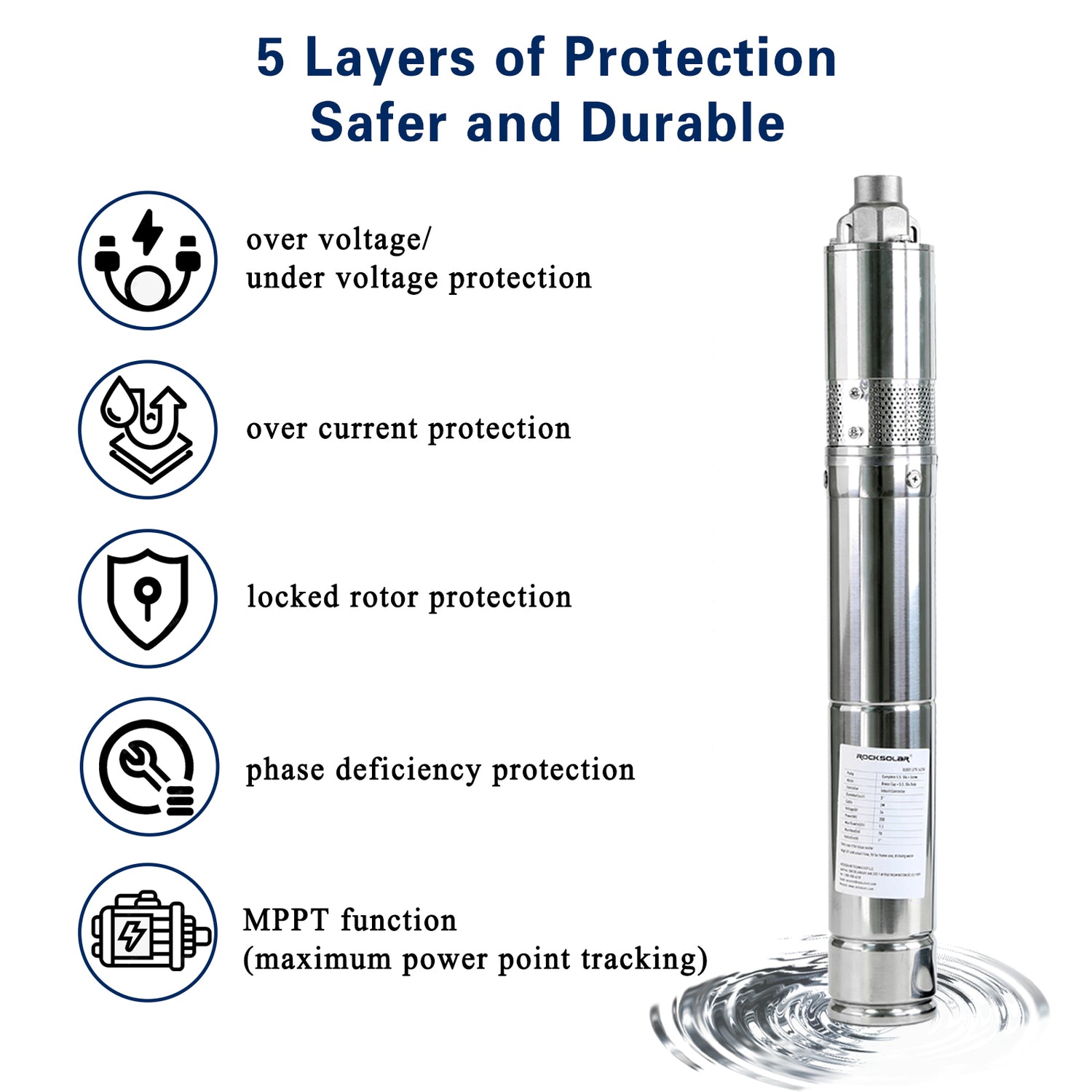

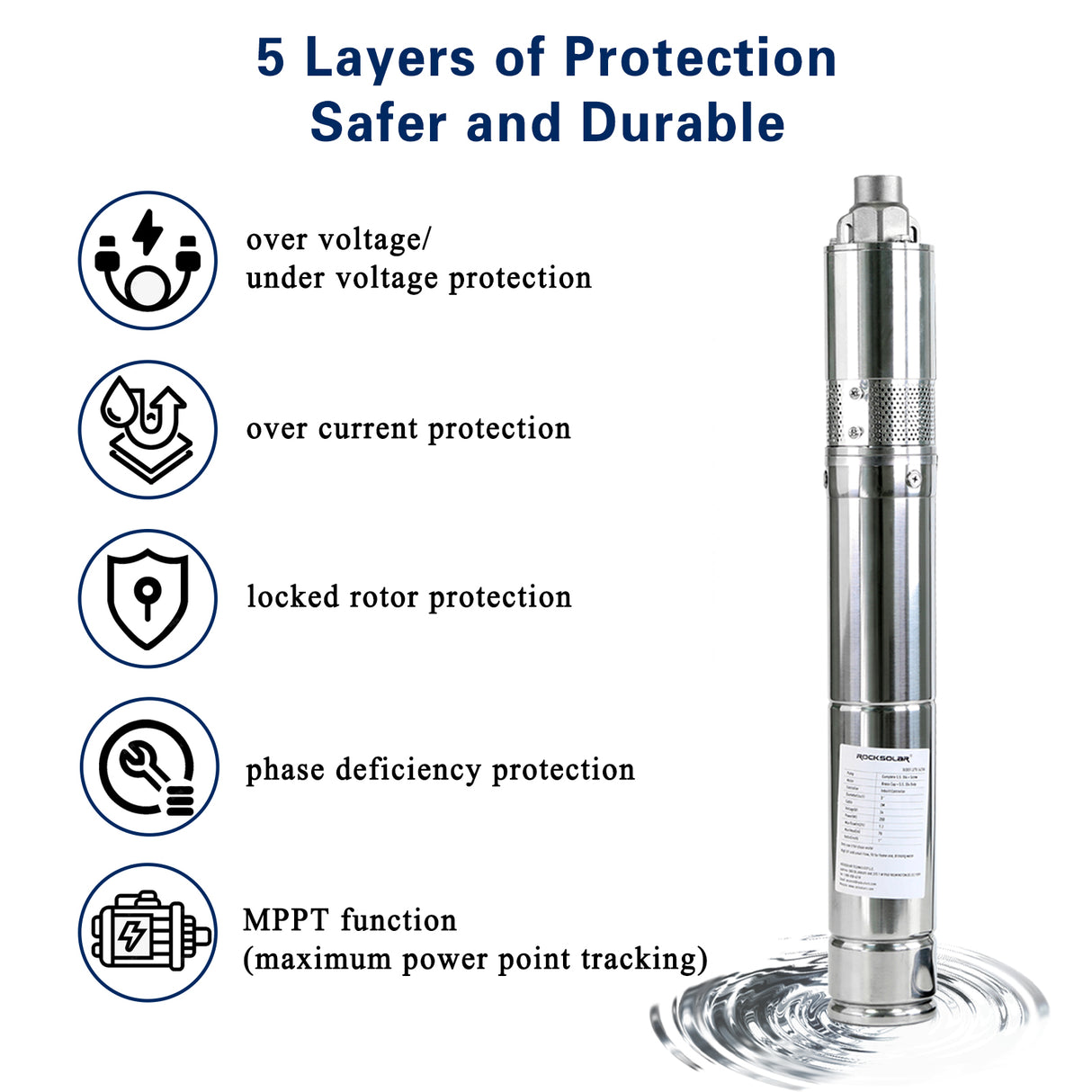

- Protection: Dry-running auto-protection for enhanced safety
- Installation: Plug-and-play design with no external controller required
- Standards: Franklin motor standard compatibility
ROCKSOLAR 440W Philadelphia Solar Panels (4 Panels | 1760W Total)
- Advanced TOPCon monocrystalline cell technology for higher energy yield
- Half-cell design reduces resistive losses and improves efficiency
- Module efficiency up to 22.57%
- Excellent low-light performance for cloudy or shaded conditions
- Strong mechanical strength: Snow load: 5400 Pa, Wind load: 2400 Pa
- Low temperature coefficient: −0.35% / °C for stable performance
- 30-year linear power warranty for long-term reliability
- 100% EL tested to eliminate micro-cracks and ensure durability
- Certified to international standards: ISO 9001, ISO 14001, ISO 45001
Why Choose This Solar Pump Kit
- Fully off-grid, solar-powered water pumping solution
- High efficiency with low operating and maintenance costs
- Ideal for remote and rural installations
- Reliable performance in harsh environmental conditions
- Reduces fuel dependency and carbon footprint
- Long service life with premium warranties
Ideal Applications
- Agricultural irrigation systems
- Livestock watering
- Industrial water transfer
- Remote farms and off-grid properties
- Sustainable water management projects
SPECIFICATIONS
SPECIFICATIONS
Pump Specification
- Power: 1.61 HP (1200W) brushless DC motor
- Voltage Range: 80–150V (optimal 96–130V)
- Max Flow: 17.6 GPM at 0 ft
- Max Head: 393 ft
- Diameter / Outlet: 3" body, 1.5" outlet
- Pressure: Up to 174 PSI
- Built-in controller, no external unit required
- Dry-run protection & water-cooled design
- Material: SS304 stainless steel
- Franklin-standard motor structure
Solar Panel Specification
- Power: 440W monocrystalline (bifacial)
- Efficiency: Up to 22.57%
- Design: Half-cell Topcon technology
- Durability: 2400 Pa wind / 5400 Pa snow load
- Dimensions: 1722 × 1134 × 30 mm
- Weight: 22 kg
- Operating Temp: −40°C to +85°C
- Waterproof Rating: IP68
- Front Glass: Anti-reflective tempered
- Service Life: 30+ years (12-year product warranty)

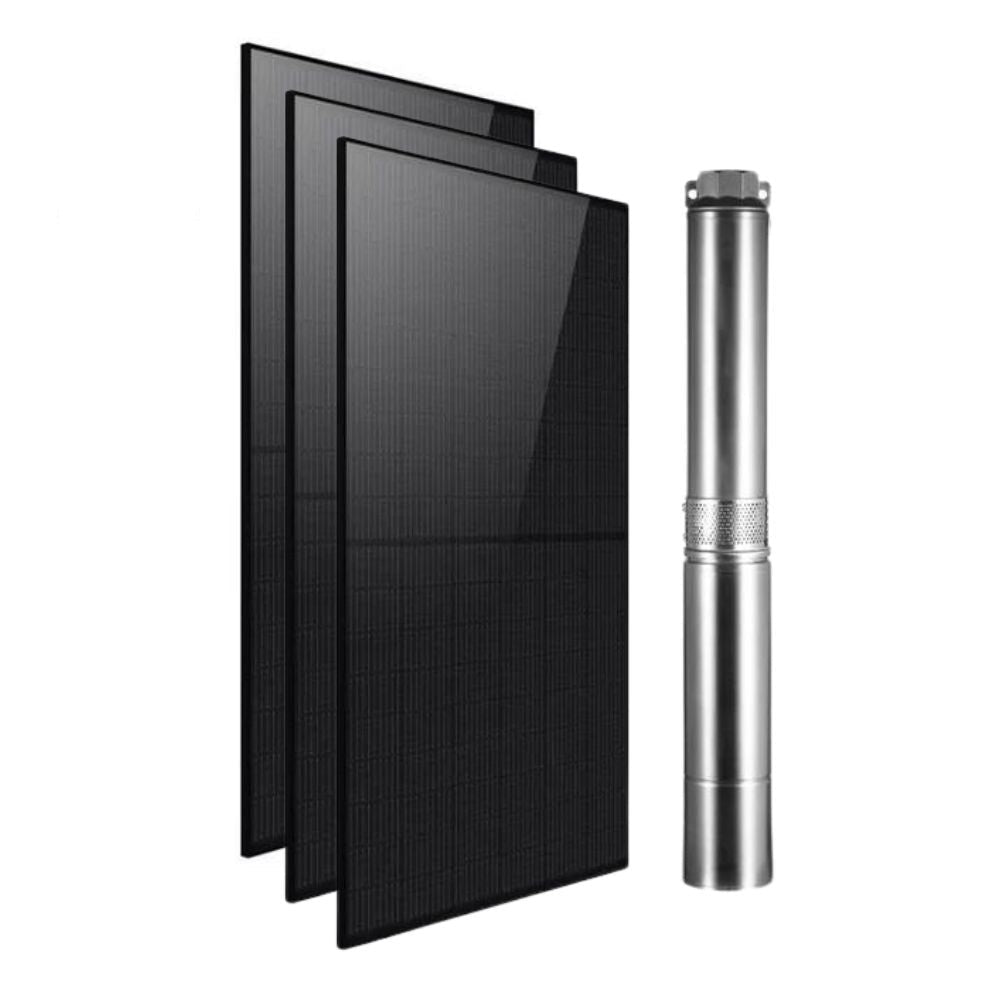

Included in the Kit
- 1 × 1.61 HP Solar DC Submersible Pump
- 4 × 440W Bifacial Solar Panels
- 2 × 10 ft 10 AWG Solar Cables
- 1 × Dual-string DC Disconnect Box (1000V 40A)
- Mounting brackets & racks (optional)
- User manuals + warranty card
