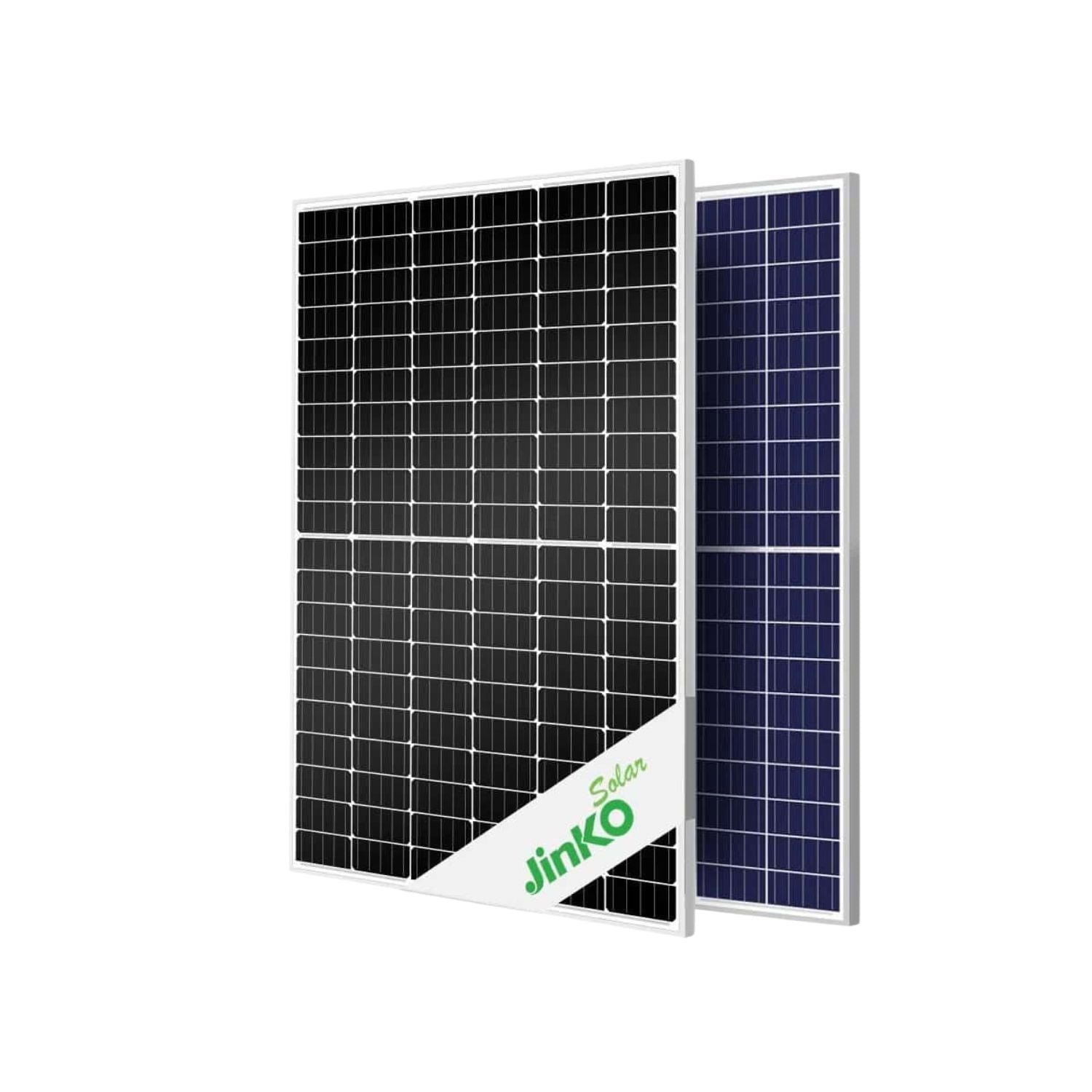

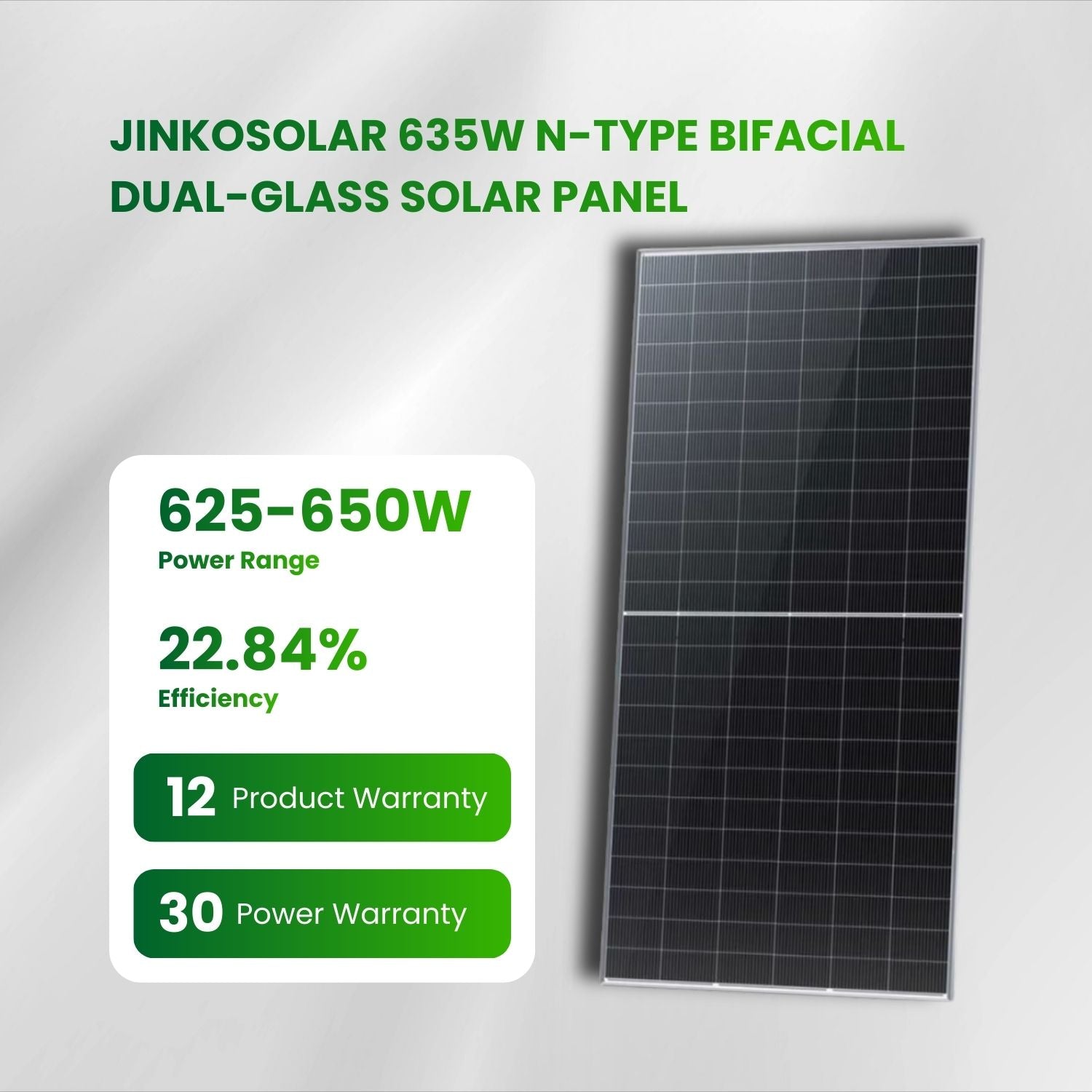

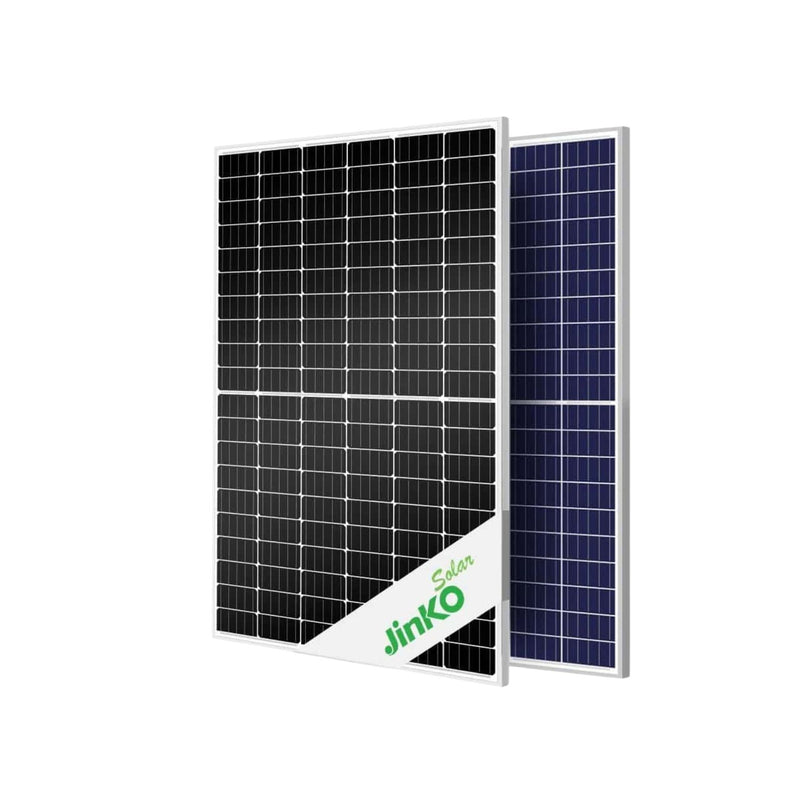

JinkoSolar 635W N-Type Bifacial Dual-Glass Solar Panels -36 Panels/Pallet
Pickup currently unavailable at USA Fulfillment Center
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Speak To a Solar Specialist
solar industry experience
10,000+ American
customers
return policy
Warranty
What it is, and what it is for
JinkoSolar 66HL4M-BDV: 36-module bifacial pallet

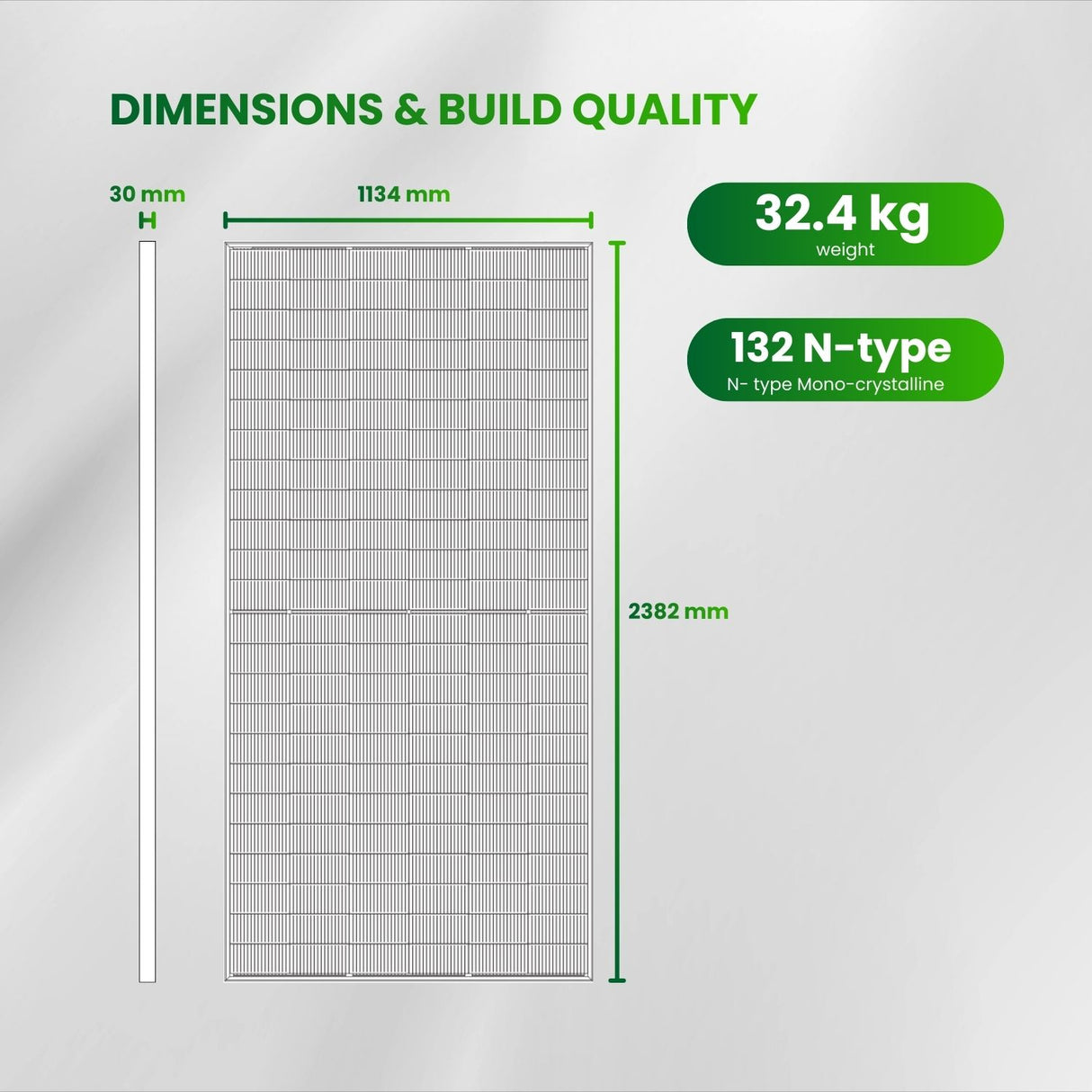

The JinkoSolar 66HL4M-BDV pallet contains 36 N-Type TOPCon modules with a 132-cell, dual-glass bifacial construction. This larger module family measures 2382 × 1134 × 30 mm per panel. Confirm the supplied module’s wattage and nameplate electrical ratings before finalizing string design, inverter matching and project capacity.
📦 Pallet & freight details
- Ships from our Las Vegas, NV warehouse by LTL freight. Free pickup in Las Vegas.
- Flat-rate freight (1 pallet): $499 to NV, CA, AZ, UT, NM, ID and CO; $899 to the rest of the lower 48 states (including DC). Ordering 2+ pallets? We'll confirm combined freight before shipping. Alaska or Hawaii? Ask us for a quote.
- A full pallet weighs about 2,650 lb. Please make sure your site can receive it. Need several pallets or a project quote? Talk to a solar specialist.
Module format
- Manufacturer and family: JinkoSolar 66HL4M-BDV.

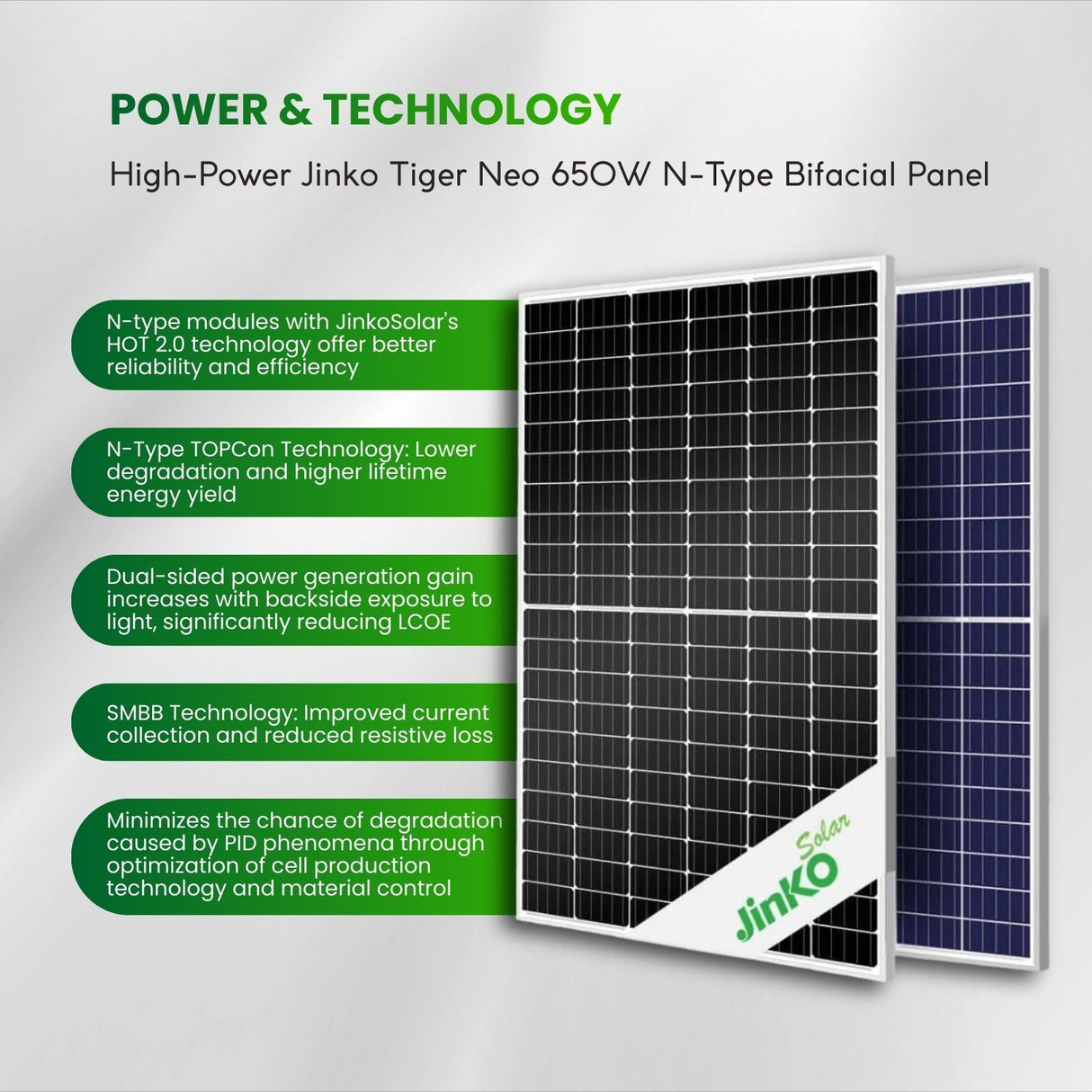

- Construction: N-Type TOPCon, bifacial dual glass, 132 half-cells.
- Quantity: 36 modules per pallet.
Published before you buy. No email required.
Every number, by component.
The figures the manufacturer publishes. The datasheet above is the reference if the two ever differ.
| Specification | Details |
|---|---|
| Manufacturer | JinkoSolar |
| Series / Model | 66HL4M-BDV (JKM650N) |
| Rated Power Output | 650W |
| Cell Technology | N-Type Mono-crystalline (TOPCon, HOT 3.0) |
| Module Type | Bifacial Module with Dual Glass |
| Number of Cells | 132 (66 × 2) |
| Module Efficiency (STC) | 24.06% |
| Bifaciality Coefficient | φVoc: 98% ±5%, φIsc: 80% ±5%, φPmax: 80% ±5% |
| Maximum Power Voltage (Vmp) | 41.58 V |
| Maximum Power Current (Imp) | 15.64 A |
| Open-Circuit Voltage (Voc) | 50.28 V |
| Short-Circuit Current (Isc) | 16.44 A |
| Power Tolerance | 0 ~ +3% |
| Maximum System Voltage | 1500 V DC (IEC) |
| Maximum Series Fuse Rating | 35 A |
| Operating Temperature | -40°C to +70°C |
| Temperature Coefficient (Pmax) | -0.29 % / °C |
| Temperature Coefficient (Voc) | -0.25 % / °C |
| Temperature Coefficient (Isc) | +0.045 % / °C |
| Front Glass | 2.0 mm, Anti-reflection Coating |
| Rear Glass | 2.0 mm, Heat-Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cables | 4.0 mm², (+) 400 mm / (−) 200 mm or customized |
| Mechanical Load (Front / Rear) | 5400 Pa / 2400 Pa |
| Dimensions (L × W × H) | 2382 × 1134 × 30 mm |
| Weight | 32.4 kg |
| Protection Class | Class II |
| Fire Rating | IEC Fire Type Class C |
| Certifications | IEC 61215 / IEC 61730 / UL 61730 / IEC 61701 / IEC 62716 |
| Product Warranty | 12 Years |
| Linear Power Warranty | 30 Years (1% first year, 0.40% annual degradation) |
| Packaging | 36 panels per pallet, 720 panels per 40’ HQ container |
