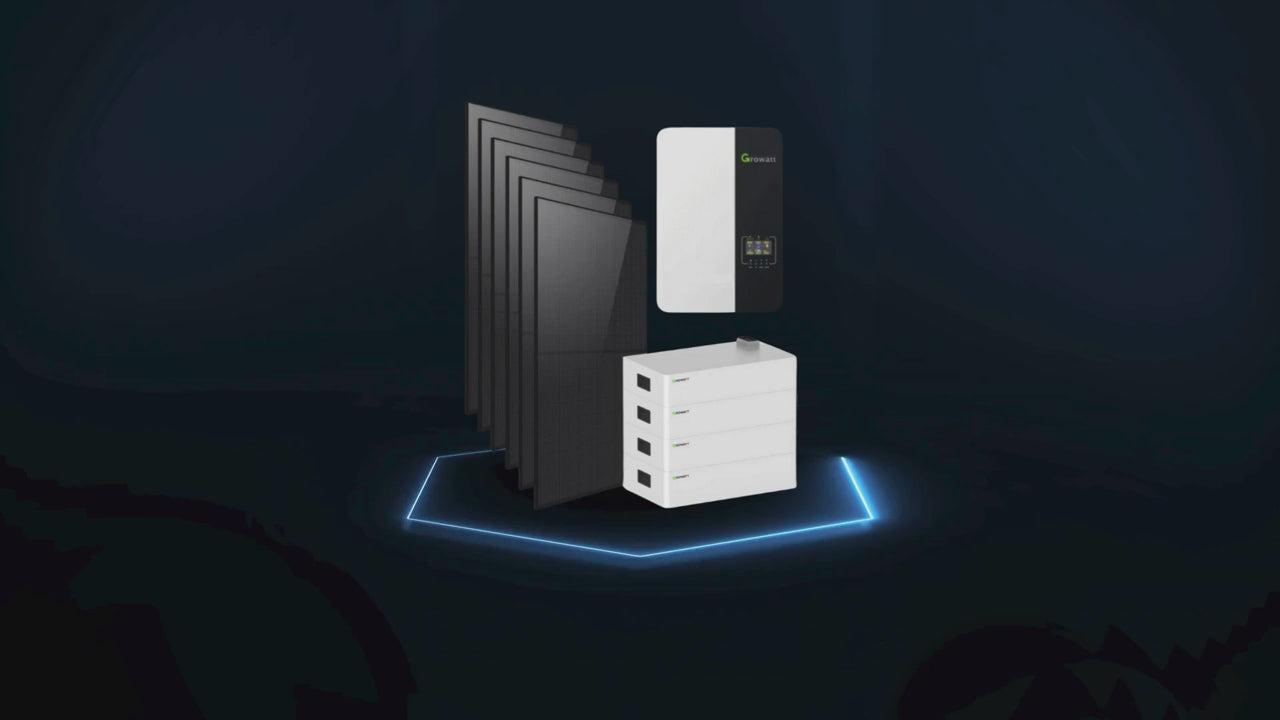

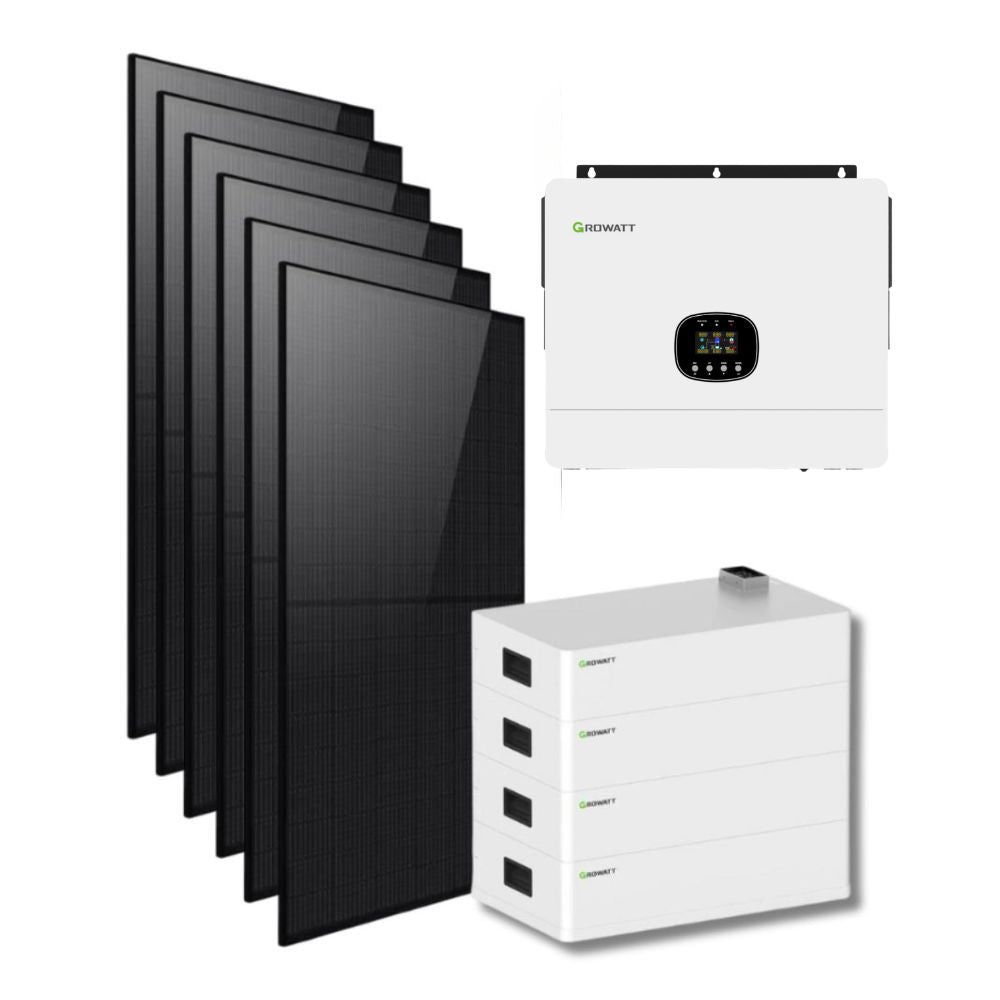

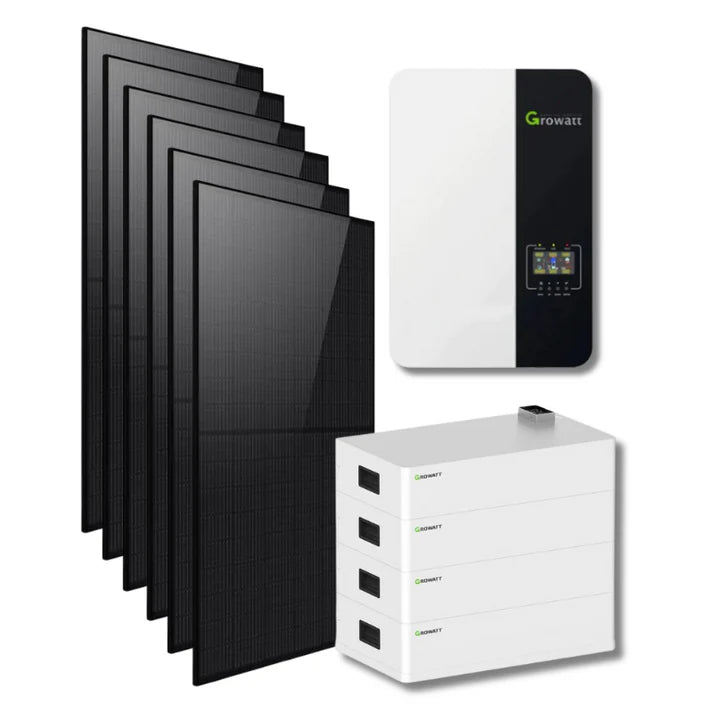

6 KW Split phase 120/240Vac Off-Grid Solar System
- Complete Solution: 6000W inverter, 2x 5kW batteries, and 2400W solar panels.
- Ample Storage: 10kW total battery capacity for power supply and backup.
- Efficient Harvesting: 2400W solar panel array for maximum energy capture.
- Powerful Inverter: 6000W inverter for reliable energy conversion.
- Modular System: Expandable battery capacity as needs grow.
- Durable Components: Built to withstand environmental challenges.
- Easy Installation: Includes all necessary setup components.
- Smart Management: WIFI/GPRS monitoring and control. (WIFI Module Included)
- Long System Life: Durable panels and batteries with warranties.
- Eco-friendly: Reduces fossil fuel reliance and carbon emissions.
- Expandable: Accommodates additional panels or batteries.
- All-Weather Performance: Performs under diverse weather conditions.
6 KW Split phase 120/240Vac Off-Grid Solar System is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Free Shipping
Free Shipping
Orders Over $100? Shipping's On Us!
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Lifetime Customer Support
Lifetime Customer Support
Endless Support, Because You Matter.
Description
Description
A comprehensive and powerful solution for residential solar energy needs. This robust system combines the efficiency of the Growatt Off-Grid Storage Inverter SPF 6000T DVM-US MPV, the reliability of the Growatt 2X AXE 5.0L-C1 5kW Battery, and the high-performance 2400W Rigid Solar Panels to provide an unrivaled off-grid experience. With a power capability of up to 10kW, this system is designed to meet the energy demands of most residential homes.
Engineered for seamless integration, the system ensures that your home can run independently of the grid, whether as a primary power source or as a backup during outages. It's an ideal setup for environmentally conscious homeowners looking to reduce their carbon footprint and harness the power of the sun.
Product Features

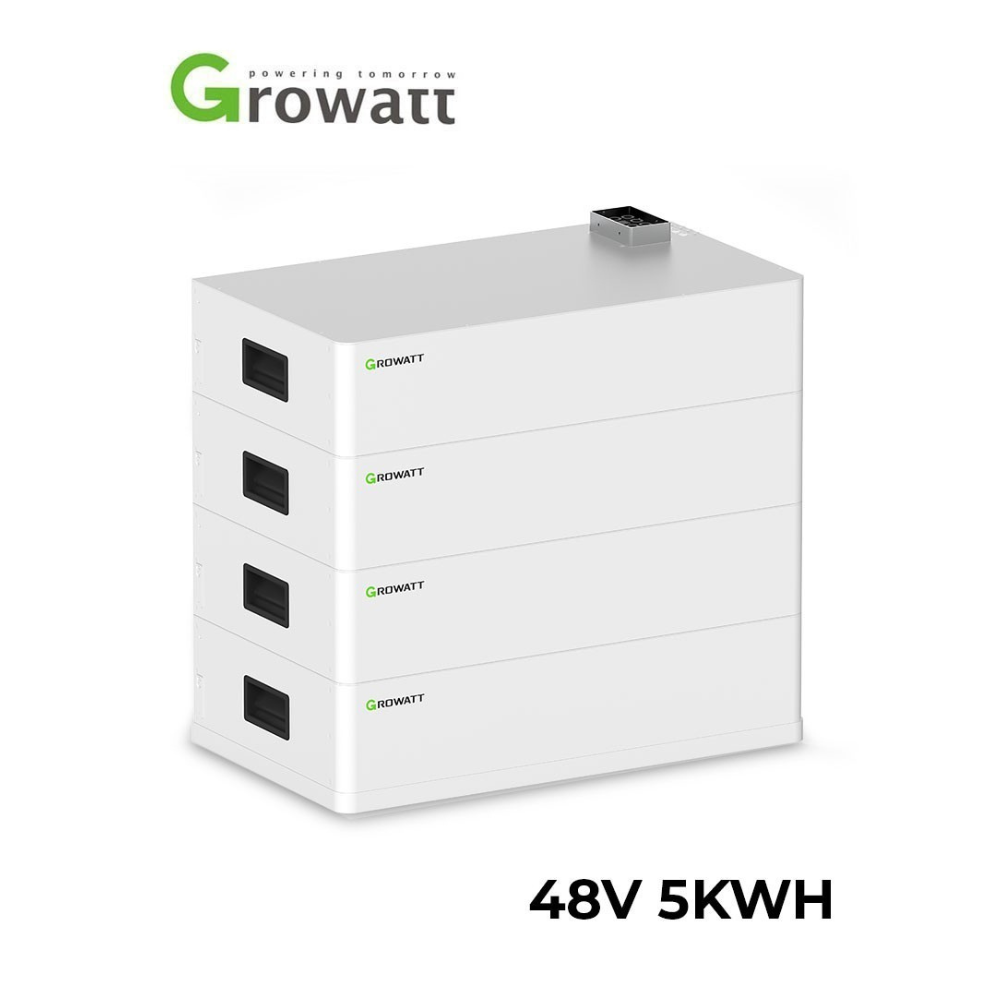

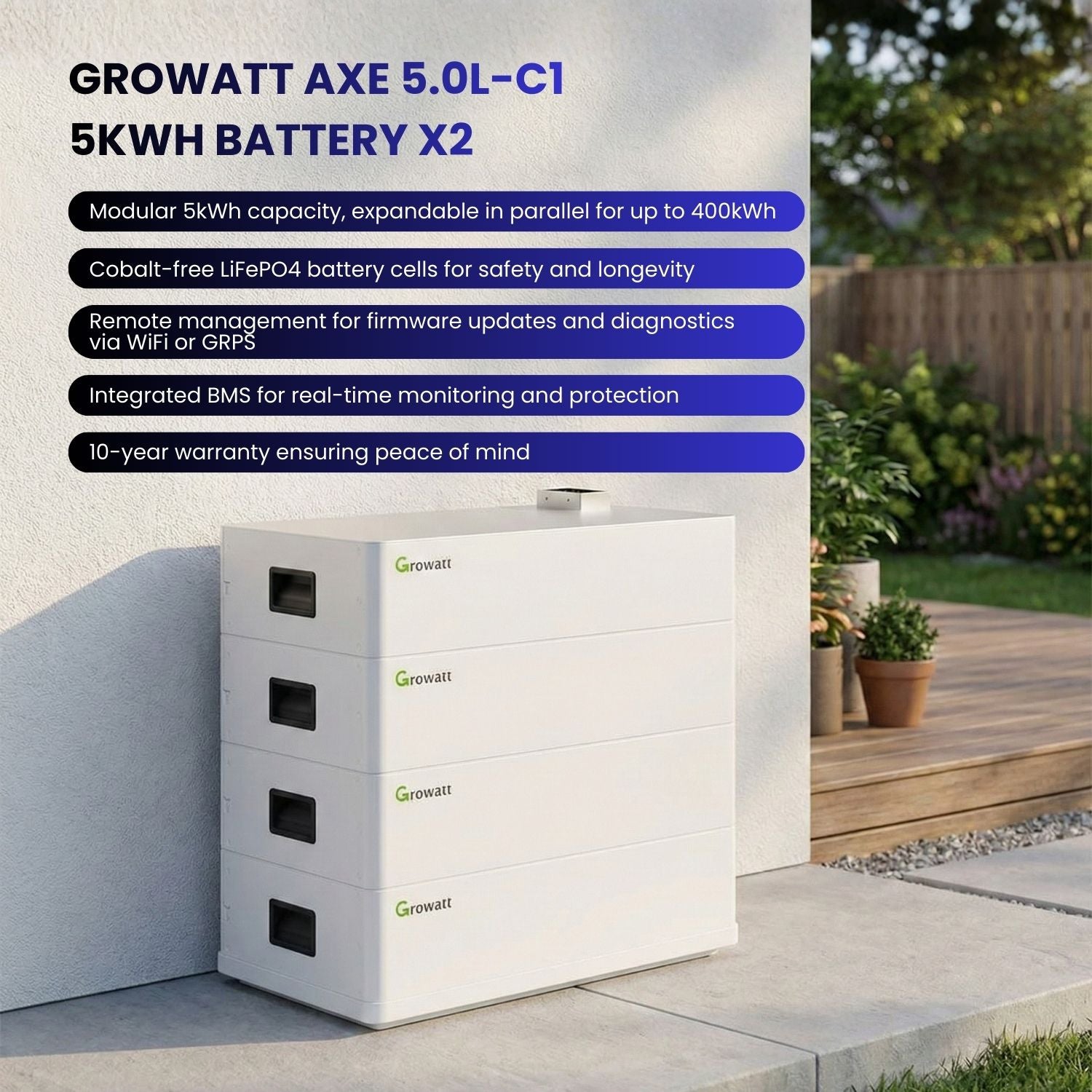

Growatt AXE 5.0L-C1 5kW Battery (x2):
- Modular 5kWh capacity, expandable in parallel for up to 400kWh
- Cobalt-free LiFePO4 battery cells for safety and longevity

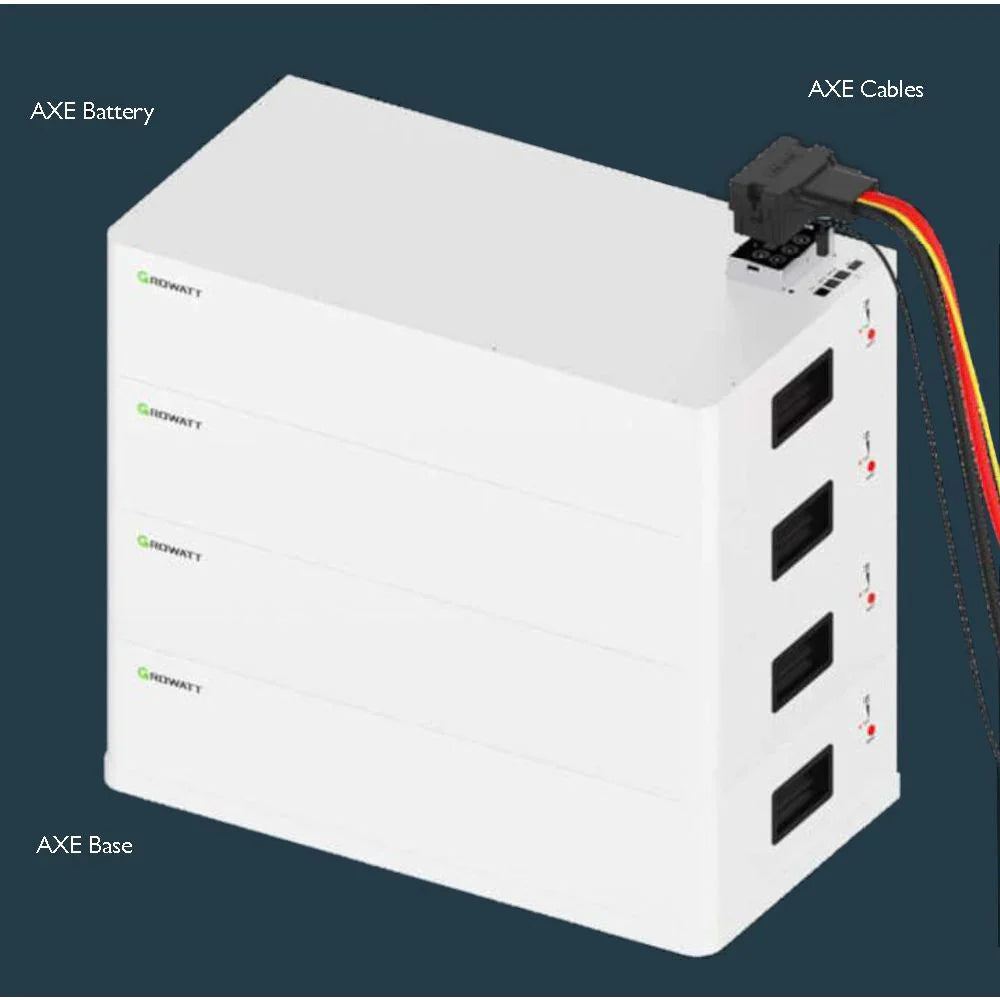

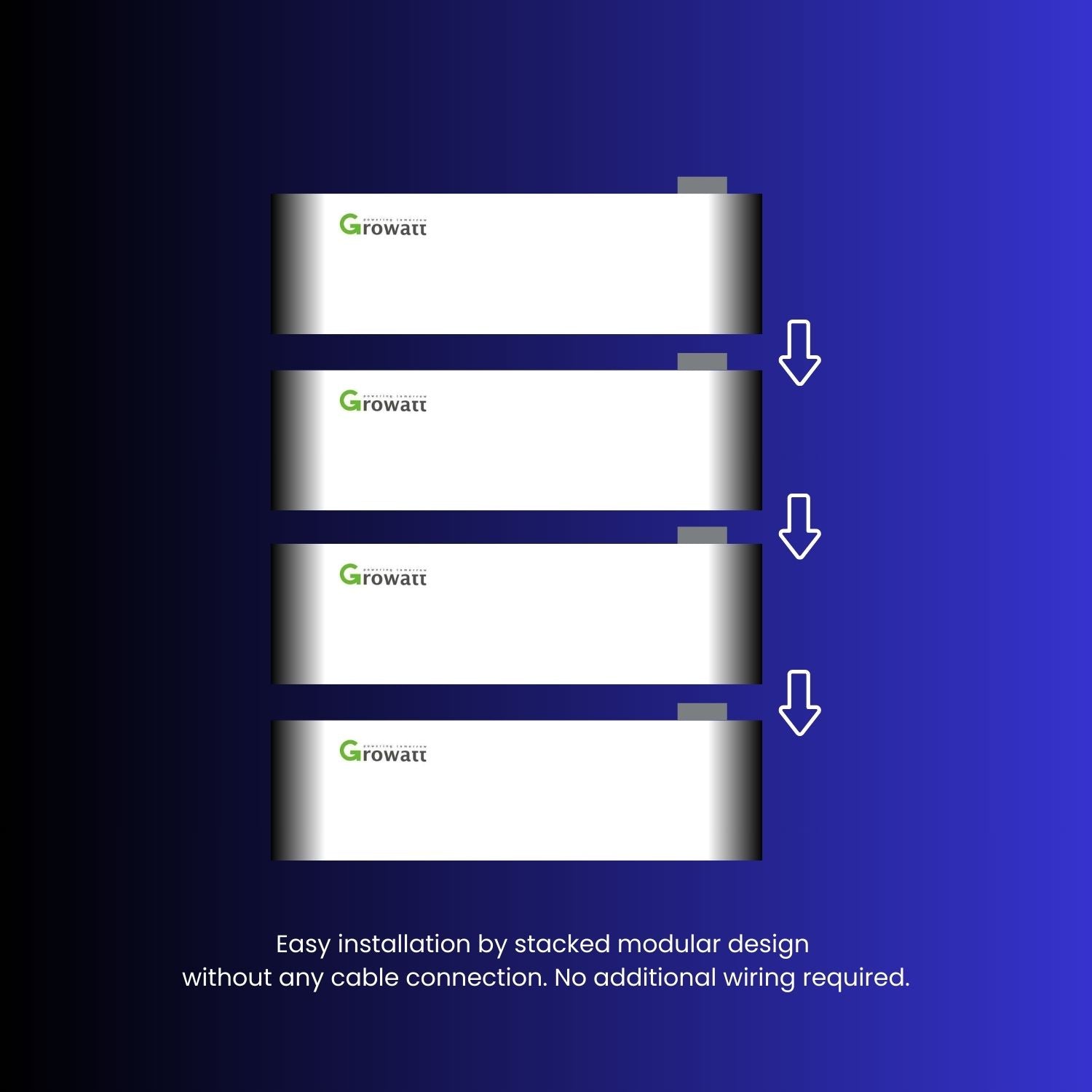

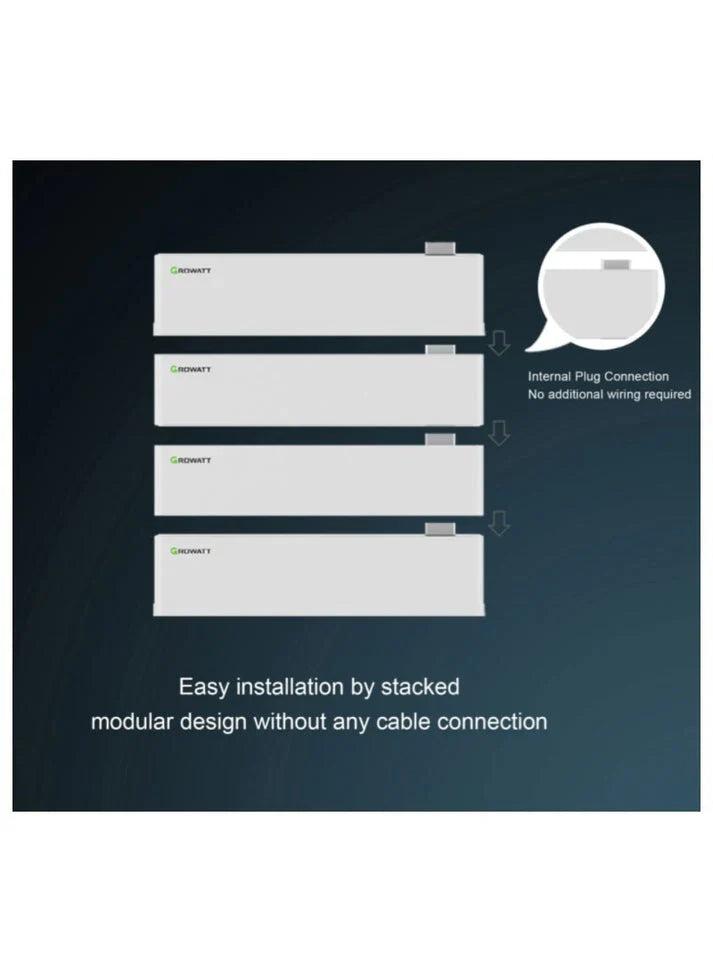

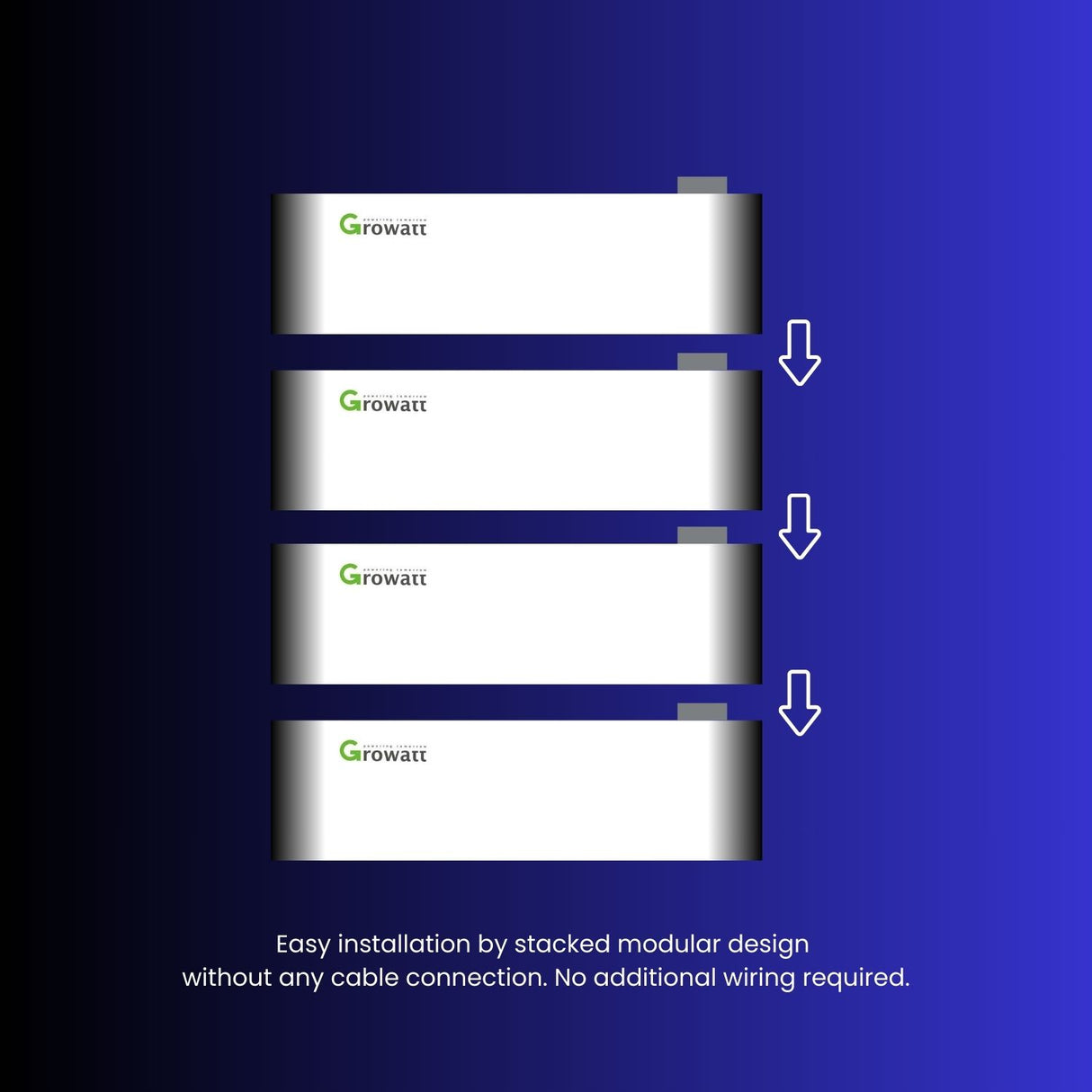

- Quick, cable-free stacking installation
- Remote management for firmware updates and diagnostics via WiFi or GPRS
- Integrated BMS for real-time monitoring and protection
- 10-year warranty ensuring peace of mind

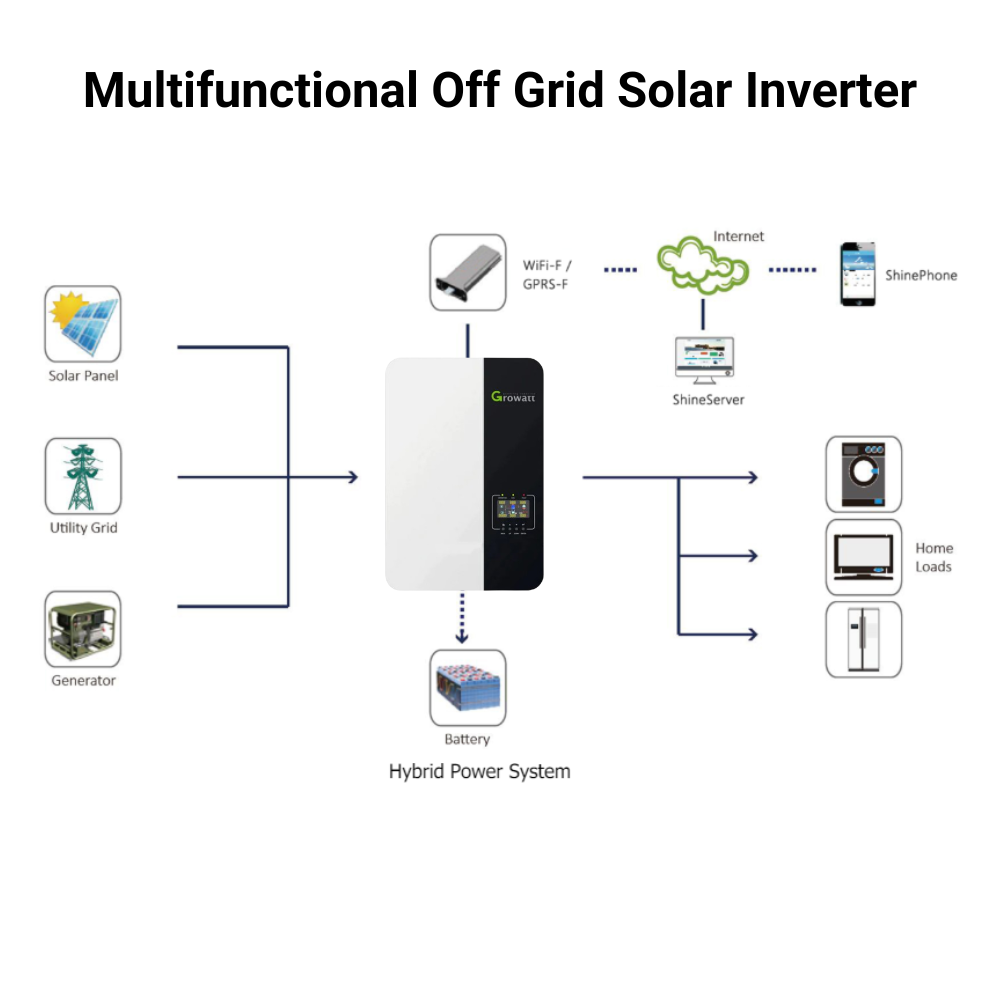

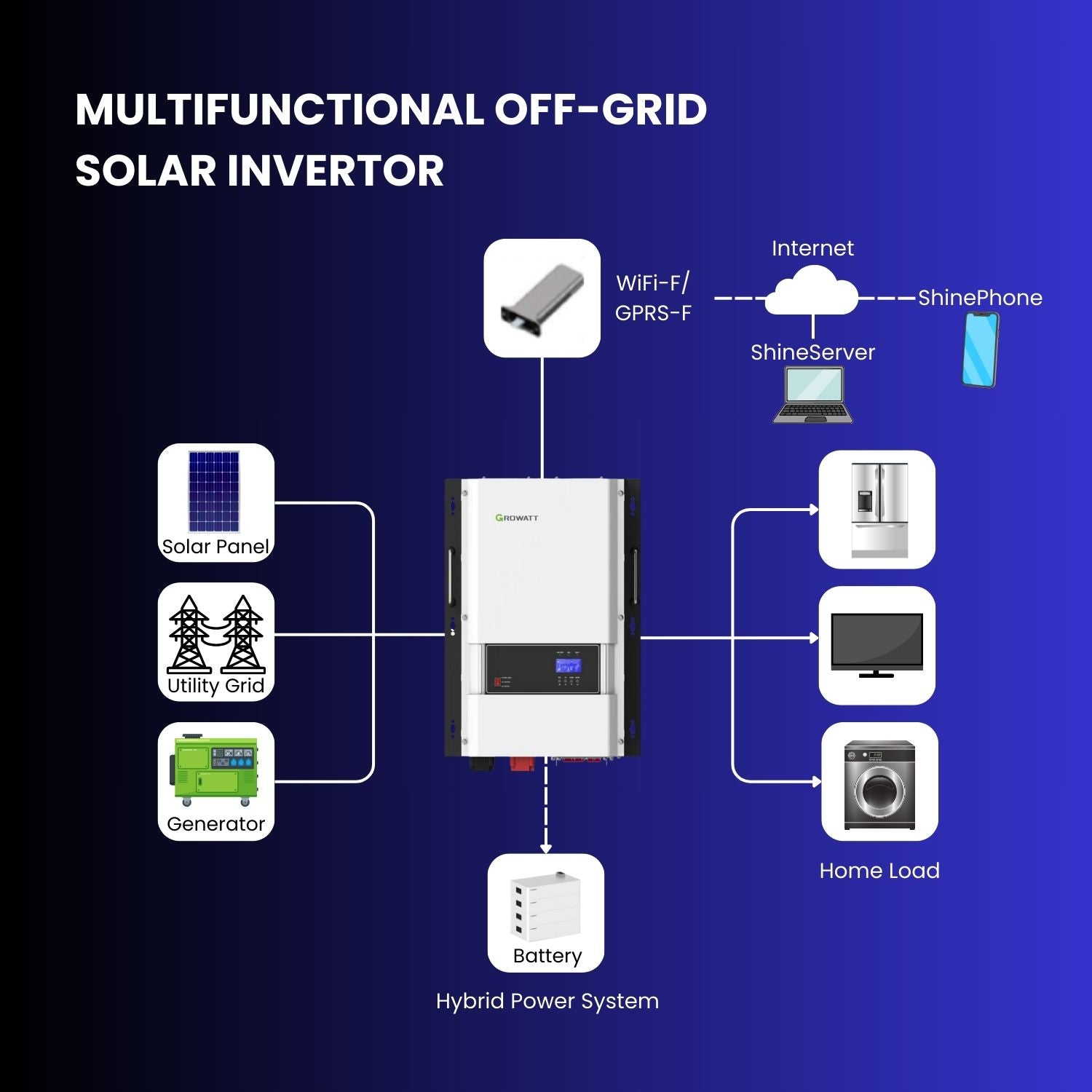

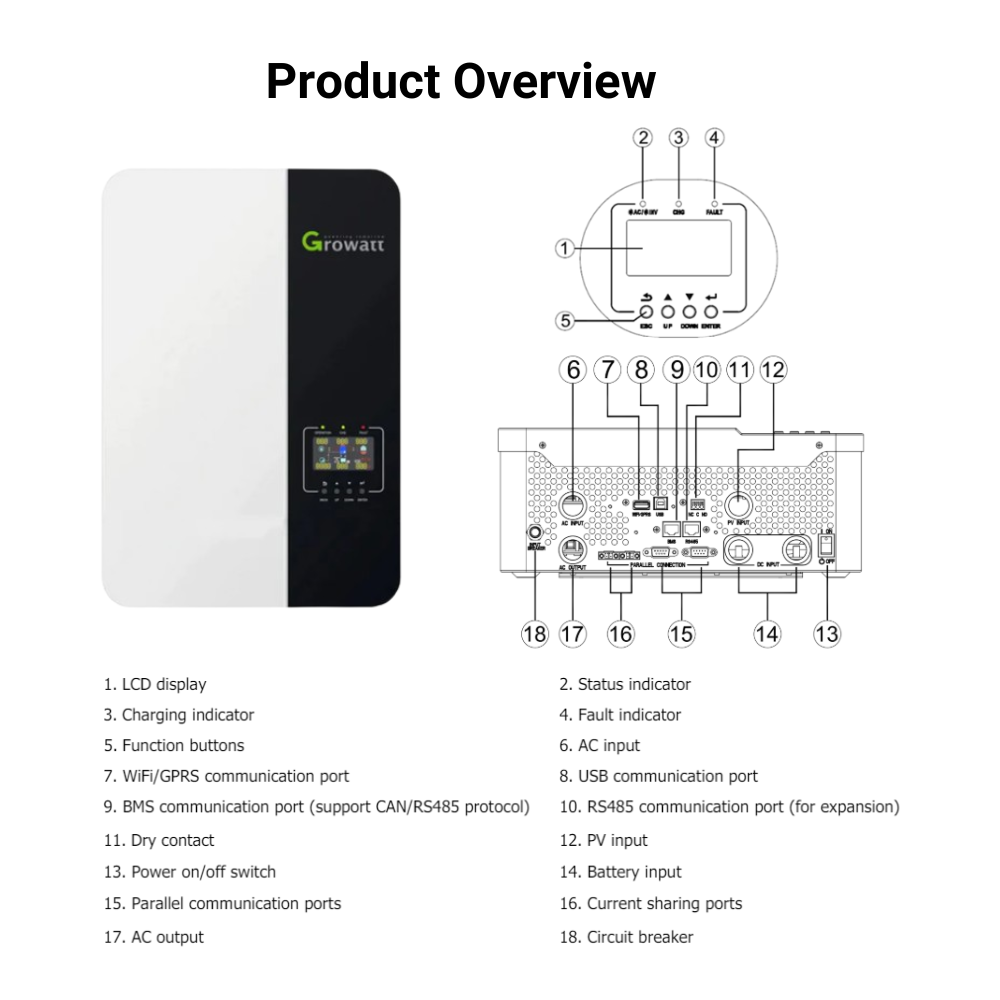

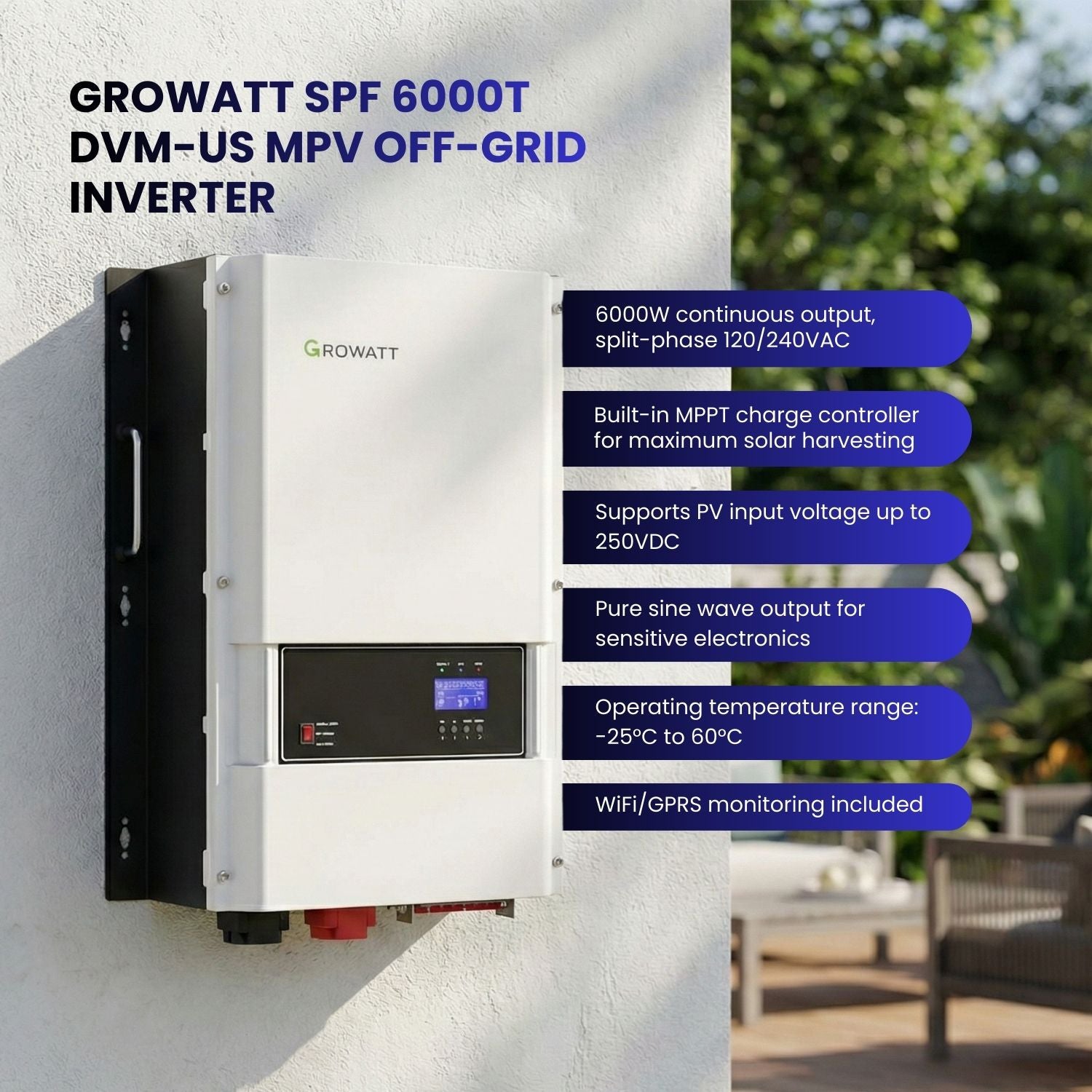

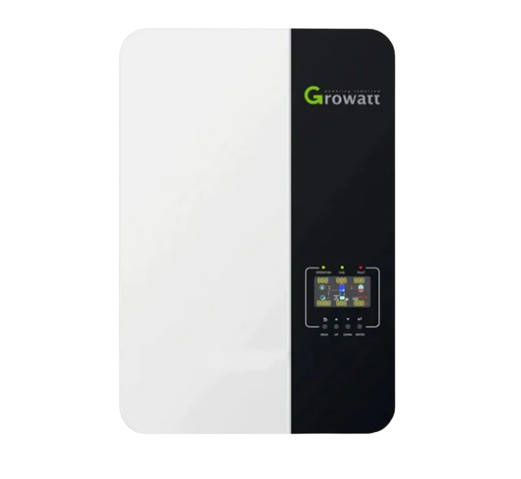

Growatt SPF 6000T DVM-US MPV Inverter:
- Robust power output, supporting both residential and commercial energy needs
- Integrated MPPT technology ensures maximum efficiency in solar energy harvesting
- Supports a maximum PV input voltage up to 250VDC, accommodating a broad array of solar panel configurations
- Seamless operation with or without a battery, accommodating diverse energy strategies
- Constructed to operate reliably in environments ranging from 0°C to 50°C, ensuring durability and performance under various conditions
- Smart connectivity via WiFi or GPRS for easy system monitoring and management (WiFi module included)
- Quick transfer switching minimizes downtime during power source transitions
- Pure sine wave output for powering sensitive electronics safely
ROCKSOLAR 200W 12V Rigid Monocrystalline Solar Panel (x12):
- High-efficiency monocrystalline cells for superior performance
- 200W power output per panel with a total array power of 2400W
- Durable aluminum frame and anti-reflective glass for weather resistance
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact on performance
- Over 25 years of service life with a 10-year manufacturer warranty
- Eco-friendly power generation to reduce carbon footprint
With the Growatt Ultimate Home Solar Storage Kit, achieve energy independence, reduce electricity bills, and enjoy the assurance of a reliable power supply. Experience the combined benefits of modern solar technology and battery storage in one seamless package.
SPECIFICATIONS
SPECIFICATIONS

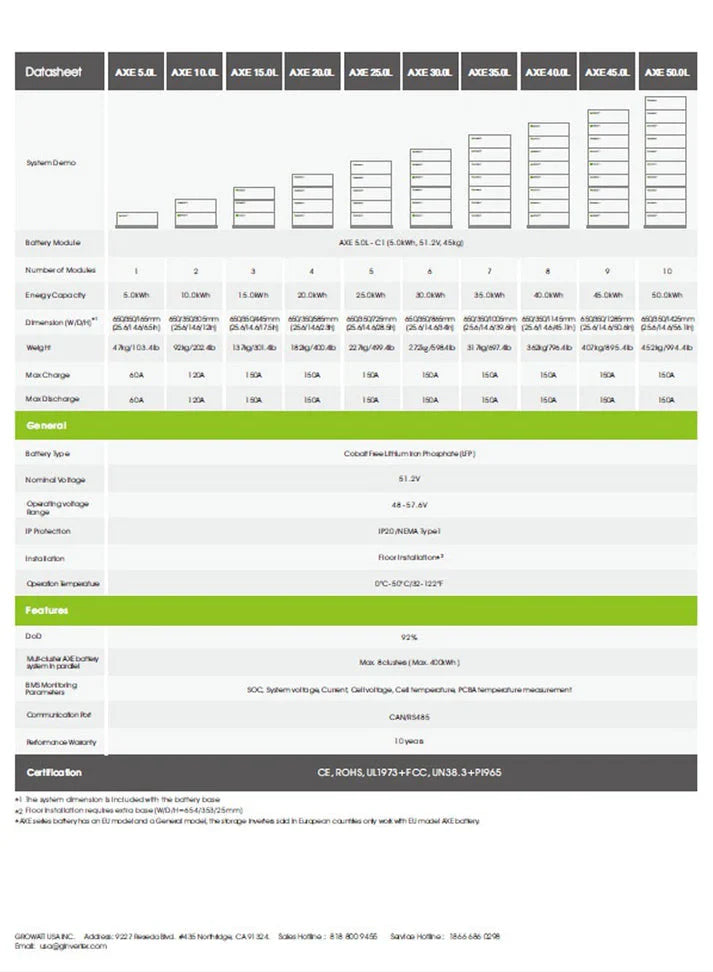

Growatt AXE 5.0L-C1 5kW Battery | Details |
---|---|
Model | Growatt AXE 5.0L-C1 |
Energy Capacity | 5.0kWh |
Max Charge/Discharge Power | 3kW |
Max Charge/Discharge Current | 60A |
Dimensions | 650 x 350 x 165mm (W x D x H) |
Weight | 42kg |
Nominal Voltage | 51.2V |
Warranty | 10 years |
Battery Type | Cobalt Free Lithium Iron Phosphate (LFP) |
Operating Voltage Range | 48 - 57.6V |
Installation | Floor installation |
Operation Temperature | 0°C-50°C/32-122°F |
DoD | 92% |
Parallel Capability | Multi-cluster AXE battery system in parallel, Max. 8 clusters (Max. 400kWh) |
Communication Port | CAN/RS485 |
Performance Warranty | 10 years |
Certification | CE, ROHS, UL1973+FCC, UN38.3 + IP65 |
Growatt Off-Grid Storage SPF 6000T DVM-US | Details |
---|---|
Battery Voltage | 48VDC |
Battery Type | Lithium/Lead-acid |
Inverter Output (Rated Power) | 6KW |
Surge Rating | 18KW |
Waveform | Pure sine wave/ same as input (bypass mode) |
Nominal Output Voltage RMS | 104-110-115-120/208-220-230-240VAC(optional) |
Output Frequency | 50Hz/60Hz +/-0.5 Hz |
Inverter Efficiency (Peak) | 88% |
Transfer Time | 10ms |
Solar Charger (Maximum PV Charge Current) | 80A |
Maximum PV Array Power | 5000W |
AC Input Voltage | 240VAC |
Max. Charging Current | 120A |
Protection Degree | IP20 |
Dimensions (W/H/D) | 360/540/218mm |
Weight | 52kg |
Operating Environment (Temperature Range) | 0°C to 50°C |
Warranty | Complies with UL STD.1741, CSA STD CSA C22.2 No.107.1 |
ROCKSOLAR Black Diamond 200W 12V Monocrystalline Rigid Solar Panel | Details |
---|---|
Panel Type | Monocrystalline |
Power Output | 200W |
System Voltage | 12V |
Cell Efficiency | 20-22% |
Frame Material | Aluminum |
Dimensions | 1480mm x 670mm |
Weight | approx. 25-30 lbs |
Operating Temperature | -40°C to +85°C |
Waterproof Rating | IP65 |
Front Glass | High light transmittance, low-iron tempered glass |
Bypass Diodes | Integrated |
Connectors | MC4 |
Cable Length | Varies depending on the brand (approx. 3-6 ft) |
Mounting Hole Locations | Pre-drilled |
Service Life | 25 years or more |
Warranty | 10 years |
