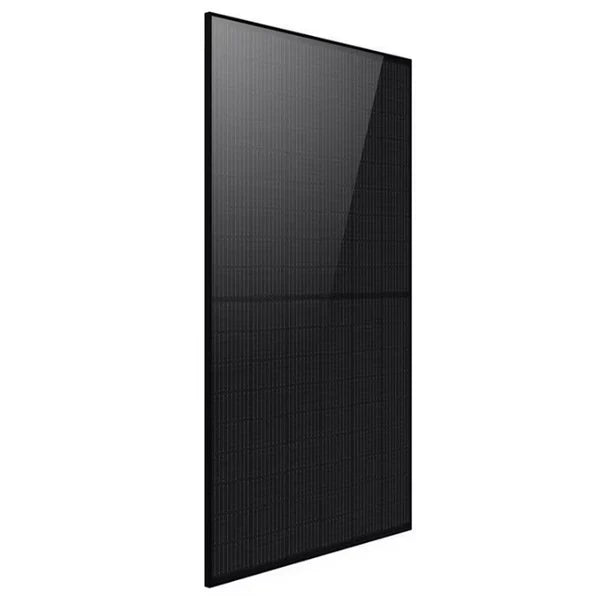

Matesolar 430W N-Type Bifacial TOPCon all black Solar Panel ($0.38/W)

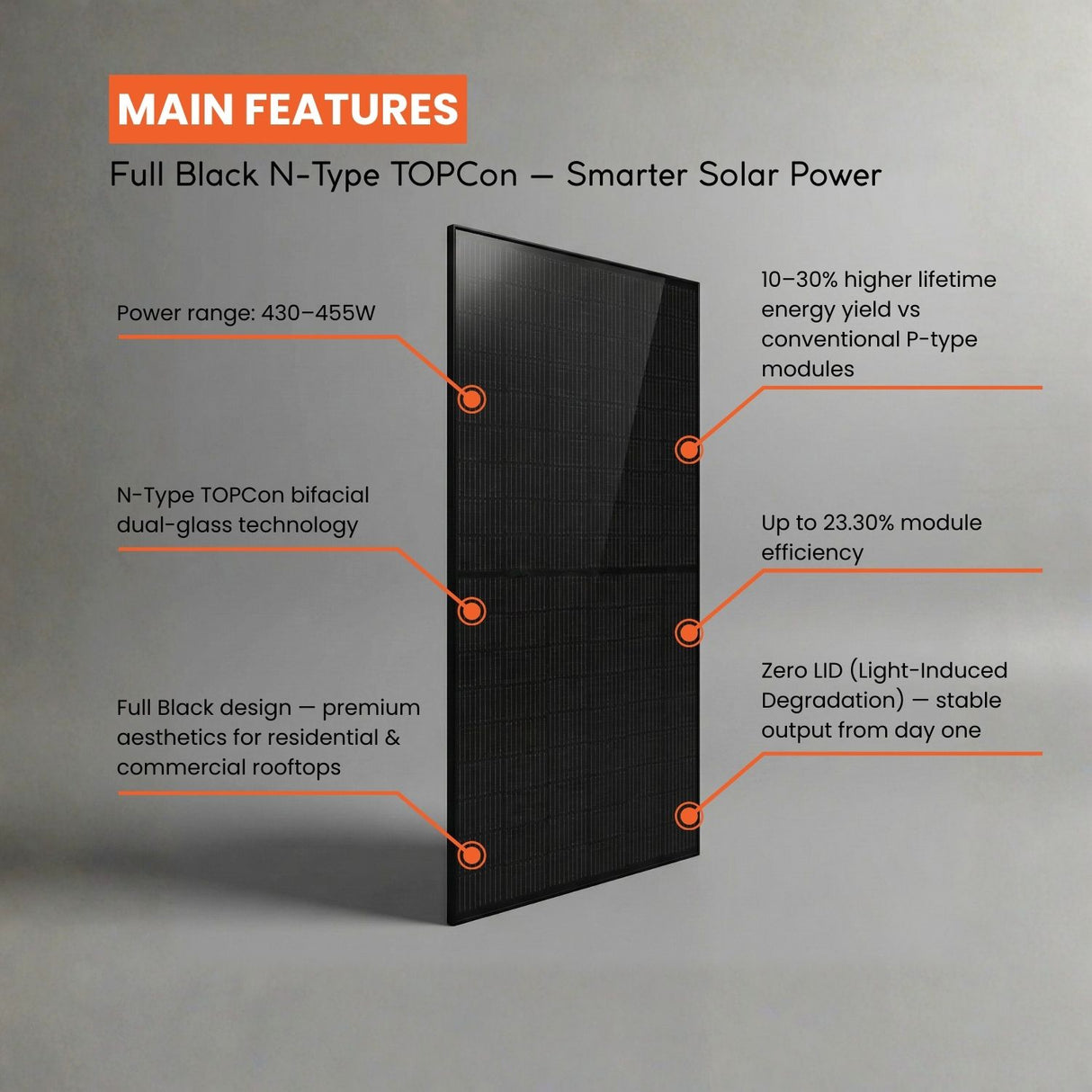

- 430–455W N-Type TOPCon solar panel
- Up to 23.30% module efficiency
- Full black bifacial dual-glass design
- 10–30% additional rear-side energy gain
- Zero LID for long-term performance
- Excellent weak-light response
- Low temperature coefficient: −0.29%/°C
- High durability with 5400 Pa load rating
- 1500V system compatibility, IP68 junction box
- 25-year product warranty + 30-year power warranty
Matesolar 430W N-Type Bifacial TOPCon all black Solar Panel ($0.38/W) is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
Matesolar 430W N-Type Bifacial TOPCon all black Solar Panel ($0.38/W)
All Black Bifacial
Better Weak Illumination Response
Description
Description
The Mate Solar MT5-Pro MS-54H 430–455W is a high-efficiency N-Type TOPCon bifacial solar module designed to deliver superior energy yield, long-term reliability, and premium aesthetics. Featuring a full-black design and advanced dual-glass construction, this module is ideal for residential rooftops, commercial installations, and projects where performance and appearance are equally important.

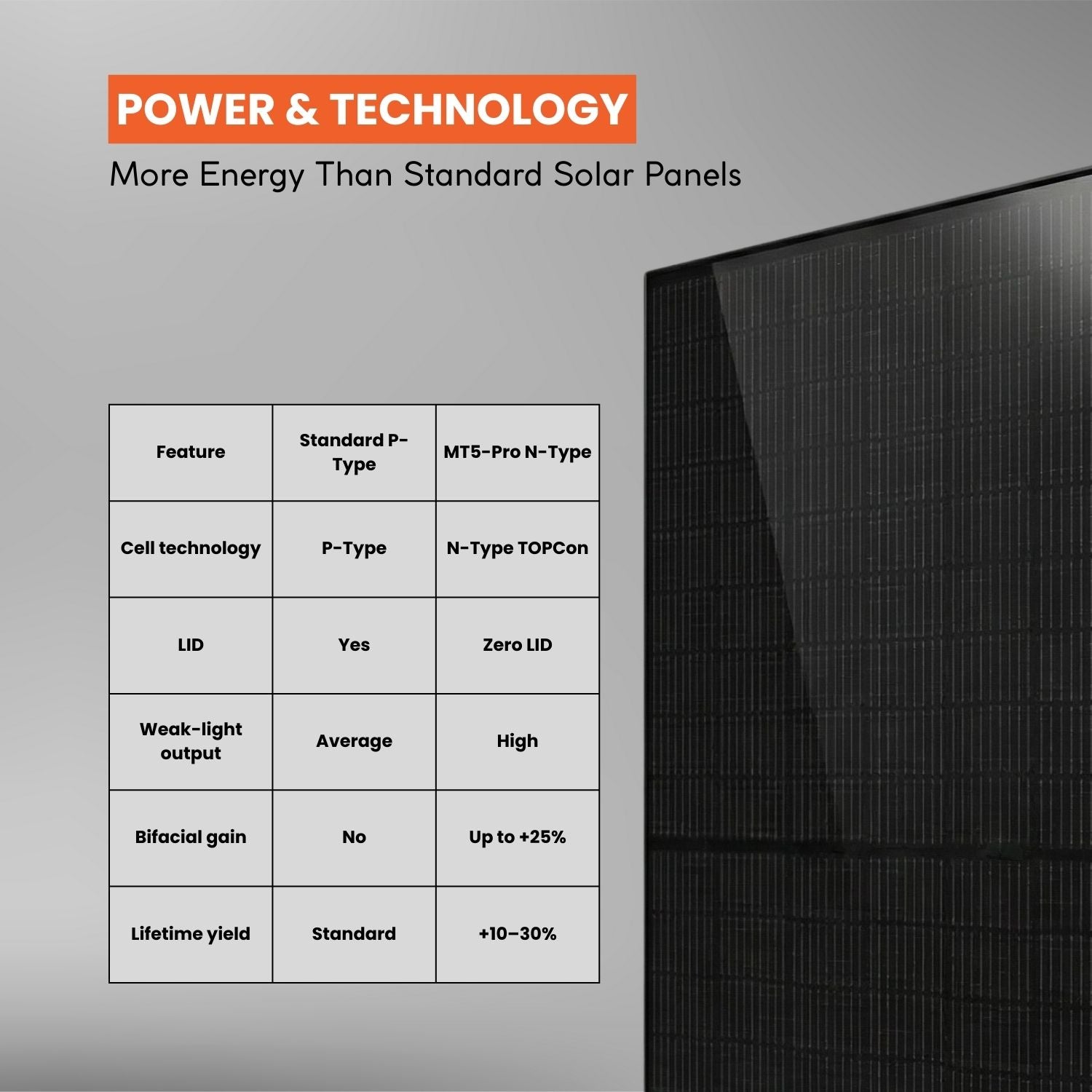

Built with N-Type monocrystalline TOPCon cells, the MT5-Pro series offers zero light-induced degradation (LID), ensuring higher energy production throughout its lifetime compared to conventional P-type modules. With a maximum module efficiency of up to 23.30%, it maximizes power output even in limited installation spaces.
The bifacial dual-glass structure allows the module to generate power from both the front and rear sides, delivering 10–30% additional energy gain depending on installation conditions. Advanced S-TOPCon 2.0 cell technology provides full electrical isolation, zero leakage current, and enhanced safety—making it especially suitable for rooftop applications.
Designed for real-world performance, the MT5-Pro module delivers excellent weak-light response in cloudy or foggy conditions and maintains stable output in high temperatures thanks to its low temperature coefficient (−0.29%/°C). The robust mechanical design is certified to withstand 5400 Pa mechanical load, ensuring durability in harsh weather environments.
Backed by a 25-year product warranty and an industry-leading 30-year linear power output warranty, the Mate Solar MT5-Pro MS-54H offers long-term energy security, high return on investment, and dependable performance over decades.
SPECIFICATIONS
SPECIFICATIONS
Electrical Characteristics (STC)
- Module Type: MS-54H
- Maximum Power (Pmax): 430W
- Open Circuit Voltage (Voc): 38.95V
- Short Circuit Current (Isc): 13.73A
- Voltage at Maximum Power (Vmpp): 32.38V
- Current at Maximum Power (Impp): 13.28A
- Module Efficiency: 22.02%
Mechanical Parameters
- Solar Cells: N-type Mono
- No. of Cells: 108 (6×18)
- Dimensions: 1722 × 1134 × 30 mm
- Weight: 21.5 kg
- Glass: 2.0 mm coated semi-tempered (front), 2.0 mm semi-tempered (back)
- Frame: Black anodized aluminum alloy
- Junction Box: IP68 (3 bypass diodes)
- Output Cables: 4mm², 300 mm (+/–), customizable
- Connectors: MC4 compatible
- Mechanical Load: 5400 Pa
- Packaging: 36 pcs/box, 72 pcs/20GP, 936 pcs/40HQ
Operating Characteristics
- Operating Temperature: −40°C to +85°C
- Maximum System Voltage: 1500V DC
- Maximum Series Fuse Rating: 30A
- Power Tolerance: 0 ~ +5W
Temperature Characteristics
- NOCT: 45 ± 2°C
- Temp. Coefficient of Pmax: −0.29%/°C
- Temp. Coefficient of Voc: −0.24%/°C
- Temp. Coefficient of Isc: +0.045%/°C
