JinkoSolar 635W N-Type Bifacial Dual-Glass Solar Panels $0.385/W 36 Panels/Pallet
- Full Pallet Pack: 36 × JinkoSolar 66HL4M-BDV 650W panels
- Total Pallet Power: 23.4 kW (650W × 36)
- N-Type TOPCon: High efficiency + lower long-term degradation
- Bifacial Dual-Glass: Extra rear-side energy gain (site dependent)
- Utility-Ready: Designed for large-scale solar farms & industrial projects
- Heavy-Duty Build: High mechanical load resistance for harsh conditions
- Long Warranty: 12-year product + 30-year linear power warranty
JinkoSolar 635W N-Type Bifacial Dual-Glass Solar Panels $0.385/W 36 Panels/Pallet is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
JinkoSolar 635W N-Type Bifacial Dual-Glass Solar Panels $0.385/W 36...
Description
Description
The JinkoSolar 66HL4M-BDV 635W Full Pallet includes 36 premium N-Type bifacial dual-glass solar panels, engineered for utility-scale and large commercial installations where maximum power density and long-term reliability matter. Built with TOPCon cell technology and dual-glass bifacial construction, these modules deliver high efficiency and strong rear-side energy gains—helping reduce BOS costs and improve project ROI.
Each pallet provides a combined output of 22.9kW (635W × 36 panels), making it a cost-effective bulk option for EPCs, installers, and large solar procurement. The panels are factory-palletized for safer transportation and streamlined site handling, with rugged mechanical load capability for demanding environments like deserts, coastal zones, and high-snow regions.
SPECIFICATIONS
SPECIFICATIONS
| Specification | Details |
|---|---|
| Manufacturer | JinkoSolar |
| Series / Model | 66HL4M-BDV (JKM650N) |
| Rated Power Output | 650W |
| Cell Technology | N-Type Mono-crystalline (TOPCon, HOT 3.0) |
| Module Type | Bifacial Module with Dual Glass |
| Number of Cells | 132 (66 × 2) |
| Module Efficiency (STC) | 24.06% |
| Bifaciality Coefficient | φVoc: 98% ±5%, φIsc: 80% ±5%, φPmax: 80% ±5% |
| Maximum Power Voltage (Vmp) | 41.58 V |
| Maximum Power Current (Imp) | 15.64 A |
| Open-Circuit Voltage (Voc) | 50.28 V |
| Short-Circuit Current (Isc) | 16.44 A |
| Power Tolerance | 0 ~ +3% |
| Maximum System Voltage | 1500 V DC (IEC) |
| Maximum Series Fuse Rating | 35 A |
| Operating Temperature | -40°C to +70°C |
| Temperature Coefficient (Pmax) | -0.29 % / °C |
| Temperature Coefficient (Voc) | -0.25 % / °C |
| Temperature Coefficient (Isc) | +0.045 % / °C |
| Front Glass | 2.0 mm, Anti-reflection Coating |
| Rear Glass | 2.0 mm, Heat-Strengthened Glass |
| Frame | Anodized Aluminium Alloy |
| Junction Box | IP68 Rated |
| Output Cables | 4.0 mm², (+) 400 mm / (−) 200 mm or customized |
| Mechanical Load (Front / Rear) | 5400 Pa / 2400 Pa |

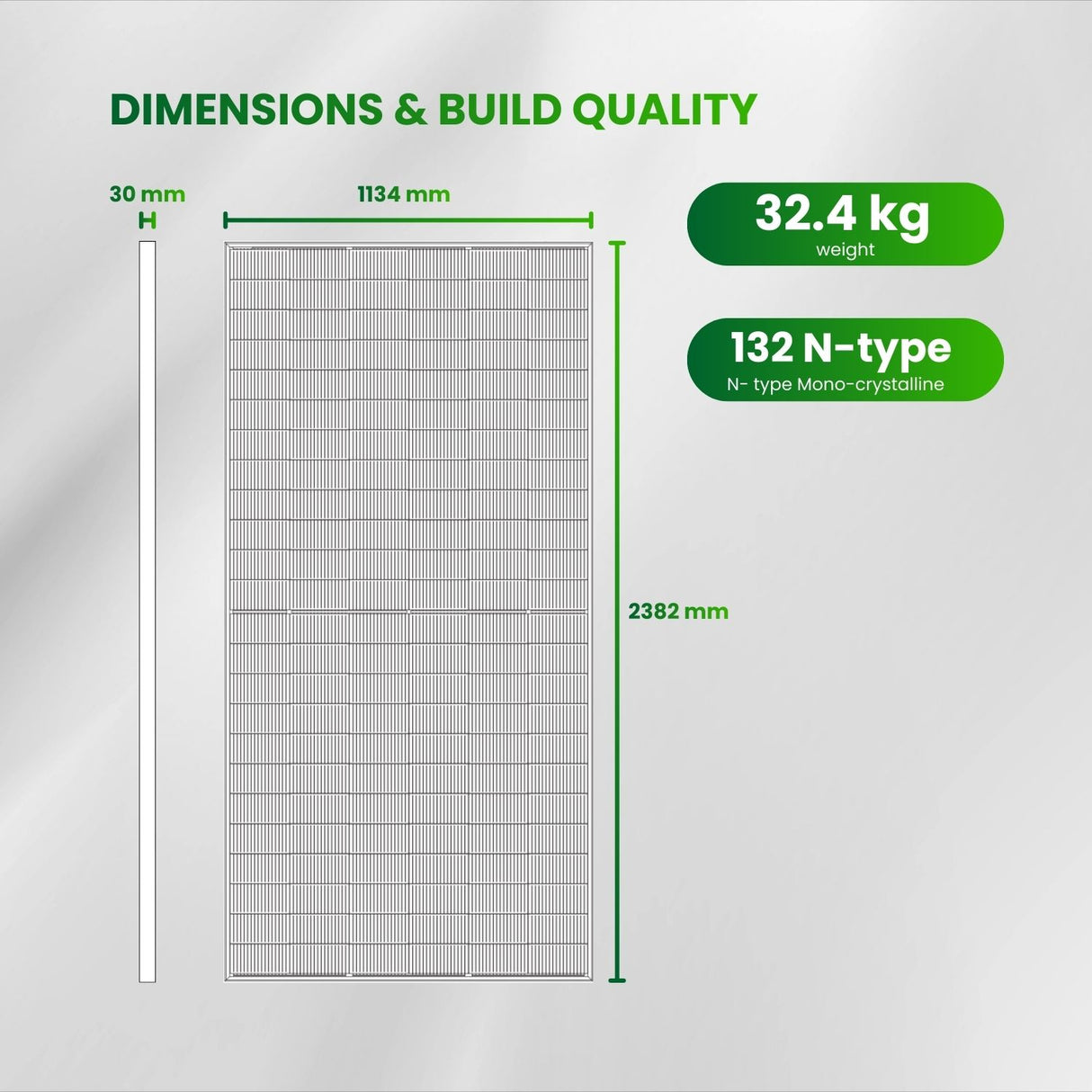

| Dimensions (L × W × H) | 2382 × 1134 × 30 mm |
| Weight | 32.4 kg |
| Protection Class | Class II |
| Fire Rating | IEC Fire Type Class C |
| Certifications | IEC 61215 / IEC 61730 / UL 61730 / IEC 61701 / IEC 62716 |
| Product Warranty | 12 Years |
| Linear Power Warranty | 30 Years (1% first year, 0.40% annual degradation) |
| Packaging | 36 panels per pallet, 720 panels per 40’ HQ container |
