3.5 kW Off-Grid Solar Panel Kit with 2600W Panels
- Comprehensive Solution: Complete setup including inverter, battery, solar panels, and installation gear.
- High-Performance Panels: 2640W total from ROCKSOLAR 6x440W Monocrystalline panels.
- Efficient Inverter: Growatt SPF 3500TL LVM-US for reliable power conversion.
- Durable Construction: Weather-resistant panels with rigid frames and anti-reflective glass.
- Safe and Reliable: Advanced BMS and protective inverter features ensure safety.
- Flexible Installation: Easy setup with pre-drilled holes and stackable battery design.
- Remote Management: WIFI/GPRS monitoring; WIFI Module included.
- Long Lifespan: Panels last over 30 years; 2-year warranty for the inverter.
- Environmental Benefit: Reduces carbon footprint with sustainable energy.
- Scalable System: Expandable with additional batteries or panels as needed.
- All-Weather Performance: Operates effectively under diverse conditions.
3.5 kW Off-Grid Solar Panel Kit with 2600W Panels is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
3.5 kW Off-Grid Solar Panel Kit with 2600W Panels
Description
Description

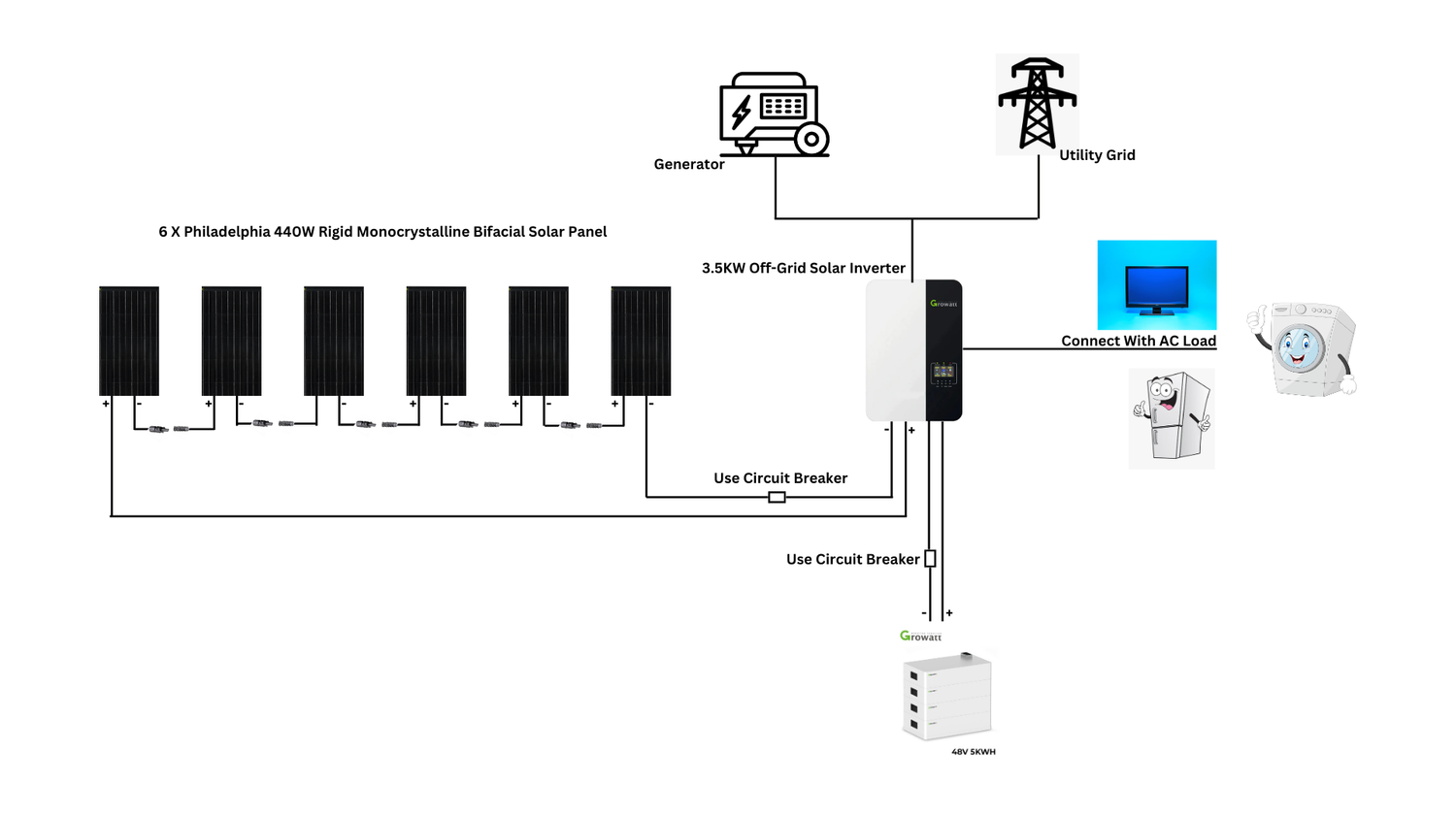

A comprehensive and powerful solution for residential solar energy needs. This robust system combines the efficiency of the Growatt Off-Grid Storage Inverter SPF 3500TL LVM-US, and the high-performance 2640W Rigid Bifacial Solar Panels to provide an unrivaled off-grid experience.
Engineered for seamless integration, the system ensures that your home can run independently of the grid, whether as a primary power source or as a backup during outages. It's an ideal setup for environmentally conscious homeowners looking to reduce their carbon footprint and harness the power of the sun.
Product Features
Growatt Off-Grid Storage Inverter SPF 3500TL LVM-US:
- Highly versatile with 3500W rated power
- Integrated MPPT charge controller for maximum solar efficiency
- Supports parallel operation up to 20kW and Split phase 120/240Vac output with two in parrallel.
- Flexible scheduling for inverter charging and discharging
- Configurable grid or solar input priority and Generator Connection ready
- WIFI/GPRS remote monitoring (WiFi Module included)
ROCKSOLAR 440W Monocrystalline Bifacial Solar Panel (x6):
- High-efficiency monocrystalline cells for superior performance
- 440W power output per panel with a total array power of 2640W
- Durable aluminum frame and anti-reflective glass for weather resistance
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact on performance
- Over 25 years of service life with a 10-year manufacturer warranty
- Eco-friendly power generation to reduce carbon footprint
SPECIFICATIONS
SPECIFICATIONS
| Growatt Off-Grid Storage Inverter SPF 3500TL LVM-US | Details |
|---|---|
| Battery Voltage | 48VDC |
| Battery Type | Lithium/Lead-acid |
| Inverter Output | Rated Power: 3500VA 3500W Parallel Capability: Yes, 6 units maximum AC Voltage Regulation (Battery Mode): 100Vac/110Vac/120Vac @ 50/60Hz Surge Power: 6000VA Efficiency (Peak): 90% Waveform: Pure Sine Wave Transfer Time: 10ms typical, 20ms max |
| Solar Charger | Maximum PV Array Power: 4000W MPPT Range @ Operating Voltage: 120VDC – 225VDC Maximum PV Array Open Circuit Voltage: 280VDC Maximum Solar Charge Current: 80A |
| AC Charger | Charge Current: 40A AC Input Voltage: 120VAC Selectable Voltage Range: 95-140VAC (For Personal Computers); 65-140VAC (For Home Appliances) Frequency Range: 50Hz/60Hz (Auto sensing) |
| Physical | Protection Degree: IP20/NEMA Type1 Dimension (W/H/D): 330/485/135mm Net Weight: 12kg |
| Operating Environment | Humidity: 5% to 95% Relative Humidity (Non-condensing) Operating Temperature: 0°C - 50°C (32°F - 122°F) Storage Temperature: -15°C - 60°C (-5°F - 140°F) |
| Warranty | 2 Years |
| 440W Solar Panel Specification | Details |
|---|---|
| Panel Type | Monocrystalline Bifacial |
| Power Output | 440W |
| System Voltage | 32V |
| Cell Efficiency | 20-22% |
| Frame Material | Aluminum |
| Dimensions | 1722mm x 1134mm x 30mm |
| Weight | Approx. 25-30 lbs |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
| Warranty | 10 years |
