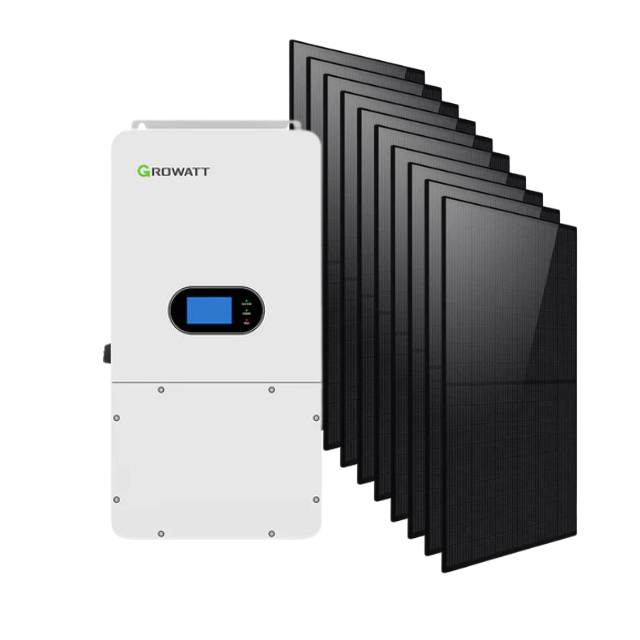

10 kW Off-Grid/Grid tie Solar Panel Kit with 15000W Panels
- Comprehensive Solution: Complete setup including inverter, solar panels, and installation gear.
- High-Performance Panels: 15000W total from ROCKSOLAR 440W Monocrystalline panels.
- Efficient Inverter: Growatt SPH 10000TL-HU-US for reliable power conversion.
- Durable Construction: Weather-resistant panels with rigid frames and anti-reflective glass.
- Safe and Reliable: Advanced BMS and protective inverter features ensure safety.
- Flexible Installation: Easy setup with pre-drilled holes and stackable battery design.
- Remote Management: WIFI/GPRS monitoring; WIFI Module included.
- Long Lifespan: Panels last over 30 years; 10-year warranty for the grid inverter .
- Environmental Benefit: Reduces carbon footprint with sustainable energy.
- Scalable System: Expandable with additional batteries or panels as needed.
- All-Weather Performance: Operates effectively under diverse conditions.
10 kW Off-Grid/Grid tie Solar Panel Kit with 15000W Panels is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Talk to Real Experts Anytime
Talk to Real Experts Anytime
Lifetime tech support from our in-house specialists
Hassle Free Warranty
Hassle Free Warranty
Effortless Warranty for Your Ease.
Unbeatable Value, Guaranteed
Unbeatable Value, Guaranteed
Find it cheaper elsewhere? We'll match it.
10 kW Off-Grid/Grid tie Solar Panel Kit with 15000W Panels
Description
Description
A comprehensive and powerful solution for residential solar energy needs. This robust system combines the efficiency of the Growatt 10kW Hybrid Inverter, and the high-performance 15000W Rigid Bifacial Solar Panels to provide an unrivaled off-grid experience.
Engineered for seamless integration, the system ensures that your home can run independently of the grid, whether as a primary power source or as a backup during outages. It's an ideal setup for environmentally conscious homeowners looking to reduce their carbon footprint and harness the power of the sun.
Product Features
Growatt 10kW Hybrid Inverter:
- 1.5 DC/AC Ratio: Efficient energy conversion with 3 MPPTs.
- 200A Charge/Discharge: High current capability for robust energy management.
- 120V/240V Split AC Output: Versatile output options for diverse electrical setups.
- Fast UPS Transition: UPS function with a quick 10ms switch to backup power.
- Flexible Applications: Suitable for DC-coupled, AC-coupled, and AC-retrofit setups.
- Type II Surge Protection: Ensures system safety on both DC and AC sides.
- Diesel Generator Compatible: Can charge from a diesel generator for extended power options.
- Dual Phase Support: Works with both single phase and split phase applications.
- Lightweight Design: Weighs only 110lbs, making it easy to handle and install.
ROCKSOLAR 440W Monocrystalline Bifacial Solar Panel (x34):
- High-efficiency monocrystalline cells for superior performance
- 440W power output per panel with a total array power of 15000W
- Durable aluminum frame and anti-reflective glass for weather resistance
- Easy installation with pre-drilled mounting holes
- Bypass diodes to minimize shading impact on performance
- Over 25 years of service life with a 10-year manufacturer warranty
- Eco-friendly power generation to reduce carbon footprint
SPECIFICATIONS
SPECIFICATIONS
| Growatt 10kW Hybrid Inverter Specification | Details |
|---|---|
| Maximum DC Input | 15,000W |
| MPPT Voltage Range | 150V - 450V / 370V |
| Number of MPPTs | 3 |
| Maximum Charging and Discharging Current | 200A |
| Continuous Charging and Discharging Power | 10,000W |
| Battery Voltage Range | 40V - 60V |
| AC Output Power | Rated Power: 10,000W Max. Apparent Power: 10,000VA Nominal AC Voltage: 120V/208V, 120V/240V Split |
| Efficiency | Peak: 97.5% MPPT Efficiency: ≥99.5% |
| Cooling | Smart cooling |
| Communication Interfaces | RS485/CAN/USB; Optional: WIFI/4G cellular |
| Protection Devices | Type II Surge Protection (DC and AC sides), AFCI, Anti-islanding, Ground fault monitoring, Grid monitoring, Residual-current monitoring unit |
| Physical | Dimensions (W / H / D): 440/855/256mm Weight: 48.84kg |
| Operating Environment | Temperature: -25°C to +60°C with derating above 45°C Noise Emission: ≤ 30 dB(A) |
| Warranty | 10 Years |
| Compliance | IEEE1547, CA RULE21, RULE14(HECO), UL1741, UL1741SA/SB, CSA C22.2, PREPA, UL1699B, UL1741 CRD, FCC Part15 Class B, Sunspec |
| 440W Solar Panel Specification | Details |
|---|---|
| Panel Type | Monocrystalline Bifacial |
| Power Output | 440W |
| System Voltage | 32V |
| Cell Efficiency | 20-22% |
| Frame Material | Aluminum |
| Dimensions | 1722mm x 1134mm x 30mm |
| Weight | Approx. 25-30 kg |
| Operating Temperature | -40°C to +85°C |
| Waterproof Rating | IP65 |
| Front Glass | High light transmittance, low-iron tempered glass |
| Bypass Diodes | Integrated |
| Connectors | MC4 |
| Cable Length | Varies depending on the brand (approx. 3-6 ft) |
| Mounting Hole Locations | Pre-drilled |
| Service Life | 25 years or more |
| Warranty | 10 years |
